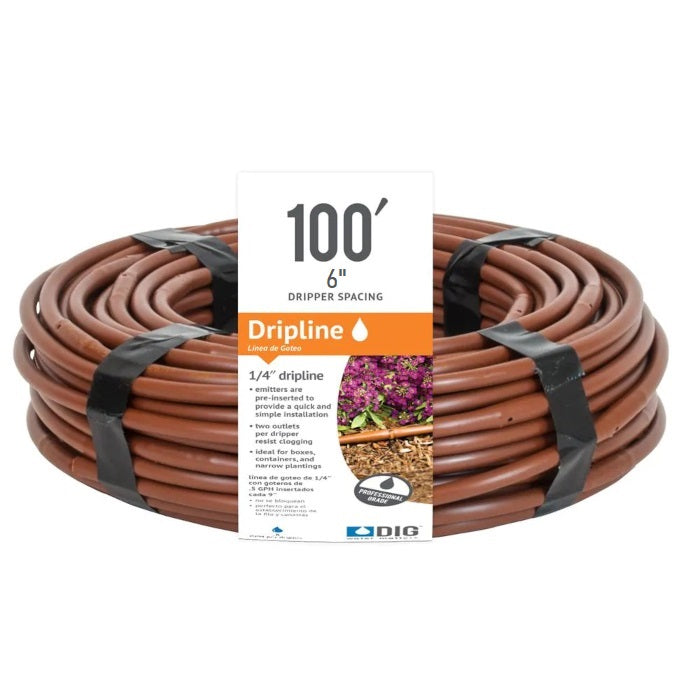

Dig ML-106 1/4 in. Microline Dripline (6 in. Emitter Spacing) (.52 GPH) (100 ft.)

Product Description

The DIG ML-106 1/4" Microline Dripline is a versatile and flexible, UV-protected small-diameter dripline suitable for commercial and residential irrigation. It can be installed above ground or under mulch. Each .52 GPH drip emitter has a large filter to prevent particles from entering the water path, ensuring trouble-free operation. Available with 6", 9", or 12" spacing.

• Suitable for a wide range of irrigation applications, both commercial and residential.
• Large labyrinth water passage and turbulent flow help reduce clogging.
• Inlet filter helps prevent particles from entering the drip emitter labyrinth path.

Product Highlights

Ideal for use in loops around plants or in planter boxes, vegetable gardens, and narrow planting areas. Flexible for easy installation.

Product Information

Standard Information

• Brand: DIG
• Manufacturer Part Number: ML-106

Technical Specifications

• Nominal flow rates: .52 GPH (2 L/H) at 15 PSI (1 BAR)
• Dripper color code: blue
• Operating pressure: 10-25 PSI (.7-1.7 BAR)
• Dripline color code: black or brown
• Materials: Dow FINGERPRINT DFDA-7510 NT linear low-density polyethylene resin
• Size: 1/4" (6 mm) (.170" ID x .250" OD) (4.445 mm ID x 6.35 mm OD)
• Spacing: 6", 9" or 12" (15 cm, 23 cm, or 30 cm)
• Available in: 100', 500', 1000' and 3000' coils (30 m, 152 m, 305 m, 914 m)
• Minimum bending radius: 1' (.3 m)
• Filter requirement: minimum of 150 mesh
• Material: Polyethylene (PE)
• Maximum Pressure: 25 Pound per Square Inch
• Nominal Wall Thickness: 0.25 inch
• Outside Diameter: 0.25 Inches
• Item Length: 100 Feet
• Emitter Spacing: 6" (15 cm)
• Coil Length: 100' Coil (30 m)
• Tubing Diameter: 0.170 in (ID) x 0.250 in (OD)
• Irrigation Part Type: Dripline
• Brand: DIG
• Flow Rate: 0.52 GPH
• Inside Diameter: 0.17 in.
• Tube Material: Polyethylene
• Selling Unit: Roll
• Tubing Size: 1/4 in.
• Type: Micro Line
• Minimum Operating Pressure: 10 PSI
• Regulated: No
