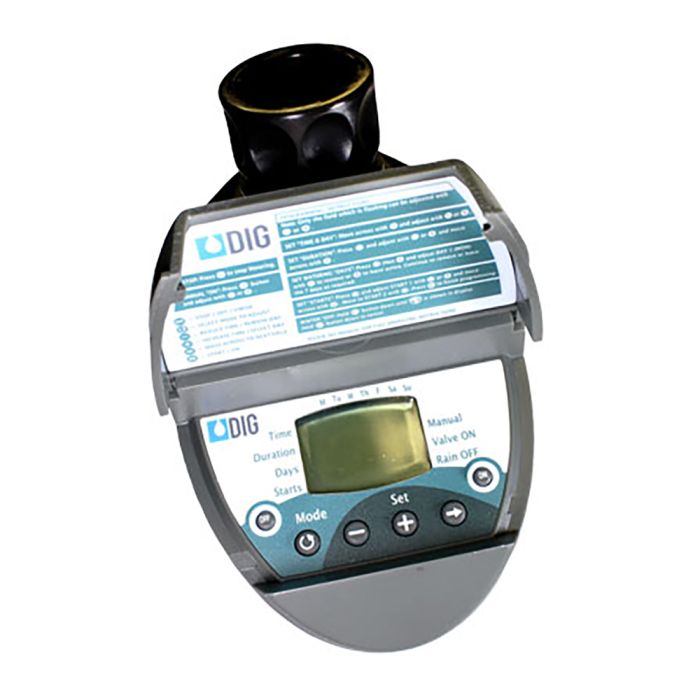

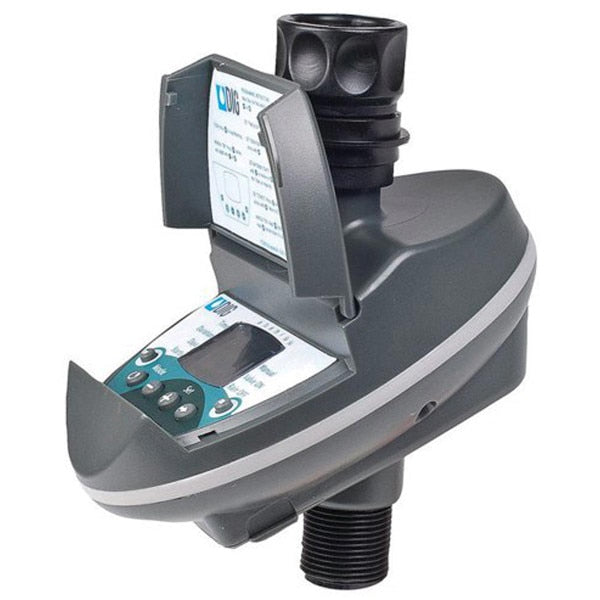

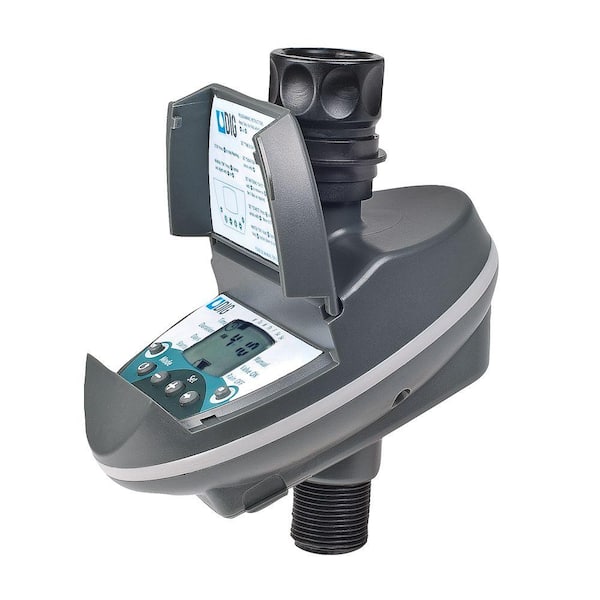

Dig B09D Digital Hose End Timer

Product Description

The DIG B09D 3/4" Digital Hose End Timer offers simplified programming and improved monitoring of battery power. It delivers a cost-effective solution for residential use. The timer has four start times per day with durations from 1 minute to 12 hours 59 minutes in an operating flow range of .5 to 6.3 gallons per minute.

• 3/4” FHT inlet and MHT outlet
• Easy programming using six buttons and large LCD display
• AM/PM clock

Product Highlights

Offers simplified programming and improved monitoring of battery power with less current, resulting in longer battery life with reliable operation.

Product Information

Standard Information

• Brand: DIG
• Manufacturer Part Number: B09D

Technical Specifications

• Operating pressure: 10 PSI to 80 PSI (0.6 – 5.5 Bar)
• Flow rate: up to 6.3 gpm at 30 PSI (24 L/PM at 2 Bar)
• Temperature range: 40°F to 125° F (3° C to 50° C)
• Power source: 9-volt alkaline battery (not included)
• Power consumption: 20 micro amps in standby mode
• Materials: body ABS, and inner parts of high-impact plastic
• Watering duration: from 1 minute up to 12 hours and 59 minutes
• Duration can be set in: one minute increments
• Watering frequency: can be programmed in a seven-day watering calendar
• In weekly schedule the controller can be programmed to operate on: any days of the week such as Monday, Wednesday, and Friday.
• Product Width (in.): 4 in
• Battery Type: Alkaline
• Depth: 6 in
• Display Type: LCD
• Height: 6.5 in
• Material: ABS
• Number of Zones: 1
• Time Setting: 1 min to 12 hr 59 min
• Type: Digital
• Voltage Rating: 9 V
• Brand: DIG
• Product Type: Hose End Timers
• Expandability: Fixed
• DC Powered: true
• Start Times Per Program: 4
• Max Station Run Time (HRS): 12
• Application: Residential
• Hose Timer Type: Digital
• Zones: 1
• Enclosure Type: Waterproof
• Solenoid: durable electric motor
• Inlet/Outlet: 3/4" FHT inlet and MHT outlet
