Dig 710a-075 Battery Operated Controller with 3/4 in. Valve

Product Description

The DIG 710A-075 series single station battery operated controller is completely waterproof and able to operate in harsh environments. Powered by two AA alkaline batteries that last up to three years. Offers installation flexibility and simple programming for easy operation and maintenance. Can be installed above ground or below grade on a wide range of valves.

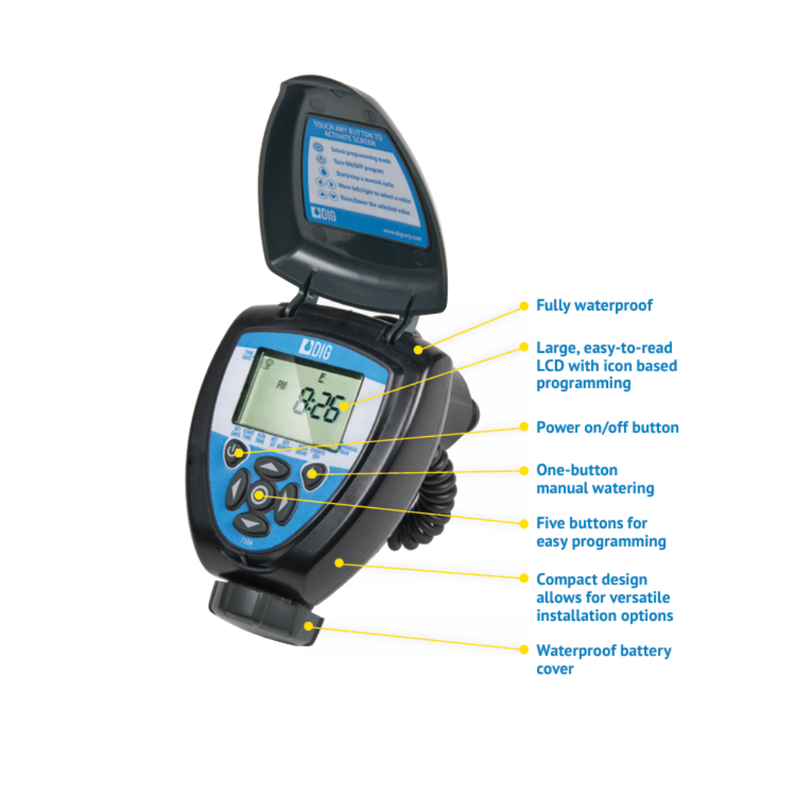

• Completely waterproof and able to operate in harsh environments
• Easy to use 710A series single station battery operated controllers with two wire DC latching solenoid
• Can be installed above ground or below grade on a wide range of valves

Product Highlights

Features monthly budget, rain delay of up to 99 days with automatic restart, 20 preset smart programs utilizing historical ET, and monthly and daily programming restriction options.

Product Information

Standard Information

• Brand: DIG
• Manufacturer Part Number: 710A-075
• Country of Origin: China

Technical Specifications

• Type: DC
• Body: IP68
• Power source: two AA alkaline batteries (not included)
• Program mode: Seven keypad buttons with integrated liquid crystal display
• Temperature range: 38F to +130F (3C to +54C)
• Solenoid: 7-12 VDC, two-way latching, normally closed
• Solenoid control orifice: .065 (1.65 mm)
• Encapsulated solenoid thread: 11/16 in.-12 UN male thread
• Retractable wire: 8.1 inch (coiled length when extended, approximately 36 in.)
• Sensor connection: normally closed 6 inch (15 cm) yellow wire ( 16 AWG)
• Mounting options: solenoid or valve box mounting
• Valve type: actuators, anti-siphon or globe valves (NPT or BSP)
• Materials Housing: high impact plastic
• Solenoid housing: glass reinforced nylon
• Plunger & spacer: 430F stainless steel
• Plunger rubber cap: EPDM
• O-ring: Buna-N
• RoHS: RoHS
• Valve size: 3/4 NPT
• Valve inlet and outlet: female pipe thread
• Operating pressure range: 10-150 PSI (.7-10.5 BAR)
• Flow rate: .1 to 28 GPM (.23 to 6.4 m3/h)
• Materials: Valve housing and bonnet: reinforced nylon, Diaphragm: NBR (Buna-N), Spring and plunger: stainless steel 430F, Bonnet bolts: stainless steel
• Operating pressure with DIG globe inline valve 3/4" to 2": 10 to 150 PSI, (.7 to 10.5 bar)
• Operating pressure with DIG anti-siphon valve 3/4" and 1": 20 to 150 PSI, (1.5 to 10.5 bar)
• Latching Solenoid: 6-12 VDC, two way, normally closed
• Compliance and approval: RoHS, IP68, I.A.P.M.O, UPC and ANSI
• Housing: high-impact plastic
• Brand: DIG
• SKU: 710A-075
• Prop 65: false
• Hazardous Material: false
• UL Listed: No
• ETL Listed: No
• Irrigation Part Type: Irrigation Controller
• Model: 710A-075
• Condition: New
• Country of Origin: China
