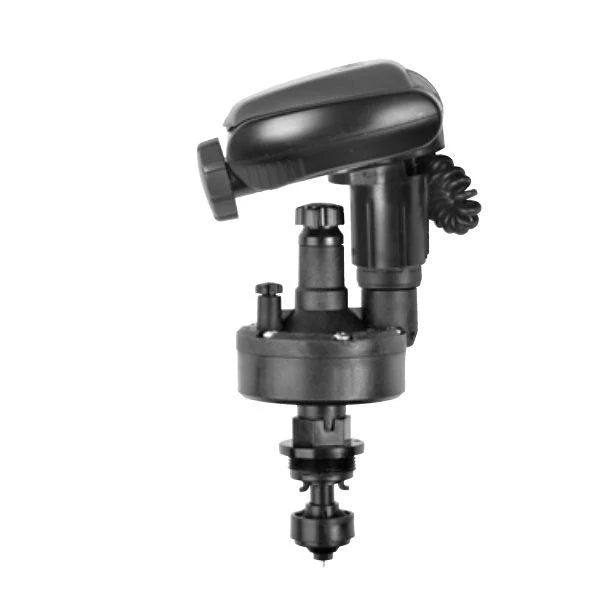

Dig 710A-011 Battery Operated Controller with 3/4 in. Actuator

Product Description

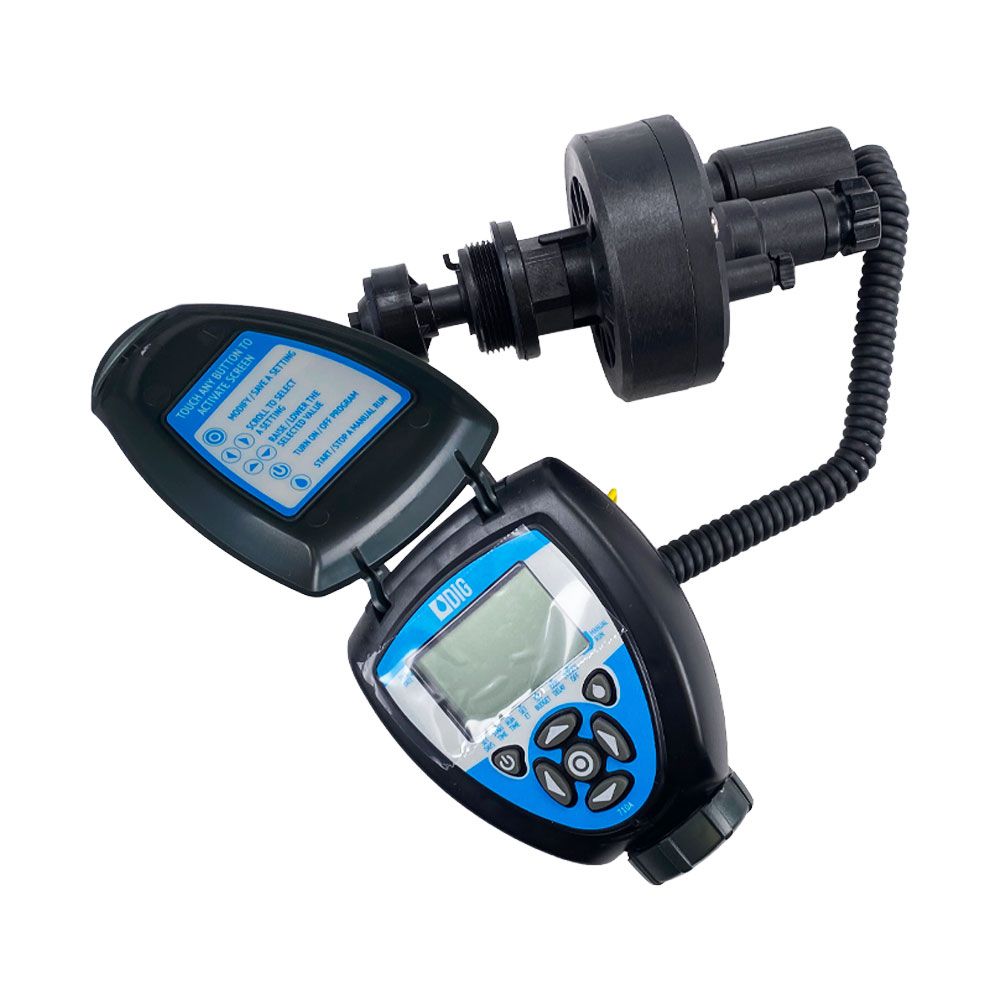

The DIG 710A-011 is a completely waterproof, single-station battery-operated controller with a two-wire DC latching solenoid, designed for above or below-grade installation on various valves. Powered by two AA alkaline batteries, it offers flexible installation and simple programming with seven buttons and an LCD screen. It features five start times per day in weekly or cyclical mode.

• Completely waterproof and able to operate in harsh environments
• Easy to use 710A series single station battery operated controllers with two wire DC latching solenoid
• Can be installed above ground or below grade on a wide range of valves

Product Highlights

Offers monthly budget, rain delay of up to 99 days, 20 preset smart programs, and daily/monthly programming restrictions. Includes Simple Smart programs based on historical Evapotranspiration (ET) for efficient irrigation.

Product Information

Standard Information

• Brand: DIG
• Manufacturer Part Number: 710A-011
• Country of Origin: USA

Technical Specifications

• Brand: DIG
• Product Type: Battery Operated (DC) Valve Mounted Controllers
• Expandability: Fixed
• Power Source: Battery Operated
• Number of Programs: 20
• Start Times Per Program: 5
• Max Station Run Time (HRS): 6
• Indoor: Yes
• Outdoor: Yes
• Sensor Compatible: Rain
• Rain Sensor Compatible: Yes
• Application: Light Commercial|Commercial
• Series: 710A
• Zones: 1
• Integrated Valve: 3/4 in. Actuator
• Enclosure Type: Waterproof
• Type: DC
• Body: IP68
• Power source: two AA alkaline batteries (not included)
• Power input: constant 11 volt

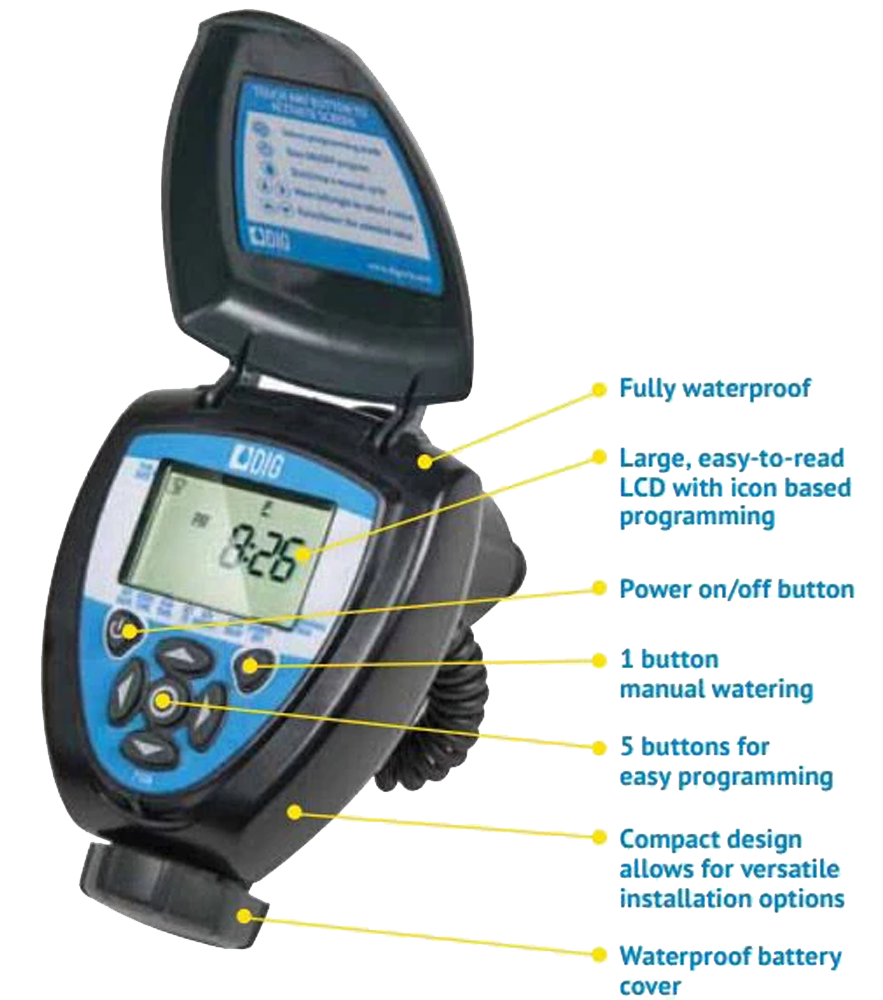

• Program mode: Seven keypad buttons with integrated liquid crystal display
• Temperature range: 38F to +130F (3C to +54C)
• Solenoid: 7-12 VDC, two-way latching, normally closed
• Solenoid control orifice: .065 (1.65 mm)
• Encapsulated solenoid thread: 11/16 in.-12 UN male thread
• Retractable wire: 8.1 inch (coiled length when extended, approximately 36 in.)
• Sensor connection: normally closed 6 inch (15 cm) yellow wire ( 16 AWG)
• Mounting options: solenoid or valve box mounting
• Valve type: actuators, anti-siphon or globe valves (NPT or BSP)
• Materials: Housing: high impact plastic, Solenoid housing: glass reinforced nylon, Plunger & spacer: 430F stainless steel, Plunger rubber cap: EPDM, O-ring: Buna-N
• RoHS: RoHS
• Operating pressure with DIG globe inline valve 3/4" to 2": 10 to 150 PSI, (.7 to 10.5 bar)
• Operating pressure with DIG anti-siphon valve 3/4" and 1": 20 to 150 PSI, (1.5 to 10.5 bar)
• Latching Solenoid: 6-12 VDC, two way, normally closed
• Compliance and approval: RoHS, IP68, I.A.P.M.O, UPC and ANSI
• Operating Pressure: 20 to 80 PSI
