Product Description
The DIG 410BT-000 Series Battery Operated Controller features Bluetooth® wireless technology combined with a full-function irrigation controller. Download the free DIG BTT app to control any number of 410 BT controllers through supported Android or iPhone smart devices from up to 50
feet. The controller's rugged design is ideal for residential and commercial applications or where AC power is unavailable.
- Download DIG’s BTT free app to your smartphone, then connect and control any number of DIG’s Bluetooth® controllers from the palm of your hand
- Operates with any supported Android or iPhone smart device
- Instantaneous communication with a smartphone
Product Highlights
Manage your irrigation with DIG's 410BT controller, featuring Bluetooth® wireless technology, smartphone app control, and a rugged waterproof design for reliable performance in any environment.
Product Information
Standard Information
-
Brand: DIG
-
Manufacturer Part Number: 410BT-000
Technical Specifications
-
Type: DC (IP68)
-
Connection and program mode: Android or iPhone smartphone, Bluetooth
-

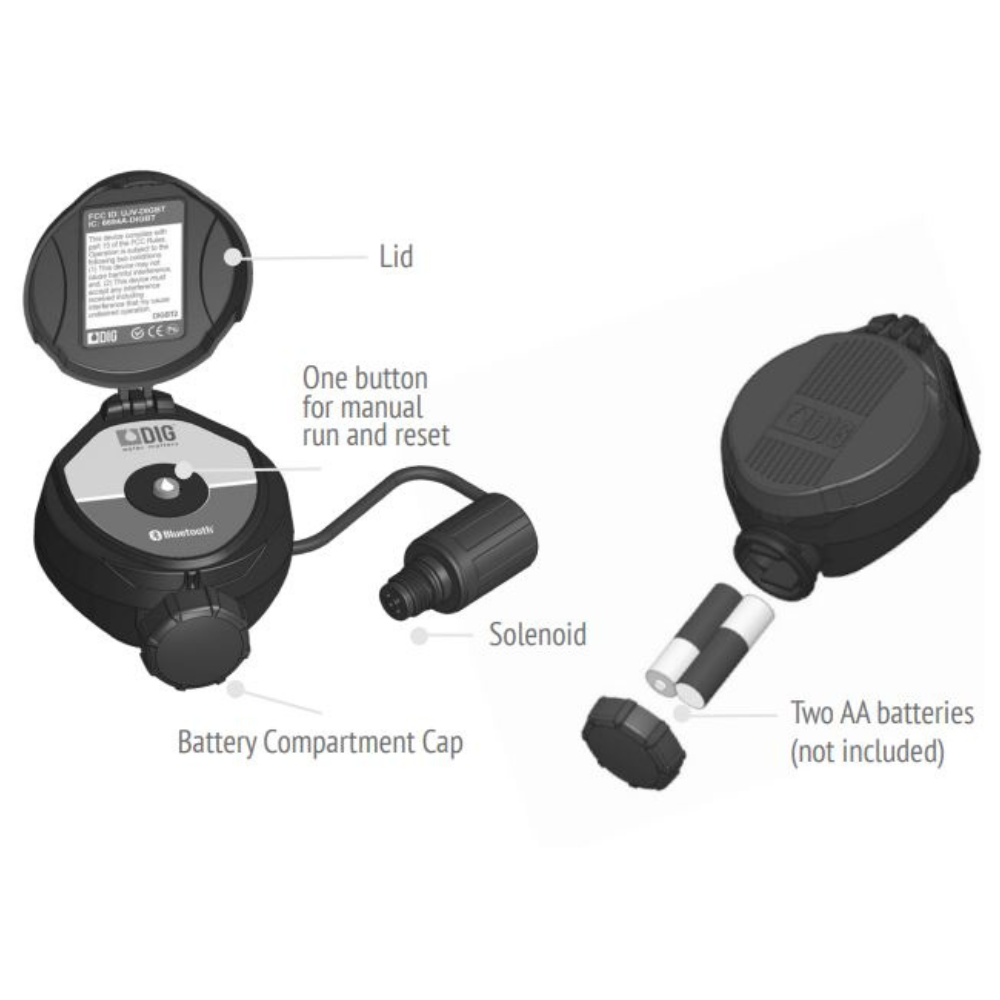

Operation interface: one button for reset and manual run
-
Power source: two AA alkaline batteries (not included)
-
Solenoid with enclosed plunger: two-way magnetic latching, normally closed, 7-12 Volt DC with two wires
-
Completely waterproof (IP68 certified): can operate in harsh environments
-
Solenoid wire: 8" (20 cm)
-
Operating pressure: 10 to 150 PSI (.7 to 10.5 bar)
-
Flow range: 0.1 to 160 GPM (.23 to 36 m3h)
-
Temperature range: 38-130 F (3-54 C)
-
Inlet and outlet: female pipe thread (FNPT) or British standard thread (BSP)
-
Valve size: 3/4", 1”, 1 1/2” and 2” FNPT heavy-duty globe valves with flow control
-
Brand: DIG
-
Product Type: Bluetooth Controllers
-
Expandability: Fixed
-
Outdoor: Yes
-
Application: Residential|Light Commercial
-
Series: 410BT Series
-
Zones: 1
-
Integrated Valve: Controller Only
-
Wireless Range: Up to 50 Feet (15 meters) via Bluetooth
-
Waterproof Rating: IP68 (Submersible)
-
MPN: 410BT
-
Schedules: Weekly, Even/Odd days of the month, or 1- to 30-day schedules
-
Start times: Five start times per day
-
Program run time: from 1 minute up to 11 hours and 59 minutes in 1-minute increments
-
Battery type: Two AA alkaline batteries
