Product Description
DIG presents the new single station, 400A series battery powered controllers. These controllers provide a simple and reliable method for irrigation control when AC power is not available. Rugged and waterproof, the 400A series controllers are built to last whether below grade in a valve box or above grade on an anti-siphon valve.

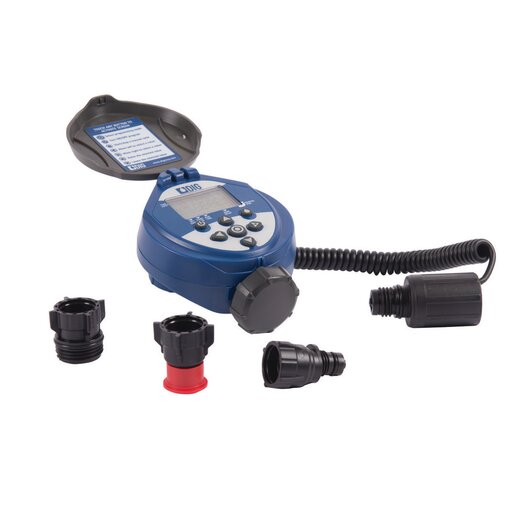

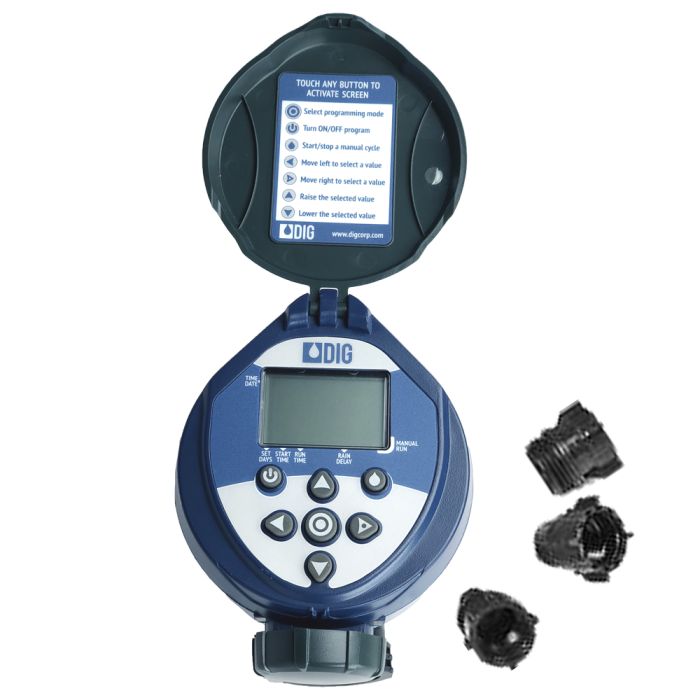

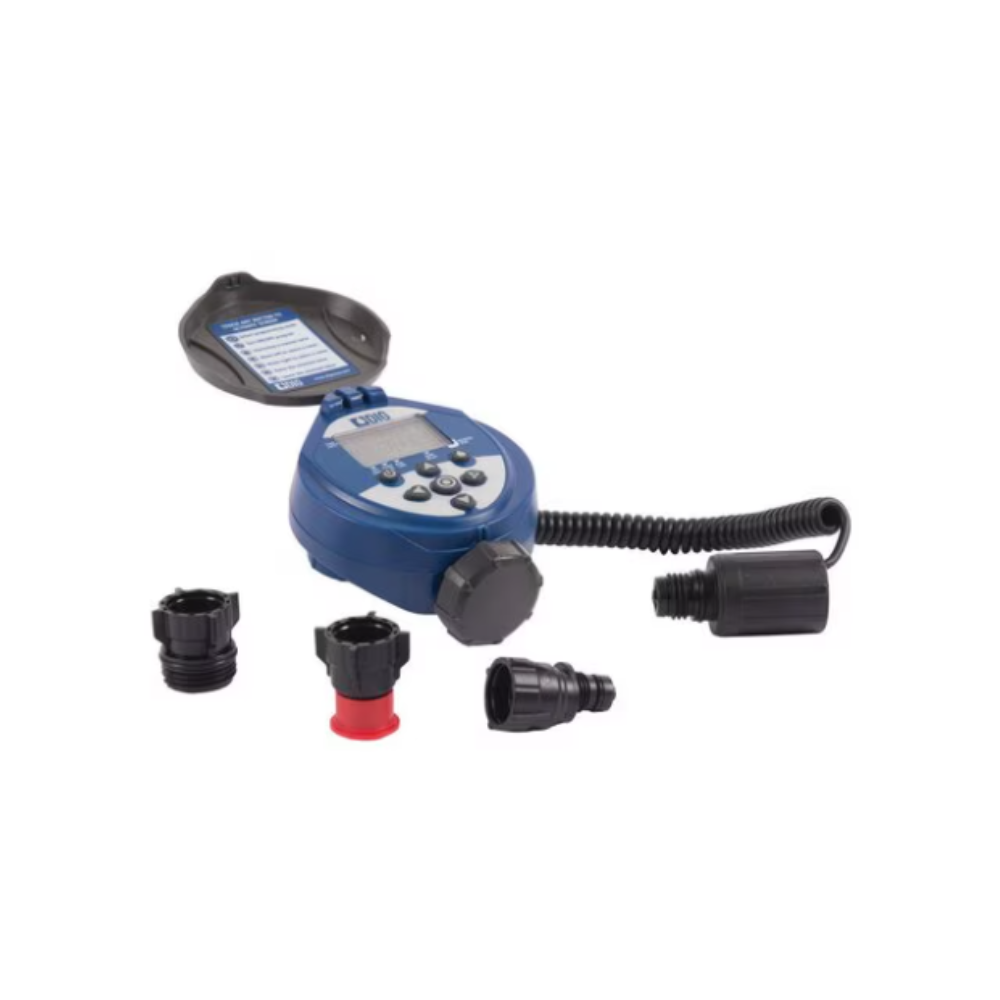

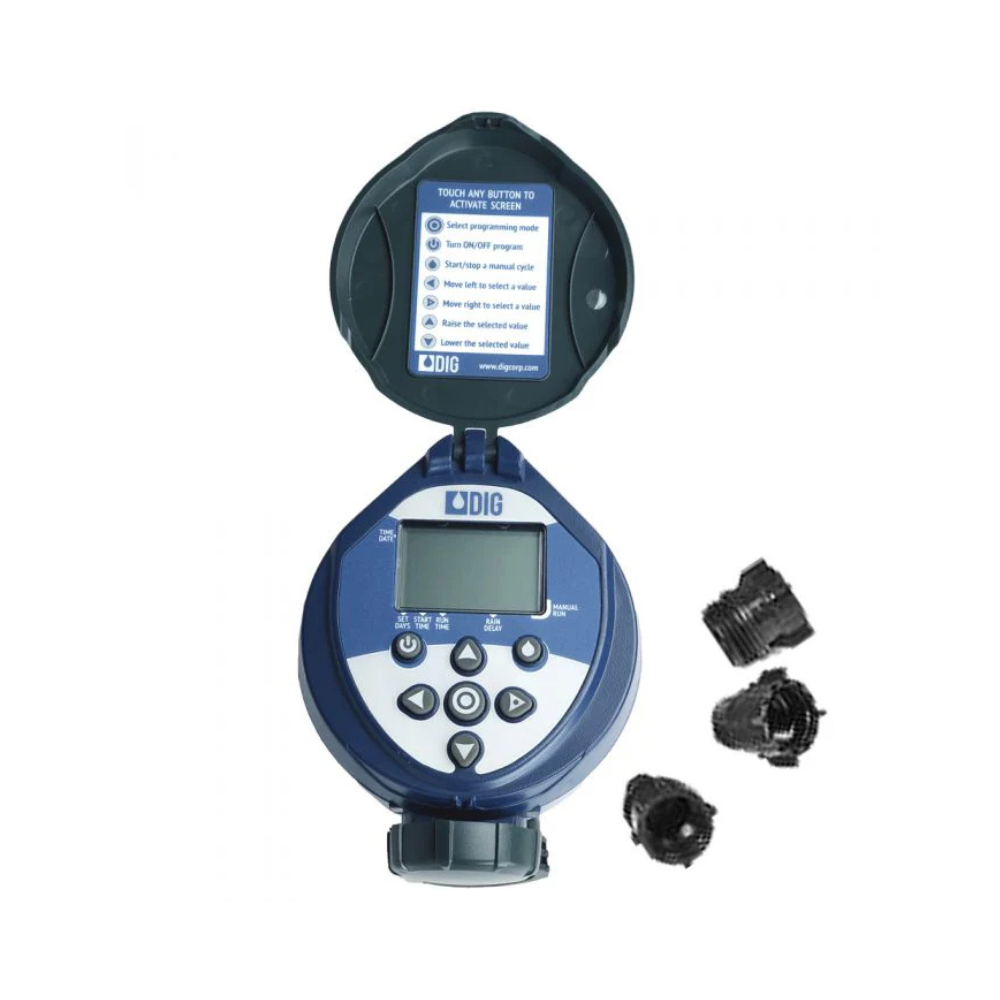

- DIG Single Station Battery Controller w/ 3 Adapters
- Up to 3 years of operation from one pair of AA batteries!

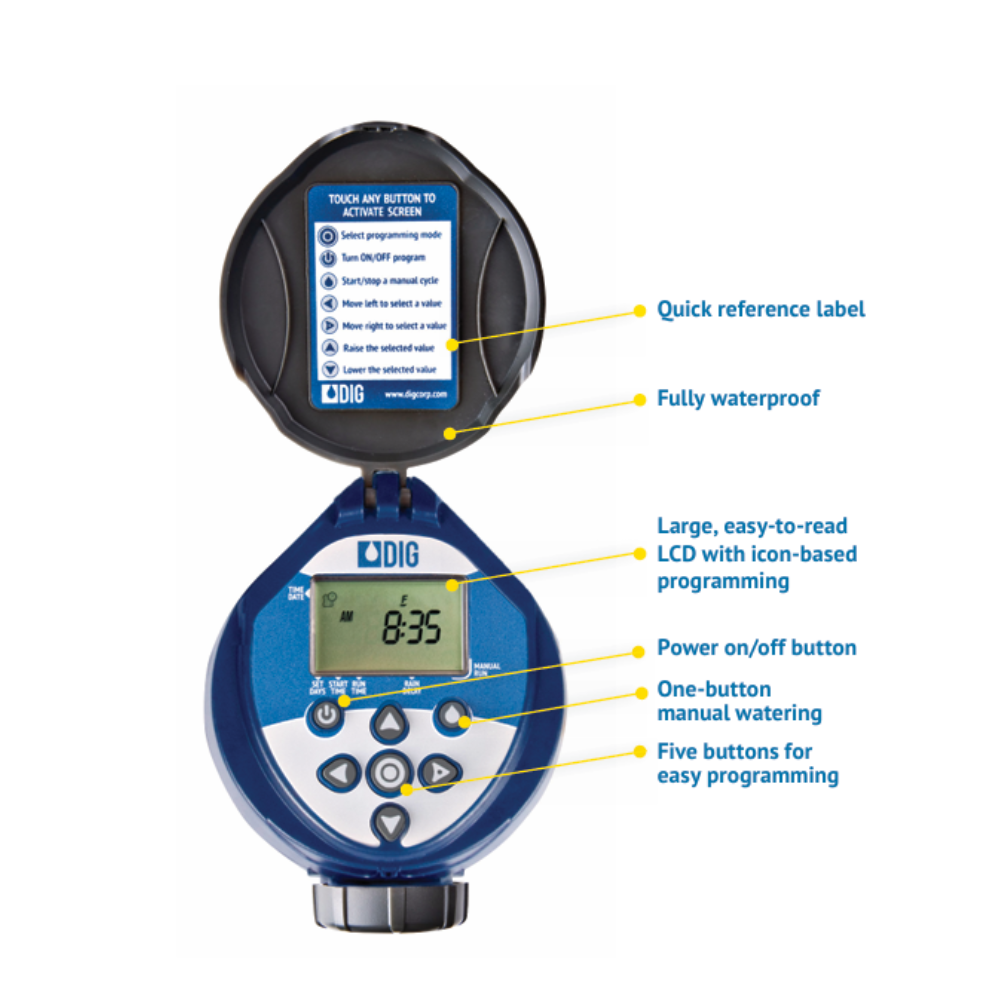

- Easy to read LCD display with AM/PM clock and icon-based intuitive programming for easy navigation
Product Highlights
Ideal for residential and commercial applications where AC power is unavailable. Offers flexible programming and durable construction for irrigation system needs.
Product Information
Standard Information
-
Brand: DIG
-
Manufacturer Part Number: 400A-000
Technical Specifications
-
Brand: DIG
-
Product Type: Battery Operated (DC) Valve Mounted Controllers
-
Expandability: Fixed
-
Power Source: Battery Operated
-
Start Times Per Program: 4
-
Max Station Run Time (HRS): 6
-
Outdoor: Yes
-
Sensor Compatible: Rain
-
Rain Sensor Compatible: Yes
-
Application: Light Commercial|Commercial
-
Series: 400A
-
Zones: 1
-
Integrated Valve: Controller Only
-
Enclosure Type: Waterproof
-
Type: DC
-
Body: IP68
-
Program mode: seven keypad buttons with integrated liquid crystal display
-
Temperature range: 38°F to +130°F (3°C to +54°C)
-
Power source: two AA alkaline batteries (not included)
-
Latching Solenoid: 7-12 VDC, two-way, normally closed
-
Completely waterproof: can operate in harsh environments
-
Solenoid control orifice: 0.065 (1.65 mm)
-
Encapsulated solenoid thread: 11/16"-12 UN male thread
-
Retractable solenoid wire: 8.1" (coiled length when extended, approximately 36"
-
Sensor connection: normally closed 6" (15 cm) yellow wire (16 AWG)
-
Adapters included to convert: Rain Bird, Hunter and Toro valves (model 400-000)
-
Valve type: globe valves 3/4" to 2" (NPT or BSP)
-
Plunger & spacer: 430F stainless steel
-
Valve inlet and outlet (In-line Valve Specifications): female pipe thread
-
Operating pressure range (In-line Valve Specifications): 10-150 PSI (.7-10.5 BAR)
-
Bonnet solenoid thread (In-line Valve Specifications): 3/4”-20 UNEF female threaded
-
Diaphragm material (In-line Valve Specifications): NBR (Buna-N)
-
Spring and plunger material (In-line Valve Specifications): stainless steel 430F
-
Bonnet bolts material (In-line Valve Specifications): stainless steel
-
Number of Stations: 1 Station
-
Includes: Controller, 2 x Wires, DC Latching Solenoid & 3 x Adapters
-
Item: Controller
-
Indoor/Outdoor: Outdoor
-
Max Station Run Time: 6 hrs.
-
Start Times Per Programs: 4
-
Regulated: No
