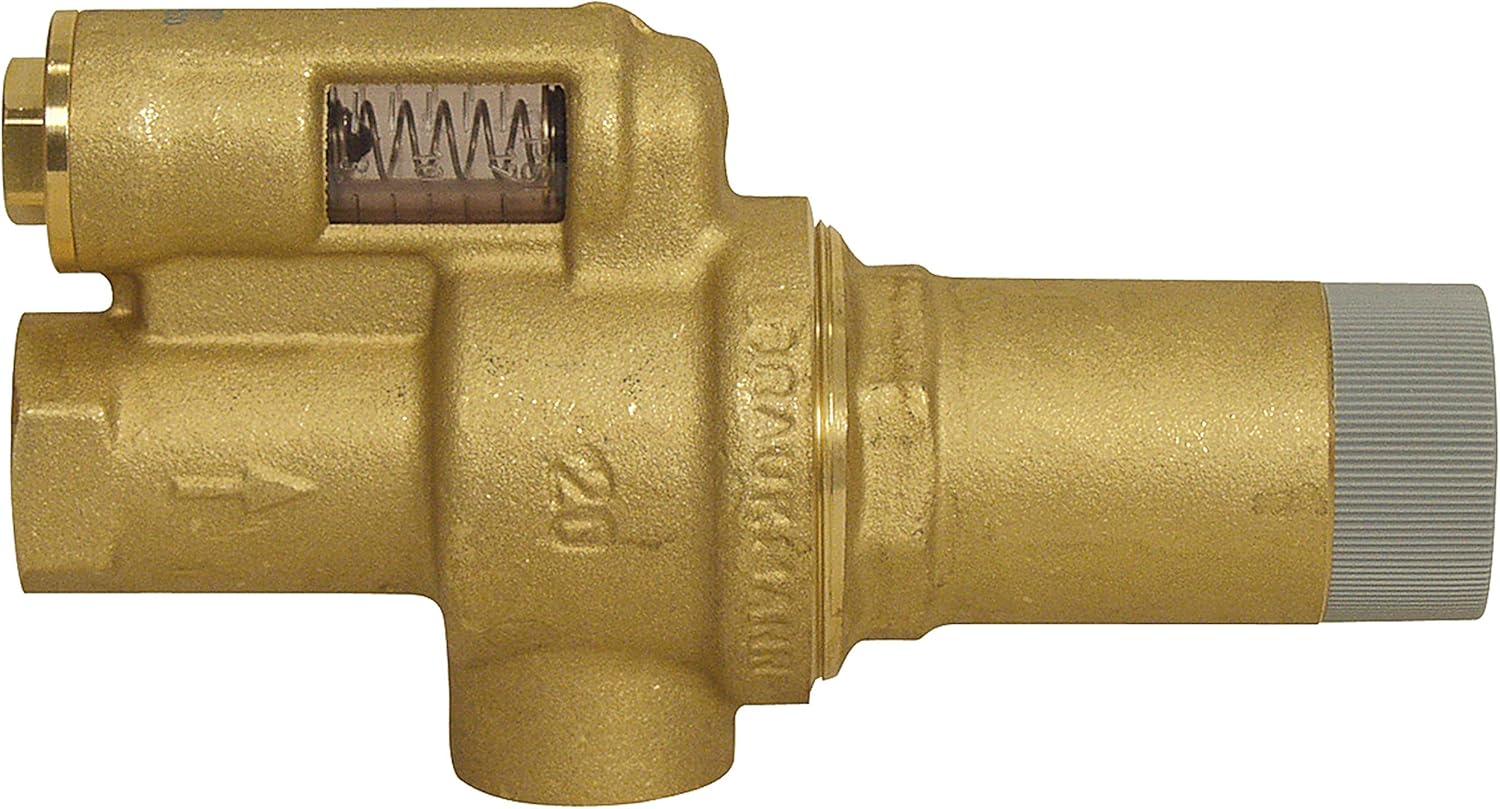

Honeywell D146M1040 Hydronic Pressure Differential Valve 1-1/4 inch FNPT 85 psi 50 gpm Brass

Product Description

The Honeywell D146M1040 Hydronic Pressure Differential Valve is an efficient component for plumbing and heating systems. It helps regulate differential pressure to prevent excessive pump head pressure. This valve is suitable for various commercial applications.

• Regulates differential pressure
• Prevents excessive pump head pressure
• Compatible with various commercial systems

Product Highlights

This valve is designed to ensure optimal system performance by maintaining a constant differential pressure. It operates silently and requires no electrical hookup. It is constructed with a brass body and EPDM diaphragm for durability.

Product Information

Standard Information

• Brand: Honeywell
• Model: D146M1040
• Type: Angle
• Material: Brass
• Flow Rate: 50 gpm
• Pressure Rating: 85 psi

Technical Specifications

• Body Material: Brass
• Dimensions: 8-1/2 inches H x 4-1/4 inches W
• End Style: FNPT
• Nominal Size: 1-1/4 inches
• Softgoods Material: EPDM Diaphragm
• Temperature Rating: 230 degrees F Operating
• Series: D146M
• Domestic/Import: Import
