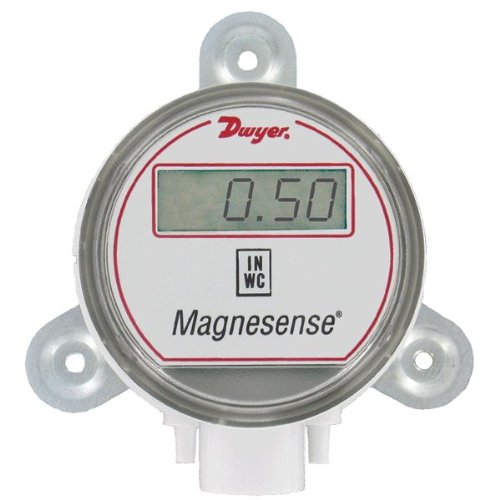

Dwyer MS-311-LCD Magnesense Differential Pressure Transmitter 0-10V LCD

Product Description

The Dwyer MS-311-LCD Magnesense Differential Pressure Transmitter is designed for accurate pressure and air velocity monitoring. This device, known for its compact and versatile design, features a field-selectable range and a field-upgradable LCD display.

• Field-selectable range
• Field-upgradable LCD display
• Adjustable dampening of output signal

Product Highlights

This pressure transmitter uses magnetic sensing technology for long-lasting performance. It provides a 0-10V output signal, making it suitable for various applications such as HVAC systems, process control, and building automation.

Product Information

Standard Information

• Brand: Dwyer
• MPN: MS-311-LCD

Technical Specifications

• Differential Pressure Range: 0-1 to 0-5 inches of water column (H2O)
• Accuracy: ±2% of full scale
• Output Signal: 0-10V DC
• Power Supply: 12-32V DC
• Compact and Durable Design
• LCD Display: Easy reading
• Applications: Airflow monitoring, Filter monitoring, Building automation, Process control, HVAC systems
