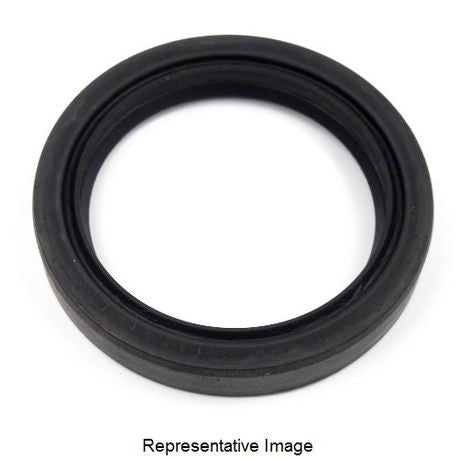

Dichtomatik 35X72X8TC-BX Oil Seal - 1.378 in Shaft Dia., 72 mm OD, 8 mm Overall Width

Product Description

The Dichtomatik TCM Oil Seal, MPN 35X72X8TC-BX, is designed for effective sealing in various machinery applications. This oil seal features a shaft diameter of one point three seven eight inches and an outside diameter of seventy two millimeters, making it suitable for a variety of installations.

• Two lip design with a garter spring enhances durability.
• Constructed from nitrile rubber (NBR) for effective sealing.
• Compatible with pumps, transmissions, and gearboxes.

Product Highlights

The Dichtomatik oil seal provides reliable sealing under various pressures, making it an essential component for hydraulic and pneumatic systems.

Product Information

Standard Information

• Brand: Dichtomatik
• MPN: 35X72X8TC-BX

Technical Specifications

• Shaft Diameter: 35 mm
• Outside Diameter: 72 mm
• Overall Width: 8 mm
• Lip Material: Nitrile Rubber (NBR)
• Pressure Tolerance: Less than 10 psi
• Typical Application: Pumps, transmissions, gearboxes, axles
• Continuous Temperature Range: -40 to 200°F
• Number of Lips: 2
