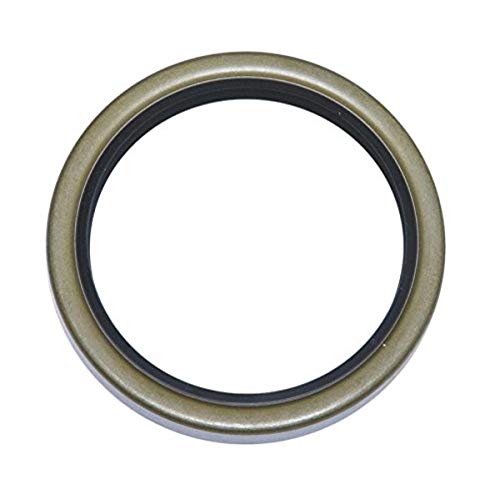

Dichtomatik 21334TB-BX TCM Oil Seal - 2.125 in Shaft Dia., 3.372 in OD, 0.438 in Overall Width

Product Description

The Dichtomatik TCM Oil Seal with MPN 21334TB-BX is designed for effective sealing in various applications. This oil seal features a dual lip design with a garter spring and an outer metal case, providing reliable performance. Ideal for pumps, transmissions, gearboxes, and industrial uses, it ensures minimal leakage even under challenging conditions.

• Shaft Diameter: 2.125 inches
• Outside Diameter: 3.372 inches
• Overall Width: 0.438 inches

Product Highlights

This oil seal is built with nitrile rubber for durability and resistance. It operates efficiently in temperatures ranging from negative forty to two hundred degrees Fahrenheit. Its design accommodates a variety of industrial applications.

Product Information

Standard Information

• Brand: Dichtomatik
• Country Of Origin: Taiwan

Technical Specifications

• Series: TB
• Seal Type: Dual lip with a garter spring, outer metal case
• Hardness: 70 Shore D
• Durometer: 70 Durometer
• Pressure Tolerance: Less than 10 psi
• Continuous Temperature Range: -40 to 200 degrees F
• Typical Application: Pumps, transmissions, gearboxes, axles
