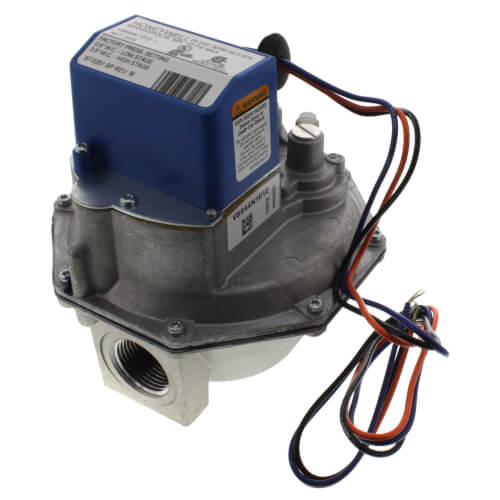

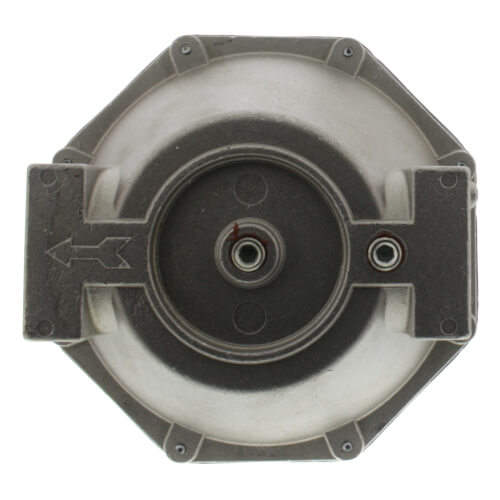

Honeywell V8944N1012 Diaphragm Gas Valve 24 Vac 1 Inch

Product Description

The Honeywell V8944N1012 diaphragm gas valve is designed for dual-stage pressure regulation with a rapid opening feature. Compatible with 24 Vac, this gas valve fits a 1-inch NPT connection and supports natural gas. Ideal for various heating applications, it is used in boilers, unit heaters, and rooftop heaters.

• Two-stage pressure regulation
• Rapid opening feature
• 1-inch NPT connection

Product Highlights

This Honeywell gas valve ensures safety and efficiency in heating applications such as boilers, commercial water heaters, and rooftop heaters by combining safety shutoff and pressure regulation functions into one unit. It is recommended for final shutoff service due to its reliable closing mechanism during power failure.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V8944N1012

Technical Specifications

• Valve Type: Two Stage, Rapid Opening
• Size: 1 inch NPT
• Fuel Type: Natural Gas
• Voltage: 24 Vac
• Material: Aluminum
• Pressure Rating: 1/2 psi
• Capacity: 1000 CFH
• Operating Temp Range: -40°F to 150°F
• Max Temp (F): 150°F
• Min Temp (F): -40°F
• Mount: Horizontal
