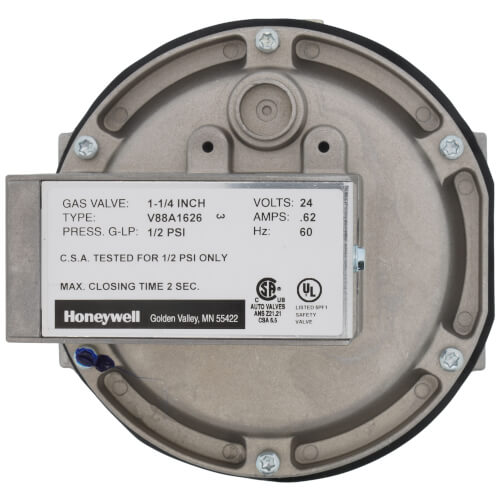

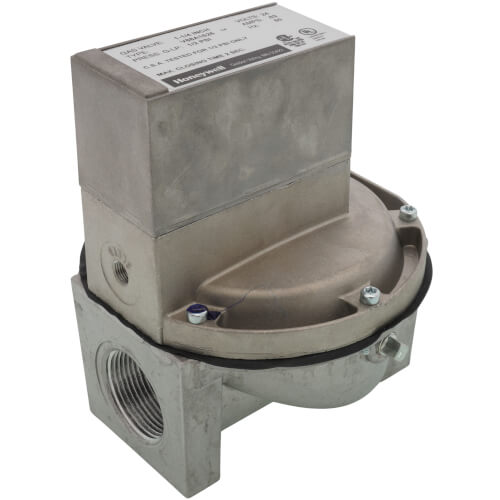

Honeywell V88A1626 Diaphragm Gas Valve 24 Vac 1-1/4 Inch NPT

Product Description

The Honeywell Diaphragm Gas Valve V88A1626 is a solenoid-operated valve designed for slow opening and fast closing. This valve is ideal for controlling natural, LP, or manufactured gases. It is commonly used in atmospheric boilers, commercial water heaters, and rooftop heaters.

• Firm closing with weight and spring-loaded diaphragm
• Two-second maximum closing time
• Made from durable cast aluminum

Product Highlights

This gas valve closes on power failure for reliable final shutoff service. It has a straight-through pattern and uses 24 Vac power. The valve operates in an upright, horizontal mounting position.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V88A1626
• Type: Diaphragm Gas Valve
• Connection Size: 1-1/4 inch NPT
• Power: 24 Vac
• Max Pressure: 1/2 PSI

Technical Specifications

• Material: Cast aluminum
• Temperature Range: 32°F to 125°F
• Current: 0.62 Amp
• Power: 9 Watt
• Closing Time: 2 seconds
• Opening Time: 5 seconds
• Fuel Type: Liquid propane, natural gas
• Connection Type: Threaded x Threaded
• Dimensions: 5-5/16 inch width x 5-7/8 inch depth x 6-13/16 inch height
• Weight: 4.37 lbs
• Mounting: Upright horizontal
