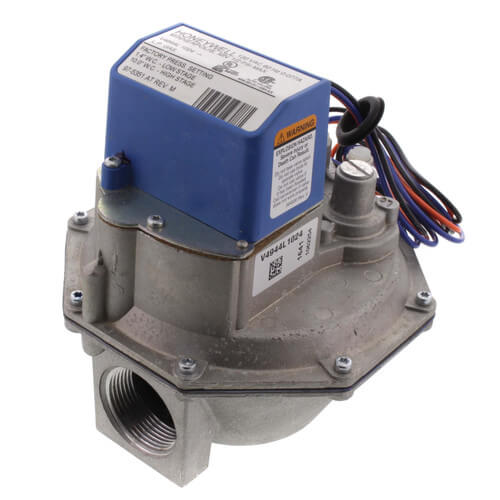

Honeywell V4944L1024 Diaphragm Gas Valve 120V 1-1/4 Inch Two Stage

Product Description

The Honeywell V4944L1024 Diaphragm Gas Valve ensures reliable performance for HVAC systems. This two-stage, 120V valve is designed for replacements and new installations in boilers, unit heaters, and rooftop heaters.

• Designed for replacement of V4844/V8844 Gas Valves
• Compatible with atmospheric boilers, commercial water heaters, and rooftop heaters
• Solenoid-operated with safety shutoff and pressure regulation

Product Highlights

This Honeywell gas valve offers a straight-through die-cast aluminum body. Suitable for use with LP gas. The valve closes on power failure, providing a final safety shutoff feature.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell
• MPN: V4944L1024
• Category: HVAC Equipment
• Type: Mechanical Component

Technical Specifications

• Pipe Size: 1-1/4 inches
• Voltage: 120V
• Weight: 4.6 lbs
• Fuel Type: Propane
• Valve Type: Rapid Opening, Two Stage
• Max Temperature: 150°F
• Min Temperature: -40°F
• Capacity: 310 to 1030 CFH
• Pressure Rating: 1/2 psi
• Electric Connection: 1/4 Spade Terminal, 30 leadwires with conduit cover
• Temperature Range: -40°F to 150°F
