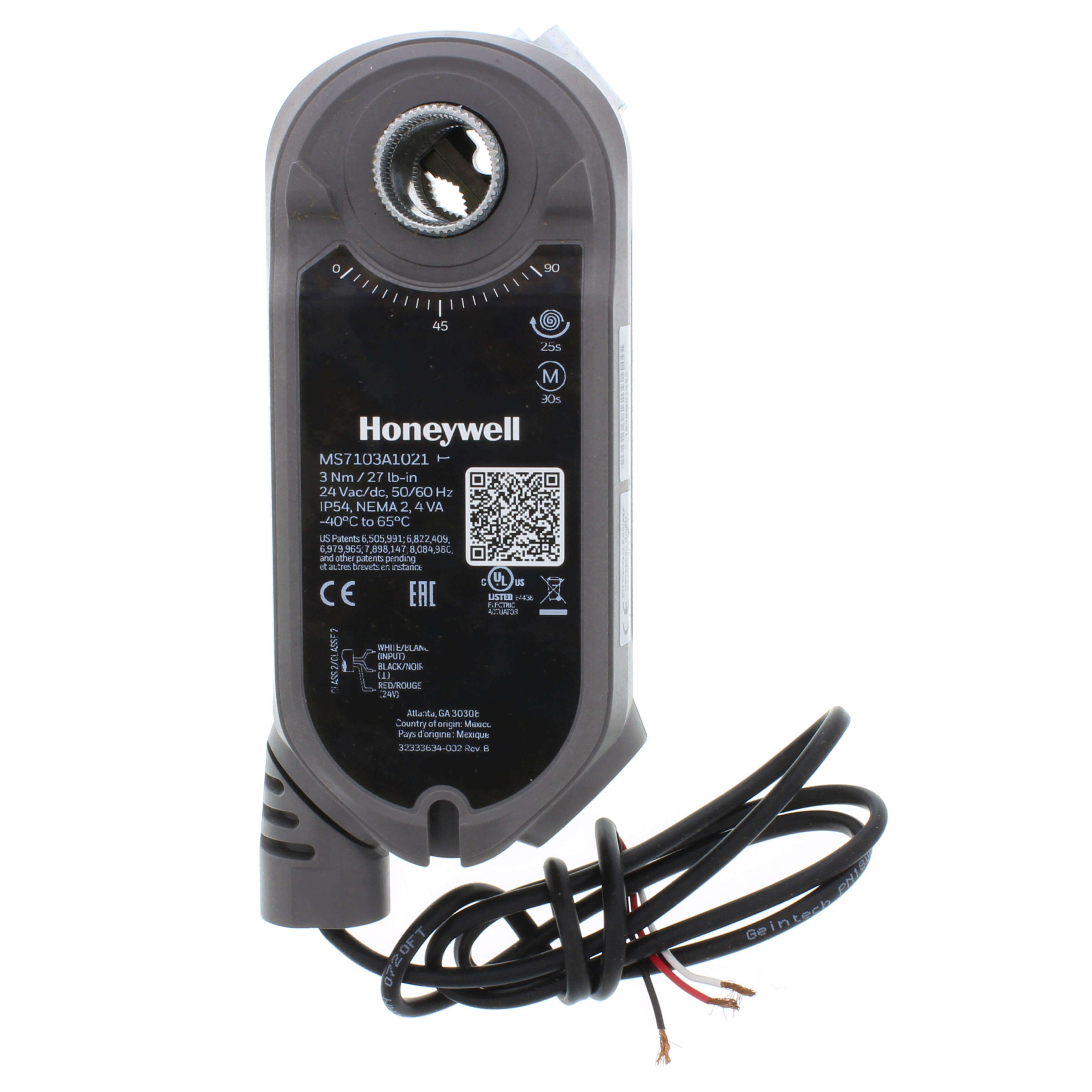

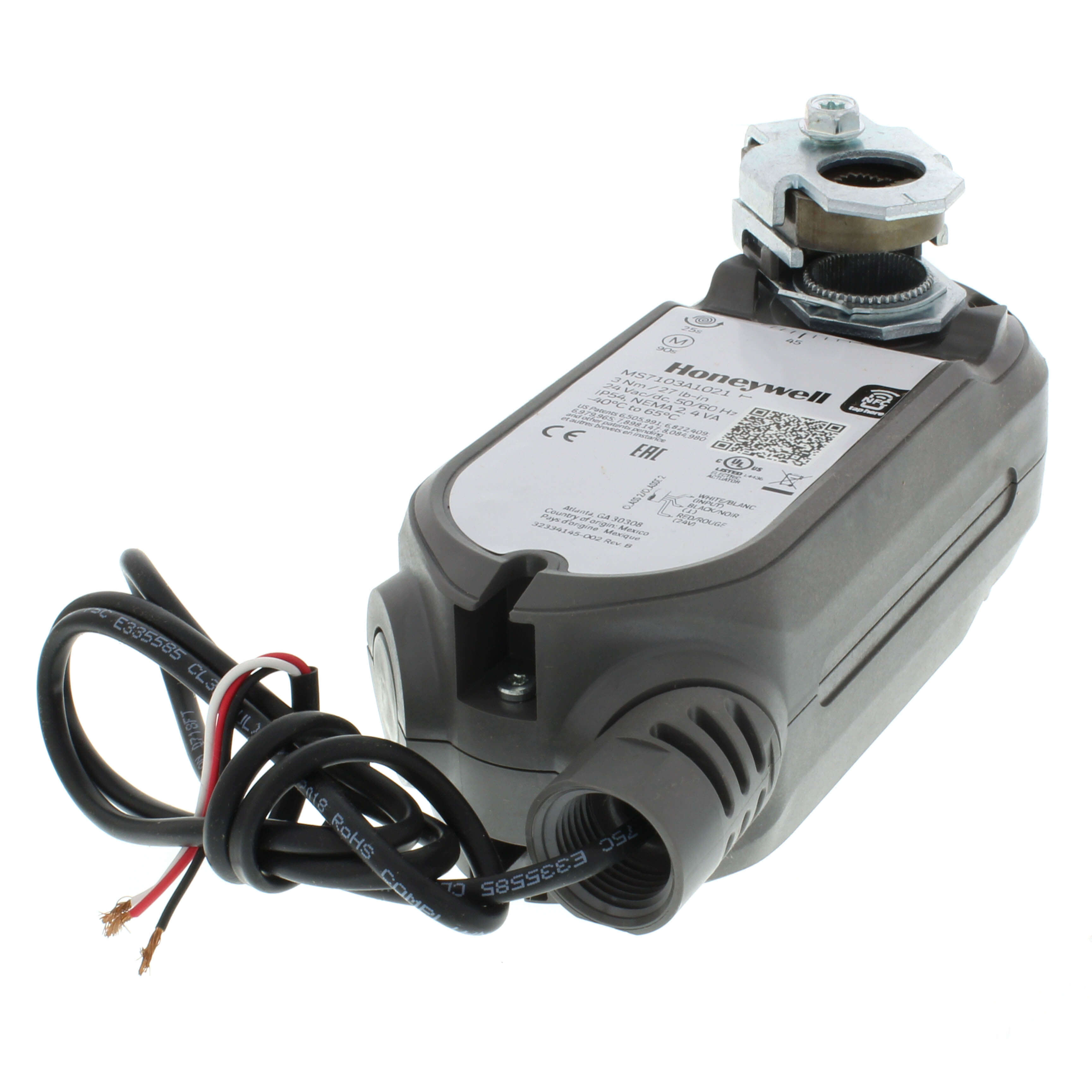

Honeywell MS7103A1021 Diamond Actuator 24vac/dc 2-10vdc 27 lb-in Spring Return direct coupled damper Actuator with self-centering shaft Adapter

Product Description

The Honeywell MS7103A1021 is a spring return direct coupled actuator designed for HVAC systems. This actuator operates using twenty-four volts alternating or direct current and features a two to ten volts direct current control. It delivers a torque of twenty-seven lb-in, making it suitable for various applications including volume control dampers and rotary valves. It is compatible with accessory hardware for different mounting options and has a fail-safe spring return operation.

• Torque capacity of twenty-seven lb-in
• Compatible with both AC and DC voltage
• Self-centering shaft for easy installation

Product Highlights

This actuator is designed to provide reliable performance in HVAC systems, ensuring efficient control over airflow and temperature.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS7103A1021

Technical Specifications

• Voltage: 24 VAC/DC
• Control Signal: 2-10 VDC
• Torque: 27 lb-in
• Fail-Safe Mode: Spring return
• Temperature Range: -40°F to 150°F
• Humidity Range: 5 to 90% RH (non-condensing)
• Shipping Weight: 5.17 lb
• Shipping Dimensions: 13 inches x 5.75 inches x 4.25 inches
