Dial 7589 Pigtail Pump Receptacle 115V Evaporative Cooler

Product Description

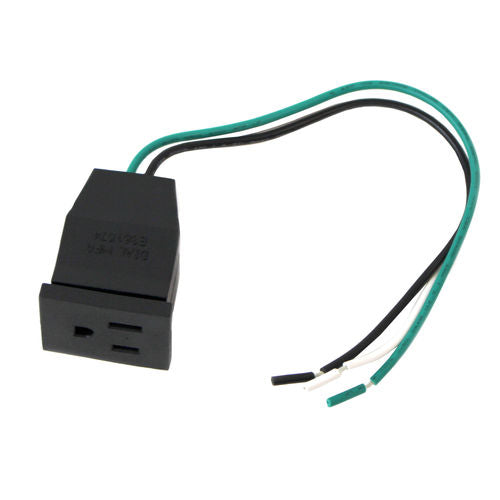

The DIAL 7589 is a pigtail pump receptacle designed to connect standard 115-volt cooler pumps in evaporative cooling systems. Built with an 18-gauge, 3-wire SPT configuration and 10-inch leads, it provides a secure electrical connection for reliable pump operation. The receptacle is compatible with P2-907 style fittings, making it a direct-fit solution for both new cooler installations and pump replacement service calls. Licensed HVAC technicians and evaporative cooler service pros keep this part on hand for quick turnaround on swamp cooler pump circuits.

This pigtail receptacle is used in residential and light commercial evaporative cooler applications where the pump requires a secure 115-volt hardwired or plug-in connection. It fits common swamp cooler pump configurations and is suited for both seasonal startups and mid-season pump replacements. The 10-inch lead length gives enough working room for standard cooler cabinet access without requiring extension wiring in most installs.

Key Features

• 18-gauge, 3-wire SPT construction for reliable low-voltage pump circuits
• 10-inch leads provide adequate reach for typical evaporative cooler cabinet installs
• Compatible with P2-907 style receptacles for direct replacement fitment
• Rated for 115-volt cooler pump connections
• Suitable for new installations and pump replacement service

Compatibility

Designed for use with P2-907 style receptacles on standard 115-volt evaporative cooler pump assemblies. Suitable as an OEM-style replacement pigtail for residential evaporative cooler pump circuits.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed electrician familiar with evaporative cooler wiring. Always disconnect power to the cooler at the circuit breaker before removing or connecting any pump wiring. Verify lead connections are secure and insulation is undamaged before restoring power. Work should comply with applicable NEC requirements for appliance wiring and receptacle connections.

Technical Specifications

• Voltage: 115 volts
• Wire Gauge: 18 gauge
• Wire Configuration: 3-wire SPT
• Lead Length: 10 inches
• Receptacle Style: P2-907 compatible
• Product Type: Pump Receptacle

Standard Information

• Brand: DIAL
• Manufacturer Part Number: 7589
