Dial 7487 2-speed Long Shaft Knob Kit Evaporative Cooler

Product Description

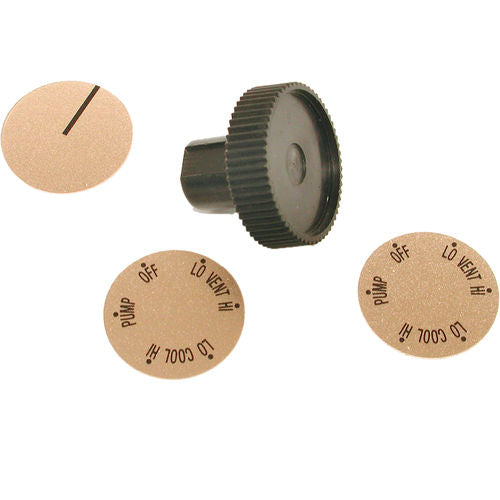

The DIAL 7487 is a 2-speed long shaft knob kit designed for evaporative coolers. It provides a complete control solution for switching between motor speeds and managing pump operation. The kit includes a control knob, a 6-position switch, labeled inserts showing motor and pump operation modes, a plain insert with a pointer line, and installation instructions. This hardware is used by HVAC technicians and service pros to restore or replace damaged or missing control assemblies on residential and light-commercial evaporative coolers.

This knob kit fits evaporative cooler installations where a long-shaft control is required for 2-speed operation. It is well-suited for wall-mounted or unit-mounted control configurations. The labeled inserts simplify setup by providing clear visual references for motor speed and pump status, making it appropriate for both initial installs and replacement service calls.

Key Features

• Includes 6-position switch for 2-speed motor and pump control
• Long shaft design accommodates deeper panel or housing installations
• Labeled inserts identify motor and pump operating positions
• Plain insert with pointer line included for custom labeling needs
• Installation instructions included for straightforward field setup

Compatibility

Designed as an OEM-style replacement control knob kit for 2-speed residential and light-commercial evaporative coolers requiring a long shaft configuration.

Installation Notes

Installation is typically performed by an HVAC technician or qualified service professional. Disconnect power to the evaporative cooler at the disconnect switch or breaker before beginning any control replacement work. Verify shaft length and switch orientation match the existing housing before mounting. Follow the included instructions and consult local mechanical codes as applicable.

Technical Specifications

• Product Type: Hardware Kit
• Configuration: 2-Speed Long Shaft
• Switch Positions: 6-position
• Kit Contents: Knob, 6-position switch, motor and pump operation inserts, plain pointer insert, installation instructions

Standard Information

• Brand: DIAL
• Manufacturer Part Number: 7487
