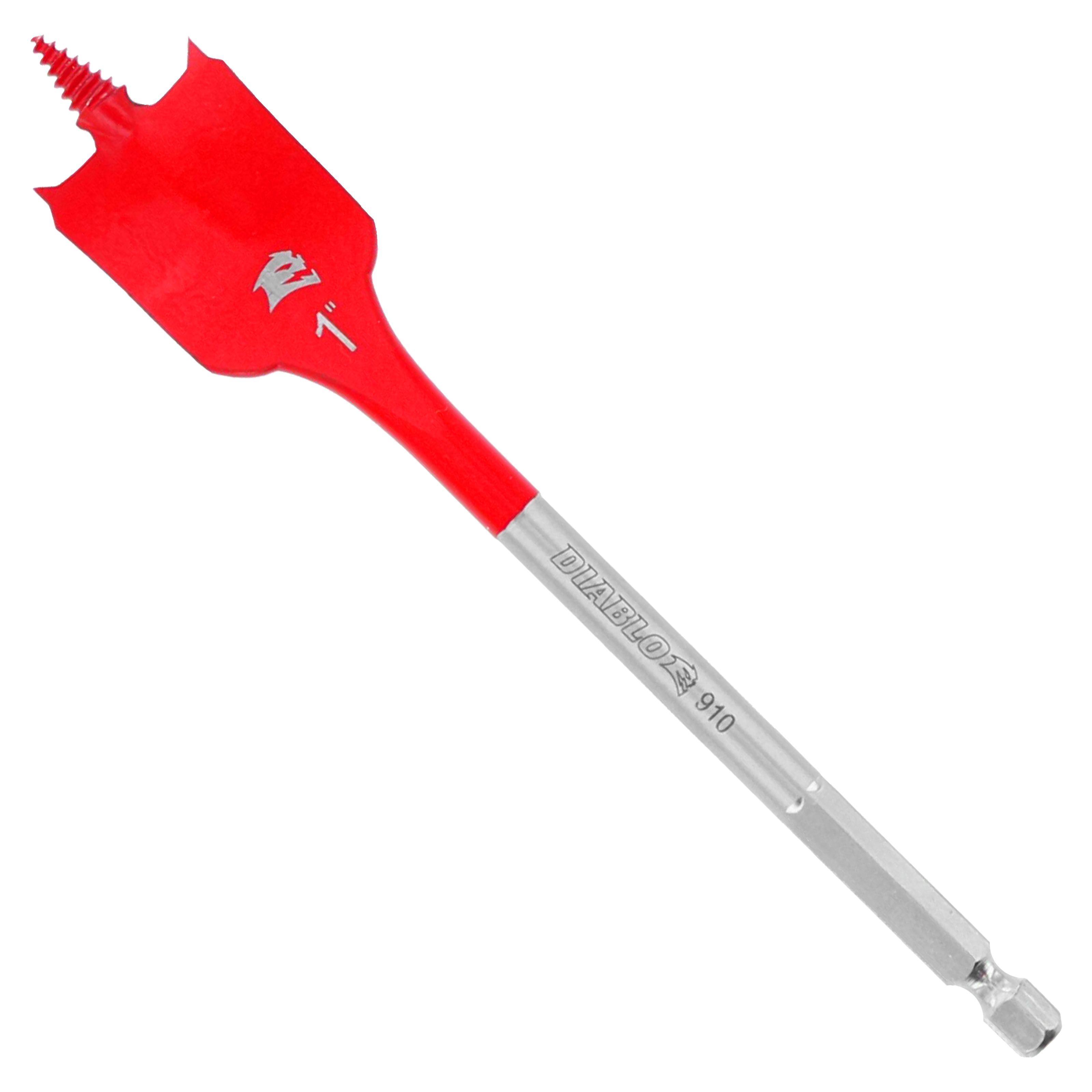

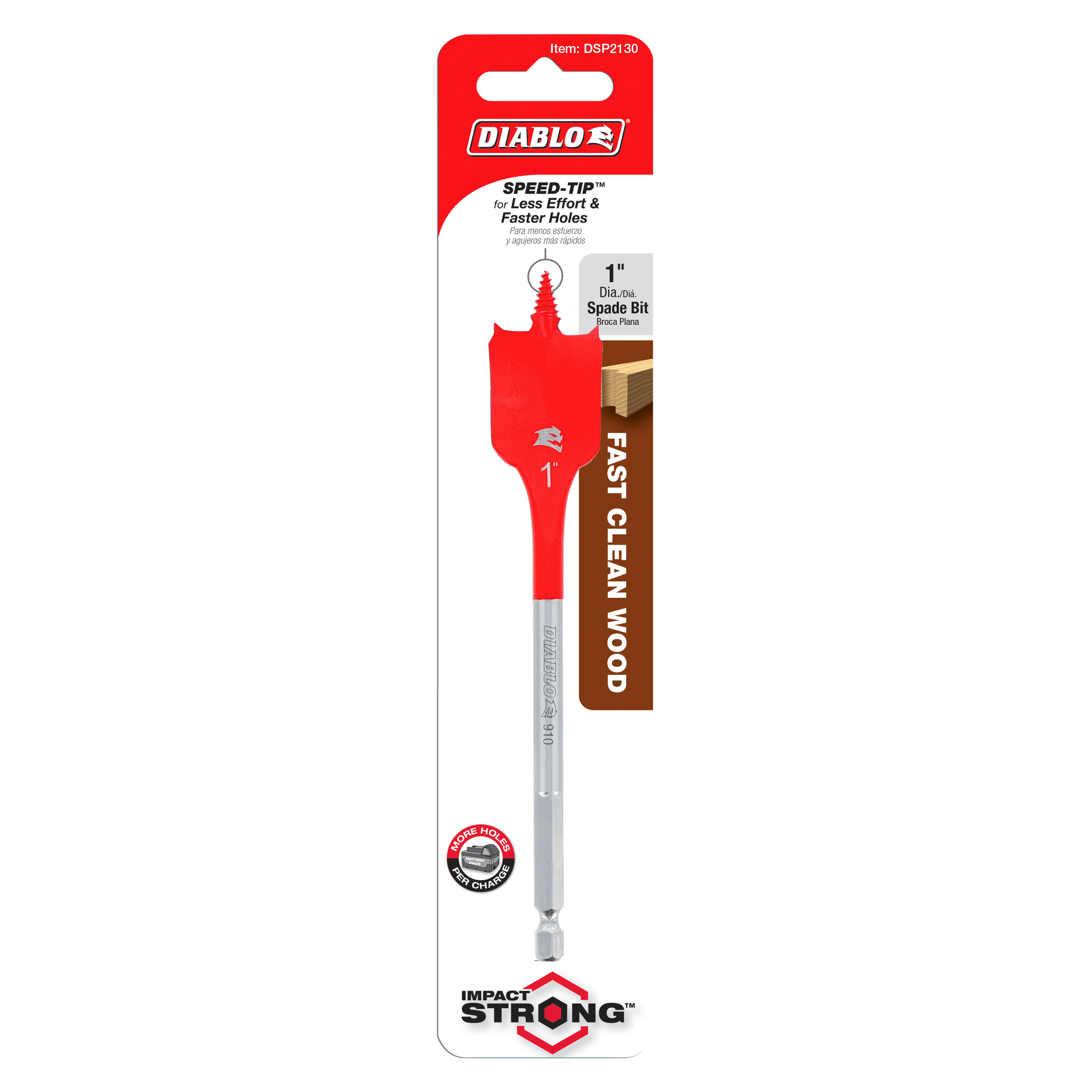

Diablo DSP2130 Spade Bit 1 in. x 6 in.

Product Description

The Diablo DSP2130 spade bit range provides one of the fastest, most effortless hole drilling solutions on the market for fast, clean wood. The high-performance SPEED-TIP design self-feeds for faster hole making when compared to traditional spade bits. An optimized Curved Paddle design enhances the chip evacuation process for more holes per charge. This bit is Impact Strong for increased shank stability and durability in cordless and corded impact and drill drivers.

• SPEED-TIP self-feed design effortlessly pulls the bit with minimal effort and faster holes
• Optimized curved paddle design quickly removes chip build-up for more holes per charge
• Impact Strong increases shank stability and durability
• Angled spur cutting edge scores wood for clean holes and reduced blowout

Product Highlights

The Diablo spade bit is designed for drilling clean wood with speed and efficiency. Its self-feeding tip and optimized curved paddle ensure fast hole creation and chip removal.

Product Information

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DSP2130
• Country of Origin: Switzerland

Technical Specifications

• Product Type: Spade Bit
• Category1: Machining
• Category2: Drilling & Holemaking
• Category3: Drill Bits
• Category4: Drill Bits for Wood
• Unit Length (in.): 6 in.
• Bit Type: Impact
• Length [In]: 6
• Bit Diameter: 1"
• Bit Material: High Speed Steel
• Self Feeding: No
• Case Included: No
• Drill Bit Type: Impact
• Package Contents: 1 in. x 6 in. SPEEDemon™ Spade Bit
• Minimum Chuck Size: 3/8 in
• Drilling Depth (In): 6
• Shank Diameter (In): 0.25
• Single / Double Ended: Single
• Minimum Chuck Size Required: 1/4 in
• Quick Change Impact Driver Bit: Yes
• Category: Drilling Boring
• Number of Cutters: 2
• Brand: Diablo
• Material: High Speed Steel Cutting Edge
• Point Type: Self-Feeding Speed-Tip
• For Use With: Cordless and Corded Impact and Drill Drivers
• Catalog Number: DSP2130
• Shank Diameter: 0.4|in
• Material Compatibility: Clean Wood
• MPN: DSP2130
• Make: FREUD TOOLS/DIABLO TOOLS
• Diameter: 1"
• Shank: 1/4" Hex
• Length: 6"
• Pack Quantity: 1
• Brand Name: Diablo Tools
• Assembled Depth (in): 8.9
• Assembled Weight (lbs): 0.22
• Assembled Width (in): 2.9
• Blade Length (in): 6"
• Brand / Model Compatibility: Compatible
• California Proposition 65 Warning Required: Yes
• Country of Origin: Switzerland
• Height (in): 0.5
• Model: DSP2130
• California Prop 65 Warning: WARNING - https: www.p65warnings.ca.gov/
• UPC: 008925153252
