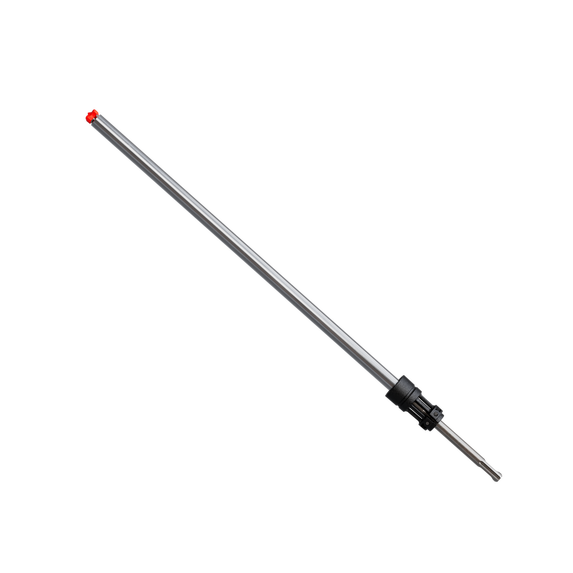

Diablo DMAPLA4520 Amped Rebar Demon 4-Cutter SDS-Plus 5/8 in x 16 in x 22 in

Product Description

The Diablo DMAPLA4520 is a 5/8 in Amped Rebar Demon SDS-Plus dust extraction hammer drill bit with a 4-cutter full-carbide head for drilling clean holes in concrete and reinforced concrete. It measures 22 in overall with a 16 in working length, uses Dura-Carbide construction rated to 1800�F and Tri-Metal Fusion Welding, and includes a precision 90� pyramid tip and removable stainless-steel dust sleeve for vacuum extraction up to 97% during dry drilling.

• Dura-Carbide 4-cutter tungsten full-carbide head with Tri-Metal Fusion Welding and precision 90� pyramid tip; rated to 1800�F

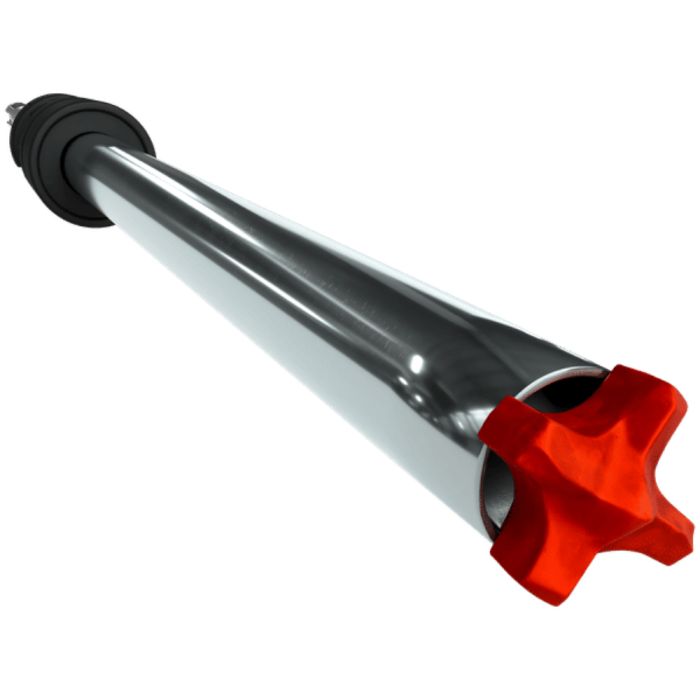

• Removable stainless-steel dust sleeve compatible with Snap-Lock adapter (sold separately) for up to 97% dust extraction
• SDS-Plus shank, 5/8 in diameter, 16 in maximum drilling depth (working length), 22 in overall length; optimized for corded and cordless SDS-Plus rotary hammers

Product Highlights

4-cutter full-carbide SDS-Plus bit with removable dust sleeve and up to 97% dust extraction for drilling reinforced concrete and rebar; 5/8 in diameter, 16 in drilling depth.

Product Information

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DMAPLA4520
• Country of Origin: Germany

Technical Specifications

• Brand: DIABLO
• MPN: DMAPLA4520
• Diameter: 5/8 in (0.625 in)
• Overall Length: 22 in
• Working Length: 16 in
• Maximum Drilling Depth: 16 in
• Shank Type: SDS-Plus
• Shank Diameter: 10 mm
• Number of Cutters: 4
• Head Type: Full carbide head (4-cutter)
• Tip Type: Precision 90� pyramid tip
• Material / Construction: Dura-Carbide full-carbide head; carbide tipped; steel body
• Dust Extraction Efficiency: Up to 97% (with removable stainless-steel dust sleeve and vacuum connection)
• Dust Extraction System: Removable stainless-steel dust sleeve; Snap-Lock adapter compatibility (Snap-Lock adapter sold separately)
• Compatibility: Optimized for corded and cordless SDS-Plus rotary hammers
• Application / Suitable Materials: Concrete, reinforced concrete, rebar, block, brick, stone, natural stone
• Heat Resistance: Withstands up to 1800�F
• Weld Type: Tri-Metal Fusion Welding
• Pack Quantity: 1
