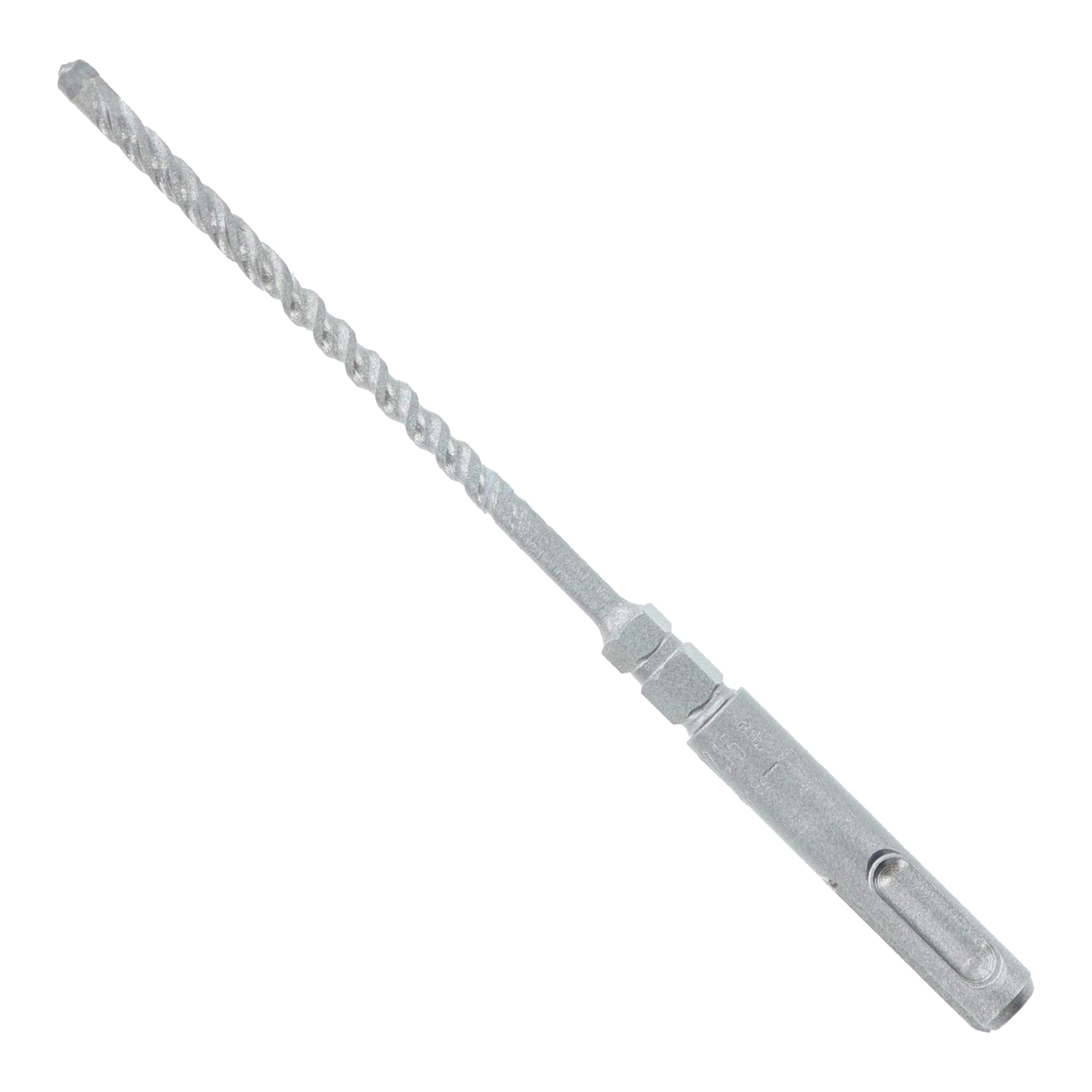

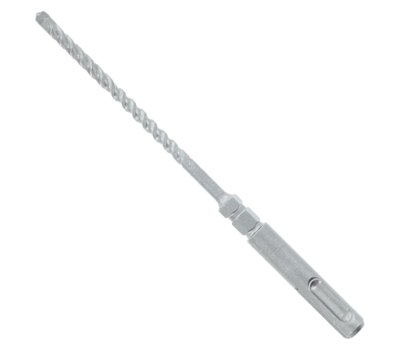

Diablo DMAPL2920 3/16 in. x 3-1/2 in. x 6 in. SDS-Plus Full Carbide Head Concrete Anchor Hammer Drill Bit

Product Description

The Diablo DMAPL2920 is an SDS-Plus 4-cutter full-carbide head concrete anchor hammer drill bit. It is designed to withstand the stress of high-powered hammer drills and the impact of rebar cutting. Produced with Tri-Metal Diffusion Bonding technology, the full-carbide head resists heat and prevents breakage. Optimized for maximum performance in corded and cordless SDS-Plus rotary hammers.

• Full-carbide head withstands stress and impact for durability.
• Tri-Metal Diffusion Bonding technology resists heat and prevents breakage.
• Precision tip delivers stability and accuracy for fast, precise holes.

Product Highlights

This concrete anchor hammer drill bit is designed for drilling concrete, brick, and block. Its carbide tips extend life and productivity.

Product Information

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DMAPL2920
• Country of Origin: United States

Technical Specifications

• MPN: DMAPL2920
• Brand: DIABLO
• Product Type: Carbide Head Concrete Anchor Hammer Drill Bit
• Category1: Machining
• Category2: Drilling & Holemaking
• Category3: Drill Bits
• Category4: Drill Bits for Masonry & Concrete
• Unit Length (in.): 6 in.
• Bit Type: Impact
• Color Coded: No
• Length [In]: 6
• Shank Style: SDS
• Bit Diameter: 3/16"
• Bit Material: High Carbon Steel
• Case Included: No
• Chuck Fitment: SDS
• Drill Bit Type: Percussion Bit
• Flute Length (In): 3.5
• Drilling Depth (In): 3.5
• Single / Double Ended: Single
• Recommended Safety Equipment: Standard
• Etched / Stamped Size Identification: Yes
• Material: Carbide Head
• Catalog Number: DMAPL2920
• Diameter: 3/16 in
• Shank: SDS Plus
• Length: 6"
• Working Length: 3-1/2"
• Number of Cutters: 2
• Pack Quantity: 1
• Bit Length (in.): 6 in
• Number of Flutes: 4
• Flute Length: 3-1/2 in
• Shank Type: SDS Plus
• Point Type: 2-Cutter
• Cutting Edge Material: Carbide
• Overall Length: 6 in
• Applicable Materials: Concrete, Brick/Block
• Suitable for: Corded and Cordless SDS Plus Rotary Hammers
• Type: Drill Bit
• Model: DMAPL2920
• UPC: 008925150985
• Country of Origin: United States
