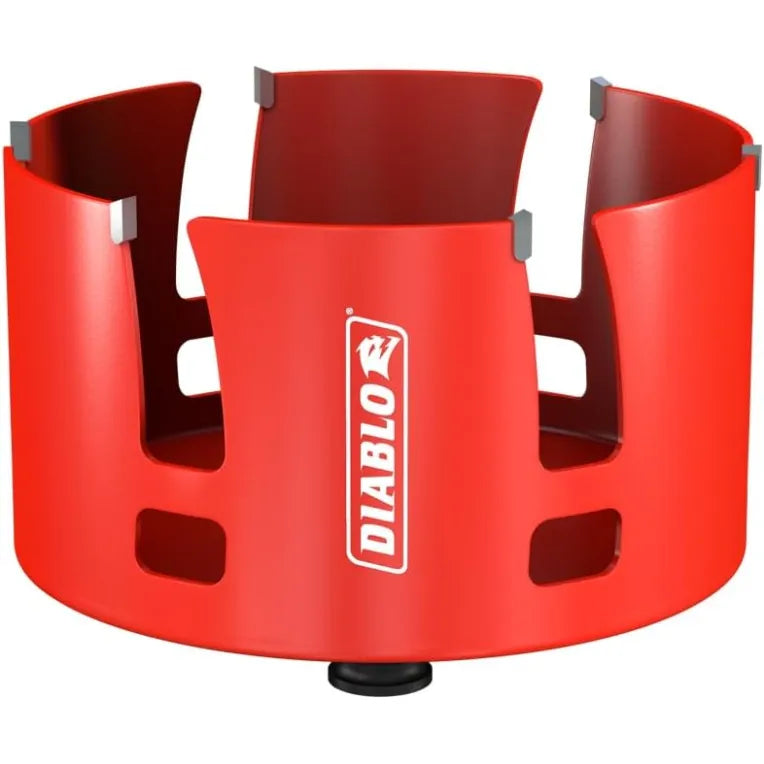

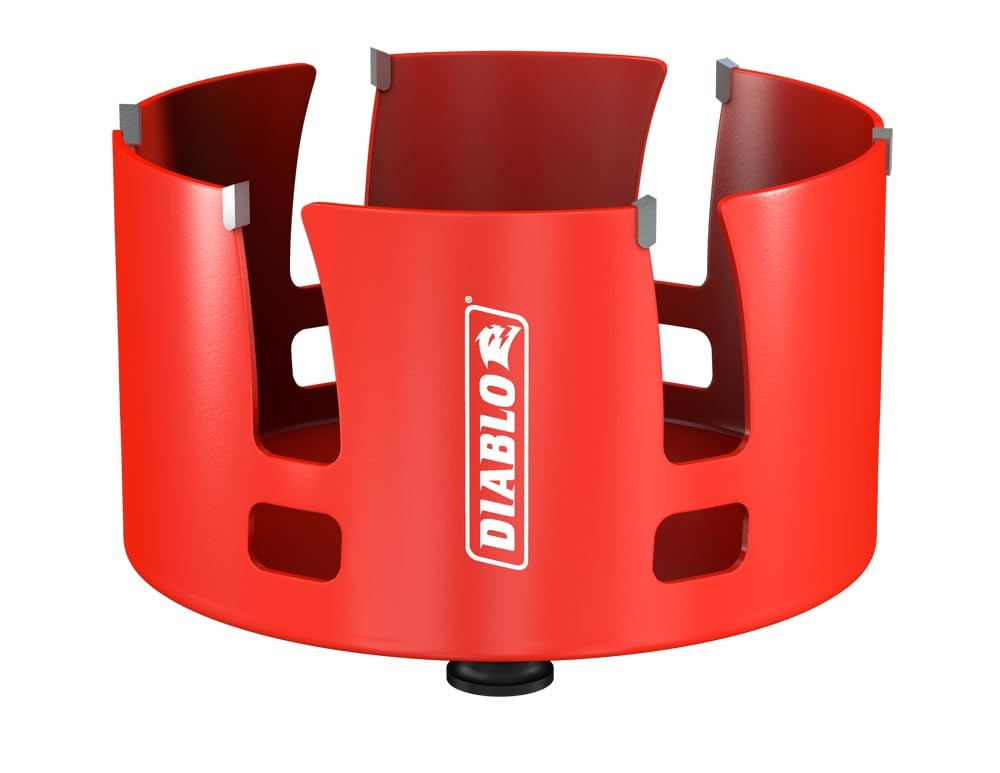

Diablo DHS4625CTR Demo Demon Carbide Hole Saw 4-5/8 in

Product Description

The DIABLO DHS4625CTR is a carbide-tipped rough-in hole saw engineered for high-demand cutting in nail-embedded wood, clean wood, drywall, shingles, and fiber cement. The 4-5/8 inch diameter cup delivers a cutting depth of 2-3/8 inches, allowing most rough-in bores to be completed in a single pass. Enhanced carbide tooth geometry accelerates material removal and extends tool life well beyond standard bi-metal alternatives. Licensed tradespeople, remodelers, and experienced DIYers working on rough-in plumbing, electrical, or HVAC penetrations will find this saw suited to repetitive, production-rate drilling in mixed job-site materials.

This hole saw is built for use with right-angle drills and standard hand-held drills. It is particularly effective in remodel and retrofit scenarios where existing framing may contain embedded fasteners that would destroy conventional hole saws. The 4-5/8 inch diameter is a common rough-in size for plumbing drain lines, recessed fixtures, and duct penetrations in residential and light commercial construction. Integration with the Diablo SnapLock PLUS mandrel system allows cup changes without tools, reducing downtime during production drilling runs.

Key Features

• 4-5/8 inch diameter matches common rough-in sizing for plumbing, electrical, and HVAC penetrations
• 2-3/8 inch cutting depth allows single-pass boring through standard framing members
• Carbide teeth rated for cutting nail-embedded wood, drywall, shingles, and fiber cement
• Optimized tooth geometry for faster cutting with reduced feed force
• Tool-free plug ejection speeds material removal and cleanup between cuts
• Compatible with all Diablo hole saws from 5/8 inch to 6 inch diameter via SnapLock PLUS mandrel

Compatibility

Compatible with all Diablo hole saws from 5/8 inches to 6 inches diameter when used with the Diablo SnapLock PLUS mandrel. Suitable for use with right-angle or hand-held drills.

Installation Notes

Install the hole saw onto a compatible mandrel before securing to the drill chuck. Power down and disconnect from the power source before changing cups or clearing plugs. Wear appropriate eye and hearing protection when cutting through nail-embedded or composite materials. Follow applicable trade codes for penetration sizing and fire-blocking requirements at finished openings.
