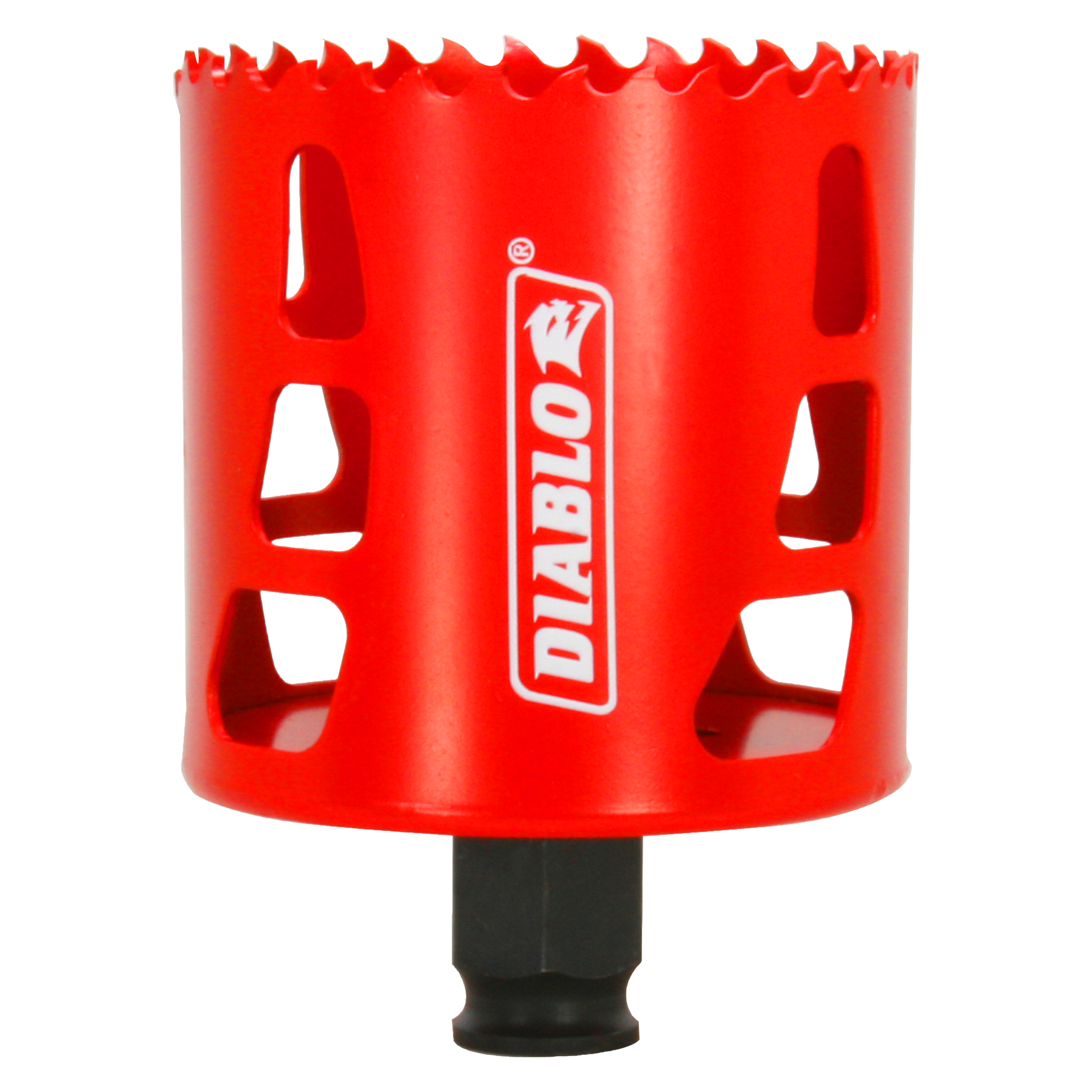

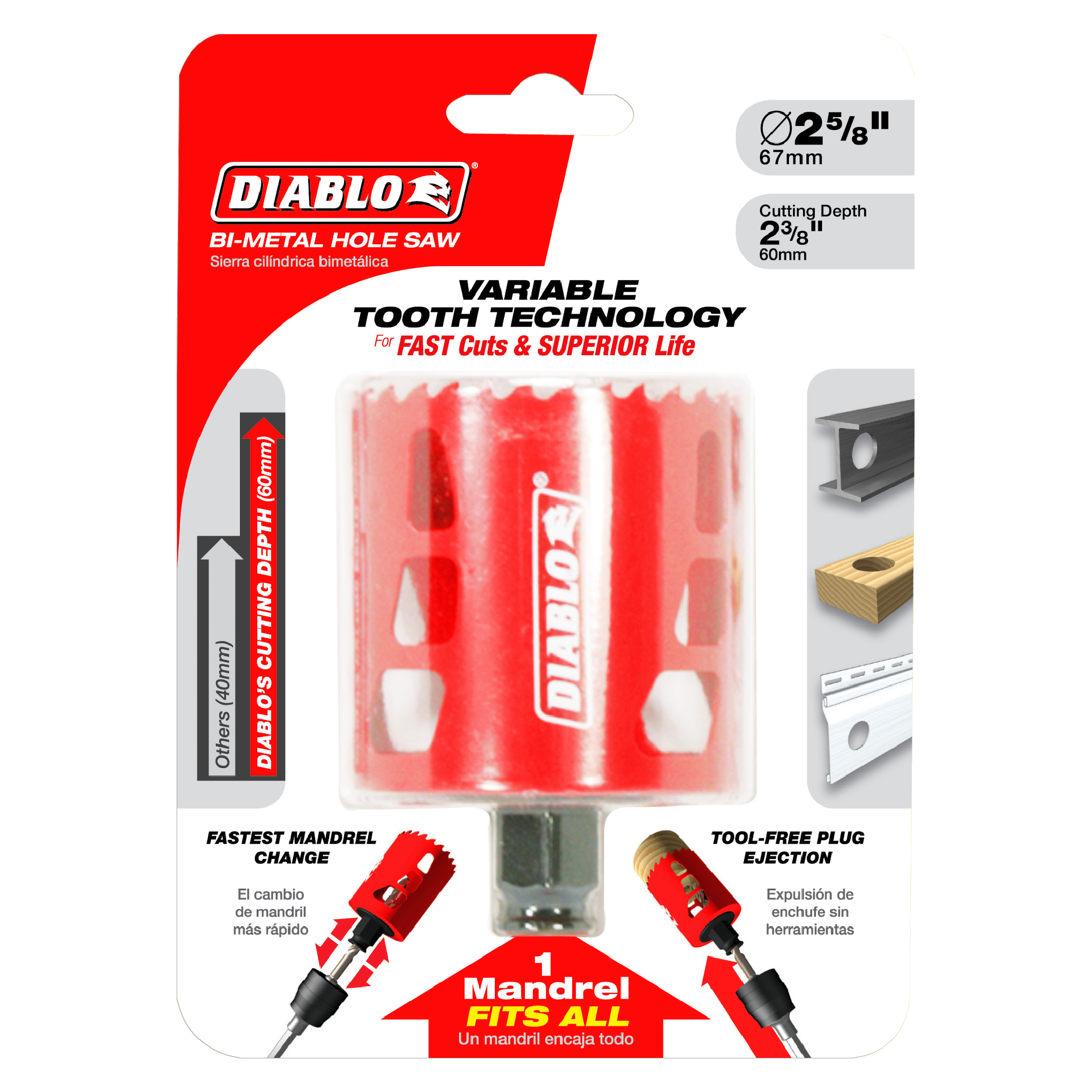

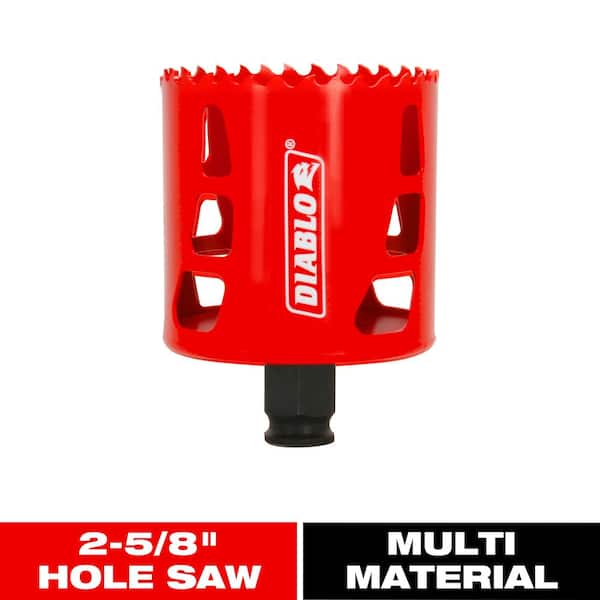

Diablo DHS2625 2-5/8 in. Bi-Metal Hole Saw

Product Description

The Diablo DHS2625 2-5/8 In. Bi-Metal Hole Saw delivers faster cutting performance and increased productivity. Diablo’s hole saw system and mandrel design simplify the attachment process for fast and efficient hole saw mounting. These hole saws provide ultimate cutting length to bore deeper holes in a single pass, with tool-free plug ejection and variable tooth design for faster cuts.

• 60 mm (2-3/8 in.) cutting depth for 40% deeper holes in 1 pass and increased productivity
• Fits with Snap-Lock Plus mandrel system allowing a quick and easy change with no down time
• Variable Tooth Design provides faster cuts with less vibration

Product Highlights

This bi-metal hole saw is intended for use with a drill press or hand-held drill for wood, plastic, aluminum, metal and stainless steel.

Product Information

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DHS2625
• Country of Origin: CN

Technical Specifications

• MPN: DHS2625
• Diameter: 2-5/8"
• Material: Bi-Metal
• Length [In]: 2.375
• Bit Type: Hole Saw
• Case Included: No
• Hole Saw Type: Wood and Metal
• Drill Bit Type: Hole Saw
• Package Contents: 2-5/8 in. Hole Saw
• Hole Saw Material: Bi-Metal
• Minimum Chuck Size: 3/8 in
• Drilling Depth (In): 2.375
• Nominal Product Depth: 0
• Assembled Weight [Lbs]: 0.64
• Minimum Chuck Size Required: 3/8 in
• Recommended Safety Equipment: Standard
• Shank: Diablo Mandrel
• Length: 2-3/8"
• Bit Material: Bi-Metal
• Cutting Depth: 2-3/8 Inch
• Type: Variable Pitch
• Arbor Size: 3/8 in
• Shank Type: Mandrel
• Tooth Type: Variable Pitch
• Pilot Drill Size: 1/4 in Dia x 3-1/2 in L
• Cutting Edge Material: Bi-Metal
• Applicable Materials: Aluminum, Metal, Plastic, Stainless Steel, Wood
