Product Description

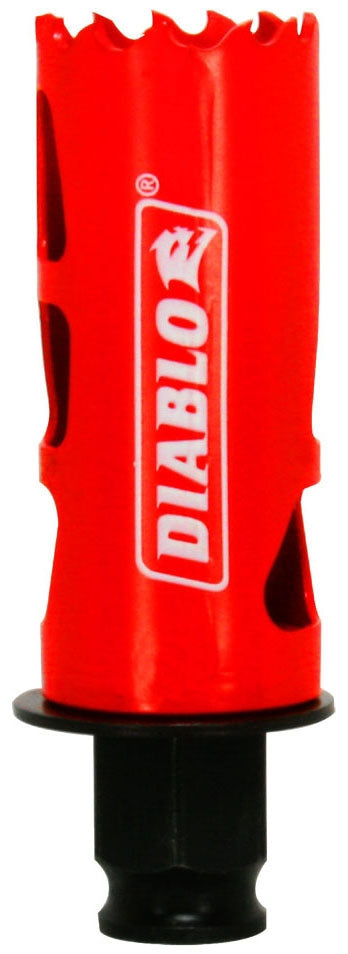

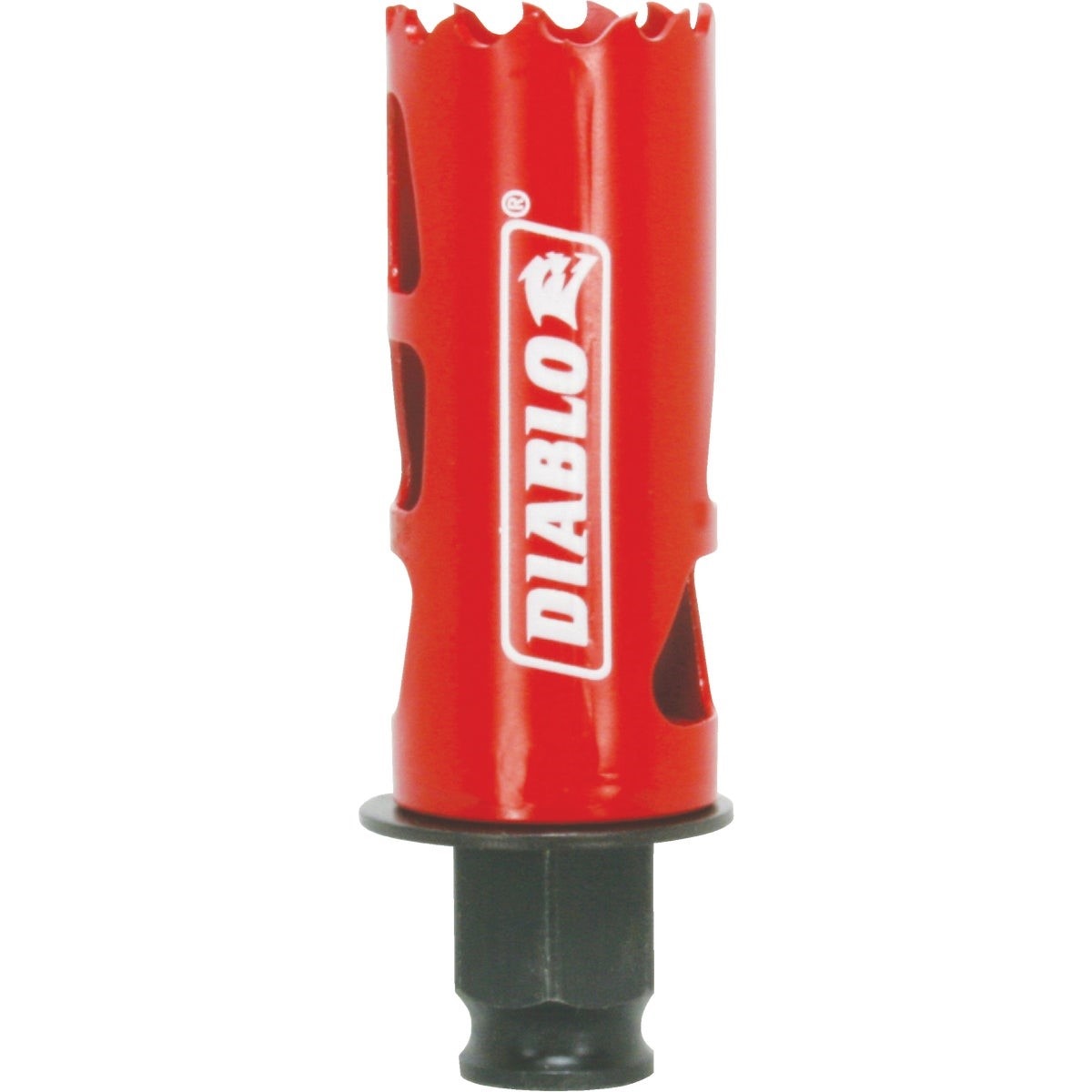

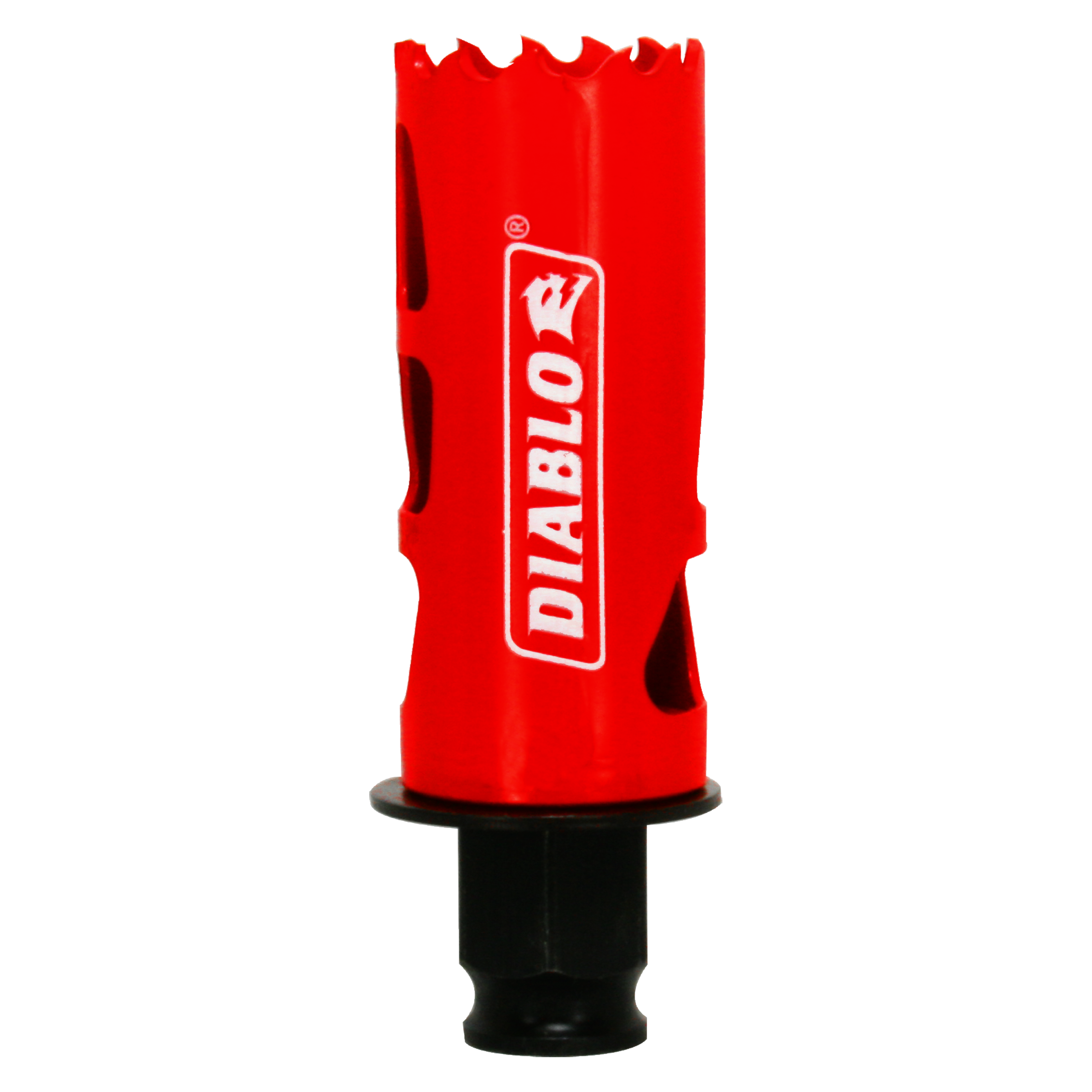

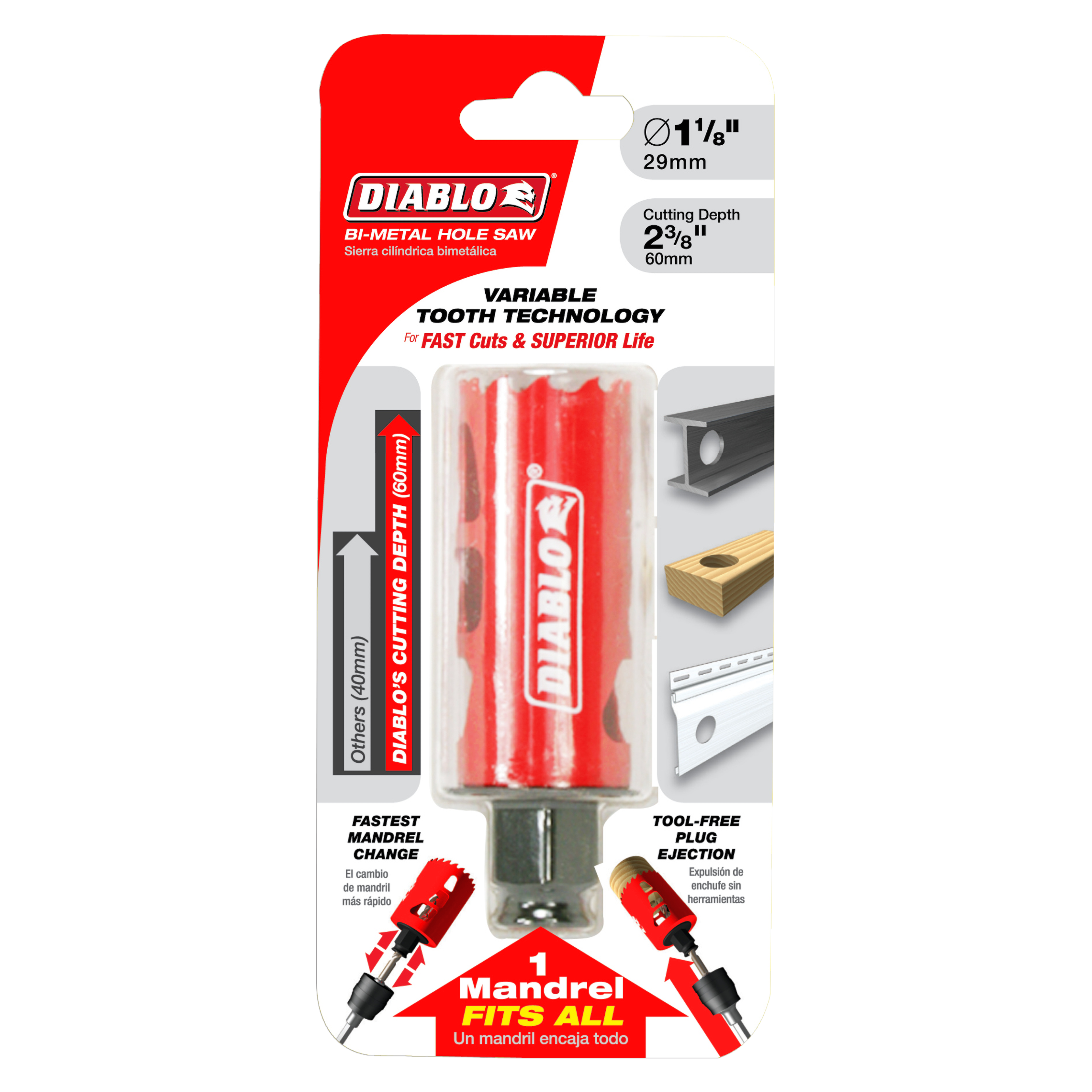

The Diablo DHS1125 1-1/8 In. Bi-Metal Hole Saw delivers faster cutting performance and increased productivity. The hole saw system simplifies the attachment process for fast and efficient mounting. It provides ultimate cutting length to bore deeper holes in a single pass, tool-free plug ejection, and a variable tooth design for faster cuts.
- 60 mm (2-3/8 in.) cutting depth for 40% deeper holes in 1 pass and increased productivity

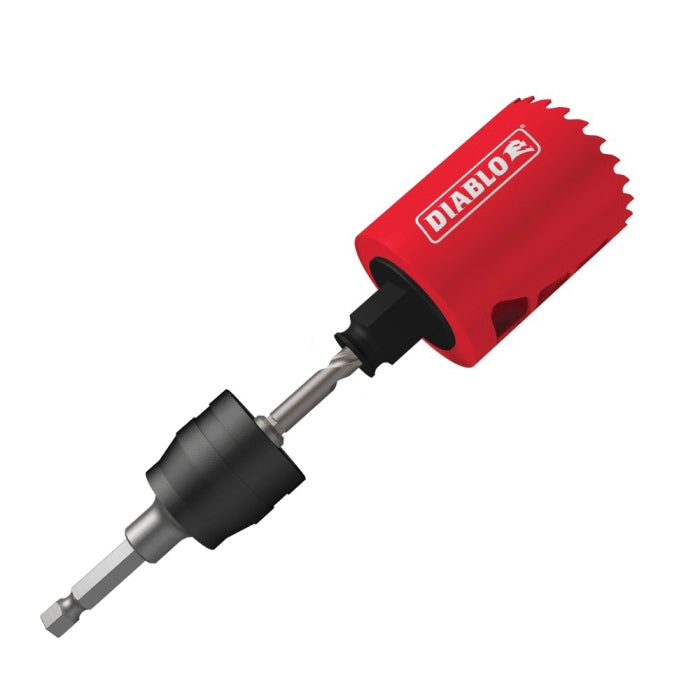

- Fits with Snap-Lock Plus mandrel system allowing a quick and easy change with no down time
- Variable Tooth Design provides faster cuts with less vibration
Product Highlights
This bi-metal hole saw is designed for use with a drill press or hand-held drill, and drills wood, plastic, aluminum, metal and stainless steel.
Product Information
Standard Information
-
Brand: DIABLO
-
Manufacturer Part Number: DHS1125
-
Country of Origin: CN
Technical Specifications
-
MPN: DHS1125
-
Brand: Diablo
-
Diameter: 1-1/8 in
-
Applicable Materials: Wood, Plastic, Aluminum, Metal and Stainless Steel
-
Cutting Depth: 2-3/8 in
-
Overall Length: 2-3/8 in
-
Bit Diameter: 1/4 in
-
Bit Length (in.): 3.5
-
Drilling Depth (in): 2.375
-
Hole Saw Diameter (in): 1-1/8"
-
Shank Diameter: 3/8 in
-
Cutting Dia.: 1.125 in
-
Material: Bi-Metal
-
Shank Type: Hex
-
Type: Variable Tooth
-
Arbor Shank Type: Mandrel
-
Cut Material: Drill Wood, Plastic, Aluminum, Metal, Stainless Steel
-
Unit Length (in.): 2-3/8 in.
-
Minimum Chuck Size: 3/8 in
-
Minimum Chuck Size Required: 3/8 in
-
Hole Saw Type: Multipurpose
-
Length [In]: 2.375
-
Arbor Type: Hole Saw
-
Shank Shape: Hex
-
Pitch Pattern: Variable
-
Arbor Shank Diameter: 3/8|in
-
Cutting Edge Material: Bi-Metal
-
Tooth Pattern: Variable Pitch
-
Chuck Size: 3/8 Inch
-
Shank Size: 3/8 Inch
-
Arbor Size: 3/8 in
-
Suitable for: Diablo's SnapLock Plus Mandrel System, Hand-Held Drill and Drill Press
-
Tooth Type: Variable Pitch
-
Pilot Drill Size: 1/4 in Dia x 3-1/2 in L
