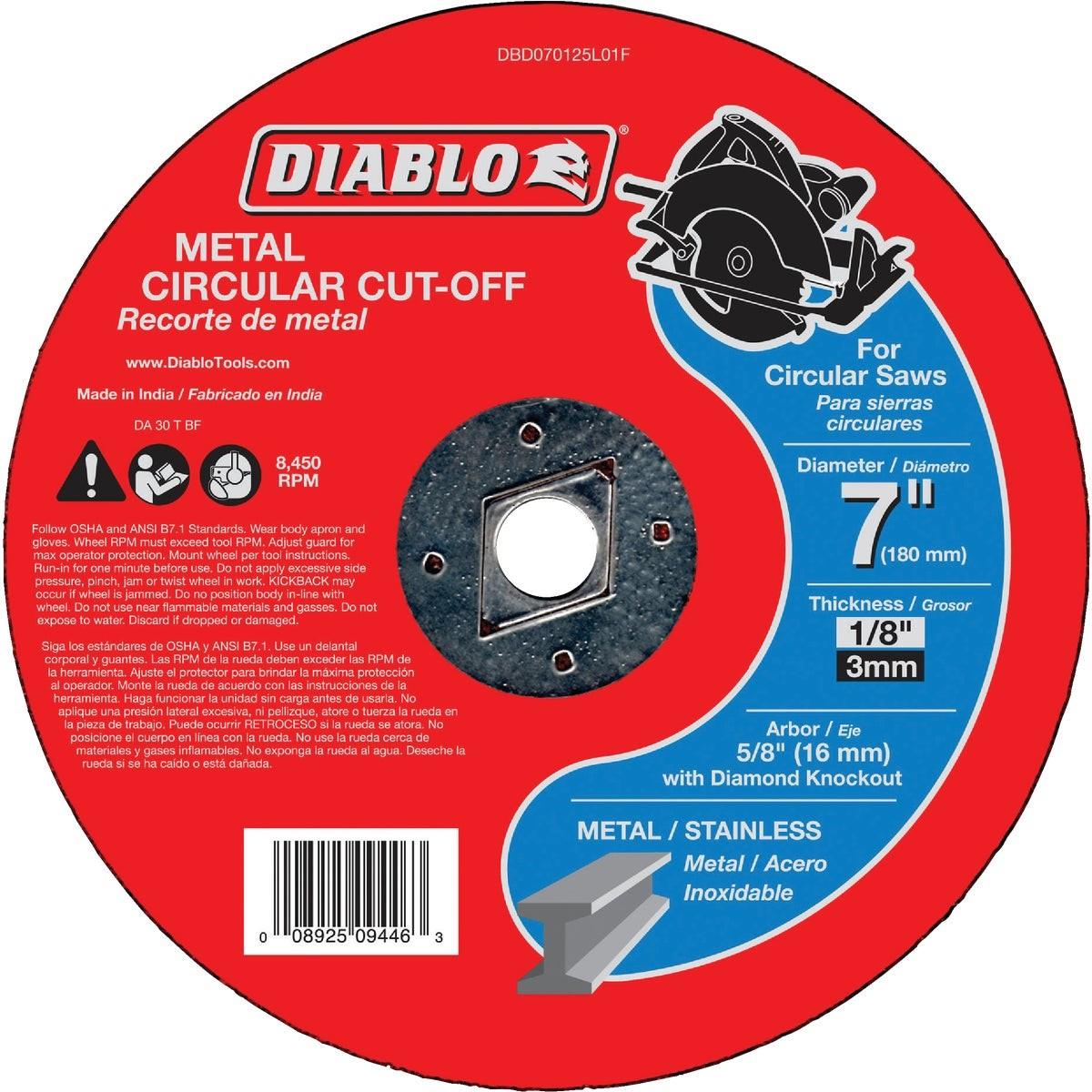

Diablo DBD070125L01F 7 in Type 1 Metal Cut-off Wheel

Product Description

The DIABLO DBD070125L01F is a Type 1 flat cut-off wheel engineered for fast, clean cutting on metal. It measures 7 inches in diameter, 1/8 inch thick, and has a 5/8-inch arbor bore. The wheel uses a premium aluminum oxide abrasive blend formulated for rapid material removal and extended cutting life. It is designed for use on angle grinders and cut-off machines and is a common consumable stocked by metalworkers, pipefitters, and fabricators working in shop or field conditions.

This cut-off wheel is suited for cutting steel, stainless steel, cast iron, and sheet metal in both light industrial and heavy fabrication settings. The Type 1 flat profile makes it appropriate for straight cuts and is compatible with standard guard configurations on 7-inch angle grinders. Minimum order quantity is 3 wheels per purchase.

Key Features

• Premium aluminum oxide abrasive blend for fast stock removal and long wheel life
• Type 1 flat profile supports straight, controlled cuts
• 7-inch diameter fits standard 7-inch angle grinders
• 5/8-inch arbor bore for direct mounting on common spindle sizes
• 1/8-inch wheel thickness balances cut speed with material control
• Rated for metal applications including steel, stainless steel, cast iron, and sheet metal

Compatibility

Designed for use on 7-inch angle grinders and cut-off machines accepting a 5/8-inch arbor bore. Suitable for cutting steel, stainless steel, cast iron, and sheet metal.

Installation Notes

Cut-off wheels are installed and replaced by metalworkers, pipefitters, fabricators, and maintenance trades. Always power down and disconnect the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before each use and never exceed the maximum RPM rating marked on the wheel. Follow ANSI B7.1 and tool manufacturer guidelines for proper guard installation and safe operating procedures.

Technical Specifications

• Diameter: 7 inches
• Thickness: 1/8 inch
• Arbor Bore: 5/8 inch
• Abrasive Type: Aluminum oxide blend
• Wheel Type: Type 1 flat
• Application: Steel, stainless steel, cast iron, sheet metal
• Weight: 0.448 pounds
• Sold As: Each

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DBD070125L01F
