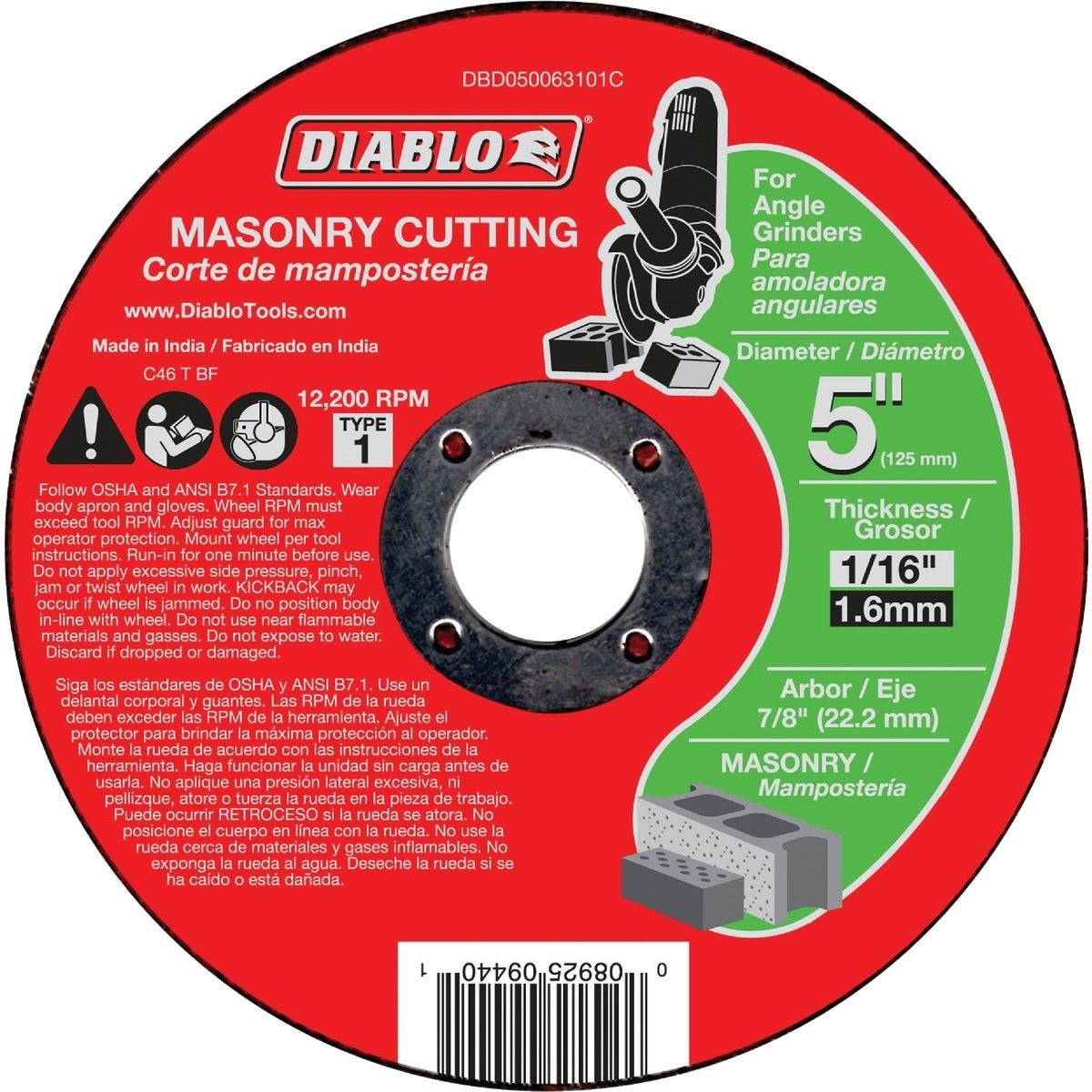

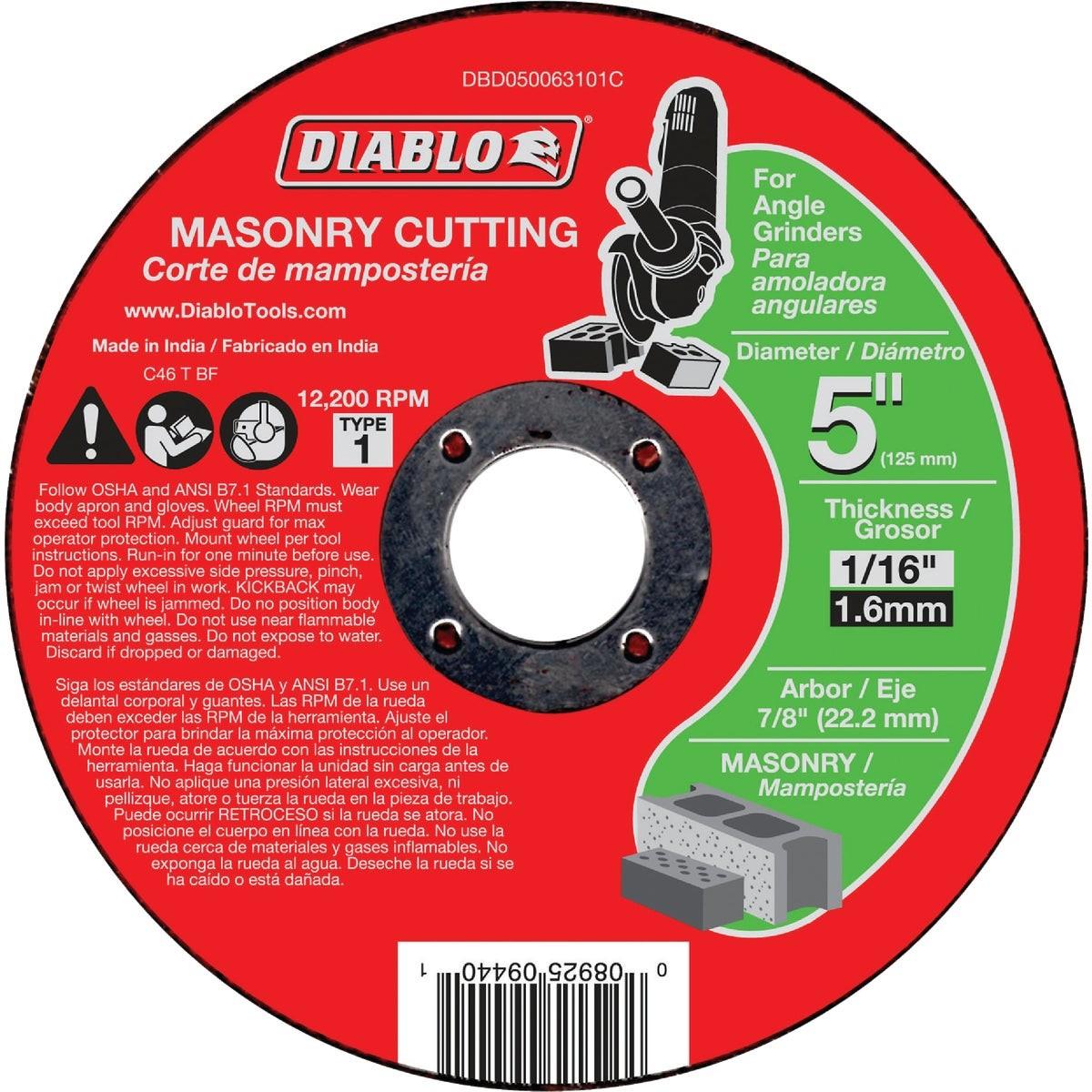

Diablo DBD050063101C 5 in Masonry Cut-off Wheel

Product Description

The DIABLO DBD050063101C is a Type 1 flat-profile masonry cut-off wheel designed for angle grinders and cut-off tools used in concrete and masonry work. Built with a silicon carbide blend abrasive formulation, this wheel delivers fast material removal rates and extended cutting life compared to standard bonded abrasives. Measuring 5 inches in diameter, 1/16 inch thick, and with a 7/8 inch arbor bore, it fits common right-angle grinders used daily by masonry contractors, tile setters, and general construction tradespeople. The thin 1/16 inch kerf minimizes material loss per cut and reduces heat buildup at the cutting zone.

This cut-off wheel is intended for dry cutting applications on masonry and concrete materials in both residential and commercial construction environments. Typical use cases include cutting concrete brick, cinder block, cement board, and paver stones. It is well suited for layout scoring, trimming, and rough cutting tasks where a powered cut-off tool or angle grinder is the preferred method. The wheel is sold individually and is appropriate for any trade or contractor working with hard masonry substrates on the job site.

Key Features

• Silicon carbide blend abrasive formulated for fast cutting on masonry and concrete
• Type 1 flat profile for straight cut-off applications on angle grinders
• Thin 1/16 inch kerf reduces material waste and cutting heat
• 7/8 inch arbor bore fits standard right-angle grinder spindles
• Rated for use on concrete brick, cinder block, cement, and paver stones

Compatibility

Designed for use on masonry applications including concrete brick, cinder block, cement, and paver stones. Fits angle grinders and cut-off tools with a 7/8 inch arbor and accepting a 5 inch diameter Type 1 wheel.

Installation Notes

Installation and wheel changes must be performed with the grinder unplugged or the power source locked out. Inspect the wheel for cracks or chips before mounting — never use a damaged abrasive wheel. Ensure the grinder guard is properly positioned before operation, in accordance with ANSI B7.1 safe use requirements for abrasive wheels. This product is intended for use by qualified tradespeople familiar with angle grinder operation and applicable job site safety standards.

Technical Specifications

• Wheel Type: Type 1 (flat)
• Diameter: 5 inches
• Thickness: 1/16 inch
• Arbor Bore: 7/8 inch
• Abrasive Material: Silicon carbide blend
• Application: Masonry, concrete, cinder block, paver stones
• Weight: 0.106 pounds
• UPC: 00008925094401

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DBD050063101C
