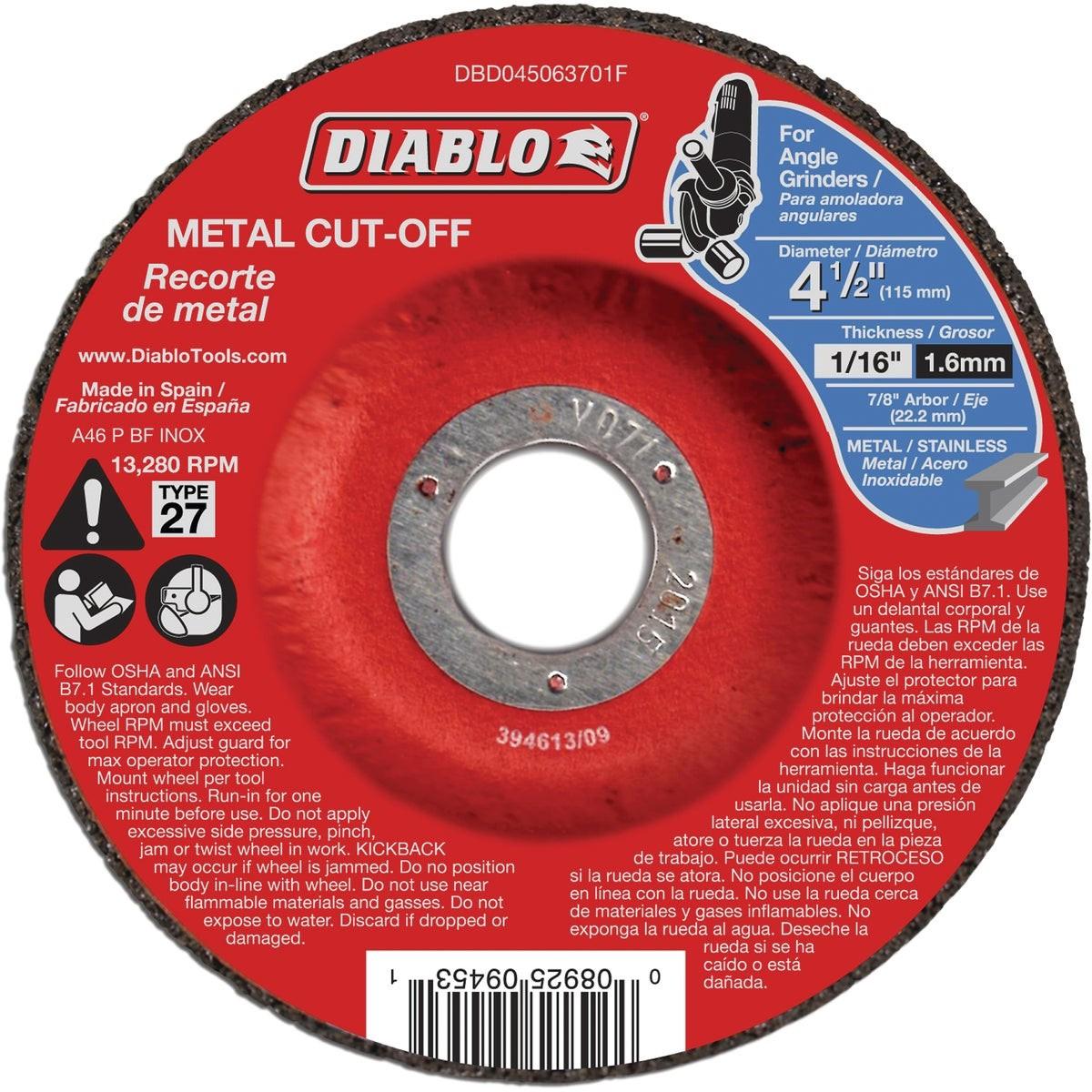

Diablo DBD045063701F Type 27 Metal Cut-off Wheel

Product Description

The DIABLO DBD045063701F is a Type 27 depressed-center cut-off wheel designed for fast, clean cutting on metal surfaces. Measuring 4.5 inches in diameter, 0.0625 inches thick, and with a 0.875-inch arbor bore, this wheel uses a premium aluminum oxide blend formulated for rapid material removal and extended cutting life. Fully reinforced construction supports use in hand-held angle grinders operating in confined or hard-to-reach spaces. Licensed HVAC techs, plumbers, electricians, and general trade professionals reach for this wheel when precision cuts on metal are required in tight work areas.

This cut-off wheel is suited for residential and commercial trade applications involving metal fabrication, pipe cutting, sheet metal work, and structural steel modification. Its slim 0.0625-inch profile minimizes material loss at the cut line, reducing rework. The Type 27 profile keeps the wheel face depressed relative to the flange, improving sight lines during the cut and reducing interference in recessed areas.

Key Features

• Premium aluminum oxide blend for fast material removal and long cutting life
• Type 27 depressed-center profile improves visibility and access in confined spaces
• Fully reinforced construction rated for hand-held angle grinder use
• 0.0625-inch thin kerf profile minimizes material waste at the cut
• Compatible with metal applications including steel, stainless steel, cast iron, and sheet metal

Compatibility

Designed for cutting steel, stainless steel, cast iron, and sheet metal. Fits angle grinders accepting a 0.875-inch arbor bore with a maximum 4.5-inch wheel diameter.

Installation Notes

Installation and use should be performed by qualified trade professionals following ANSI B7.1 safety requirements for abrasive wheels. Always inspect the wheel for cracks or damage before mounting and ensure the grinder guard is in place before operation. Power down and disconnect the grinder from its power source before mounting or removing the wheel. Do not exceed the maximum RPM rating marked on the wheel.

Technical Specifications

• Wheel Type: Type 27
• Diameter: 4.5 inches
• Thickness: 0.0625 inches
• Arbor Bore: 0.875 inches
• Abrasive Material: Aluminum Oxide Blend
• Construction: Fully Reinforced
• Application: Steel, Stainless Steel, Cast Iron, Sheet Metal
• Weight: 0.094 pounds
• Sold As: Each

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DBD045063701F
