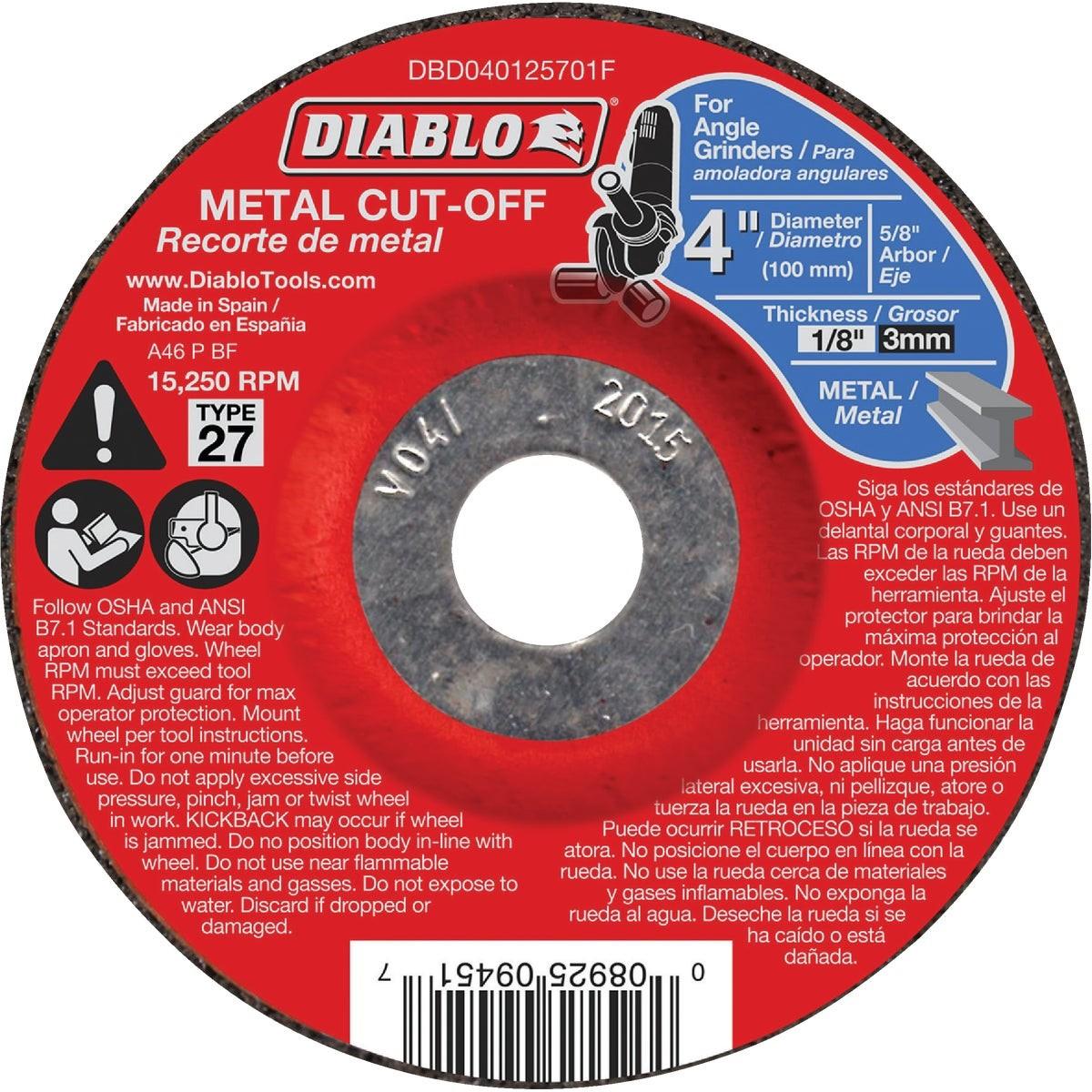

Diablo DBD040125701F Type 27 Metal Cut-off Wheel 4 in

Product Description

The DIABLO DBD040125701F is a Type 27 depressed-center cut-off wheel built for metal cutting in demanding trade applications. Measuring 4 inches in diameter, 1/8 inch thick, and with a 5/8-inch arbor bore, this wheel uses a premium aluminum oxide blend formulated for fast material removal and extended cutting life. Fully reinforced construction supports safe use in hand-held angle grinders. At 0.135 pounds, it is lightweight enough for sustained overhead or confined-space cutting without added fatigue. Licensed trades and general contractors working metal fabrication, pipe work, and structural steel will find this wheel a dependable consumable.

This cut-off wheel is suited for residential and commercial metalwork applications where access is limited or cut precision is required. The Type 27 raised-hub profile reduces the clearance angle needed at the cut, making it practical in tight spaces. Compatible materials include carbon steel, stainless steel, cast iron, and sheet metal, covering the range of ferrous materials commonly encountered in HVAC, plumbing, and structural fabrication work.

Key Features

• Premium aluminum oxide blend for fast cutting and long wheel life
• Type 27 depressed-center profile allows cutting in hard-to-reach areas
• Fully reinforced construction rated for hand-held angle grinder use
• Cuts carbon steel, stainless steel, cast iron, and sheet metal
• Lightweight at 0.135 pounds for reduced operator fatigue
• 5/8-inch arbor bore fits standard angle grinder spindles

Compatibility

Designed for use on metal applications including steel, stainless steel, cast iron, and sheet metal; fits angle grinders with a standard 5/8-inch spindle accepting 4-inch Type 27 cut-off wheels.

Installation Notes

Installation and wheel changes must be performed by a qualified operator following the angle grinder manufacturer guidelines and applicable ANSI B7.1 safety codes for abrasive wheels. Always inspect the wheel for cracks or damage before mounting and never exceed the maximum RPM rating marked on the wheel. Power down and disconnect the grinder from its power source before changing wheels. Always wear appropriate PPE including face shield, gloves, and hearing protection during cutting operations.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Diameter: 4 inches
• Thickness: 1/8 inch
• Arbor Bore: 5/8 inch
• Abrasive Material: Premium Aluminum Oxide Blend
• Compatible Materials: Steel, Stainless Steel, Cast Iron, Sheet Metal
• Weight: 0.135 pounds
• UPC: 00008925094517

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DBD040125701F
