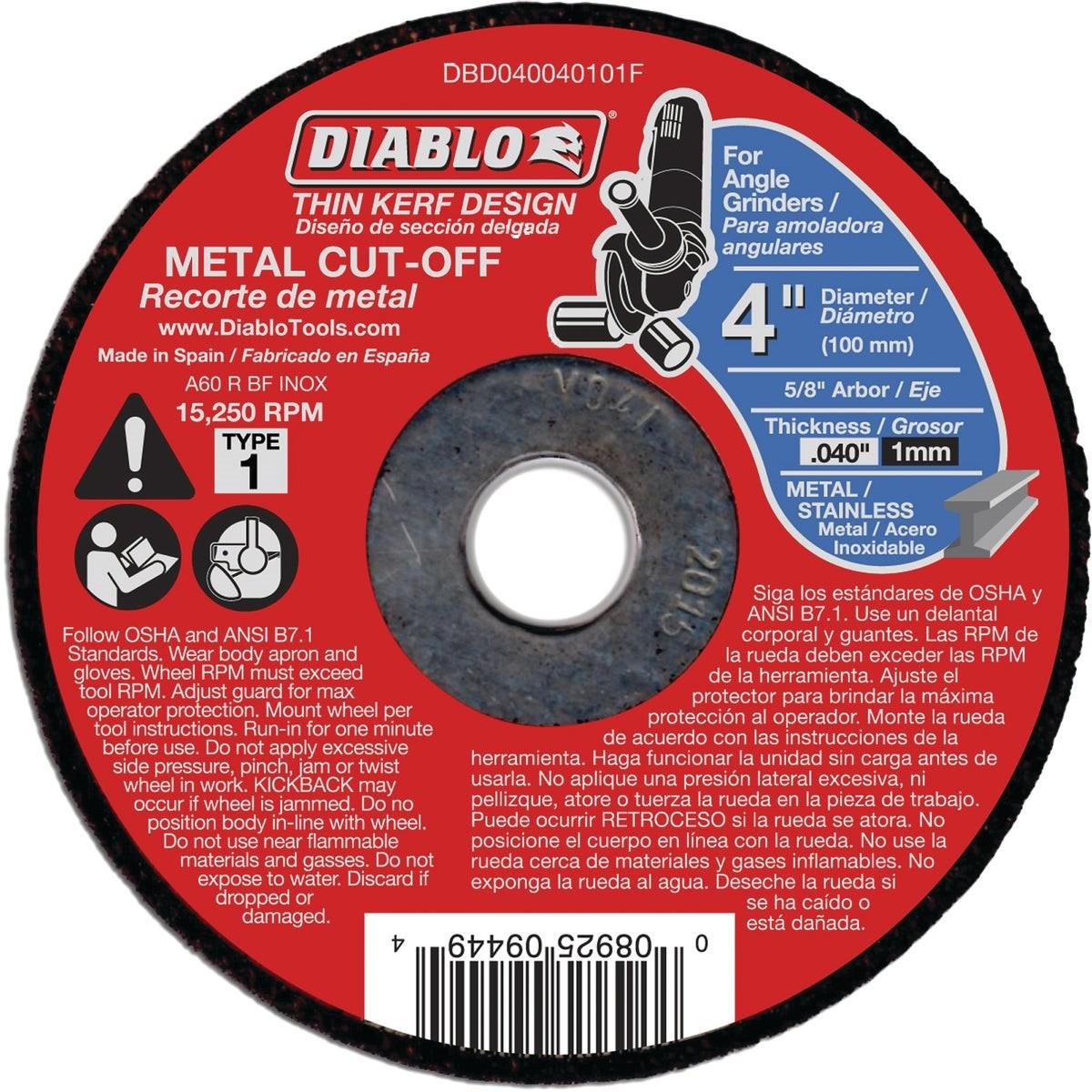

Diablo DBD040040101F Type 1 Metal Cut-off Wheel

Product Description

The DIABLO DBD040040101F is a Type 1 flat cut-off wheel designed for cutting metal in demanding trade applications. Built with a premium aluminum oxide abrasive blend, this wheel measures 4 inches in diameter, 0.040 inches thick, and fits a 5/8 inch arbor. The straight-profile Type 1 geometry delivers consistent, narrow kerfs and clean cuts. Electricians, pipefitters, fabricators, and general tradespeople rely on this wheel size for fast, controlled cuts in tight spaces. At 0.052 pounds, it is lightweight enough for extended use with a standard 4-inch angle grinder without adding fatigue.

This cut-off wheel is suited for use on steel, stainless steel, cast iron, and sheet metal. It fits common 4-inch angle grinders used in residential and commercial job sites, mechanical rooms, fabrication shops, and field service work. The 0.040-inch thickness minimizes material loss per cut, making it practical for precision trimming of conduit, pipe, threaded rod, and structural stock.

Key Features

• Premium aluminum oxide abrasive blend for fast material removal and extended wheel life
• Type 1 flat profile delivers straight, controlled cuts with minimal deflection
• 0.040-inch wheel thickness reduces kerf width and material waste
• 5/8-inch arbor fits standard 4-inch angle grinders
• Compatible with steel, stainless steel, cast iron, and sheet metal
• Lightweight at 0.052 pounds for reduced user fatigue during repeated cuts

Compatibility

Designed for use with 4-inch angle grinders equipped with a 5/8-inch arbor. Suitable for cutting steel, stainless steel, cast iron, and sheet metal in general metal fabrication and trade service applications.

Installation Notes

Mount and use this wheel only on grinders rated for the wheel diameter and RPM stamped on the wheel or packaging. Inspect the wheel for cracks or chips before each use and do not use a damaged wheel. Always wear appropriate eye and face protection, and keep bystanders clear of the cutting plane. Follow ANSI B7.1 and all applicable workplace safety standards when operating abrasive wheels.

Technical Specifications

• Wheel Diameter: 4 inches
• Wheel Thickness: 0.040 inches
• Arbor Size: 5/8 inches
• Wheel Type: Type 1 (Flat)
• Abrasive Material: Aluminum Oxide
• Application: Steel, Stainless Steel, Cast Iron, Sheet Metal
• Weight: 0.052 pounds
• Sold As: Each
• Minimum Order Quantity: 4
• UPC: 00008925094494

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DBD040040101F
