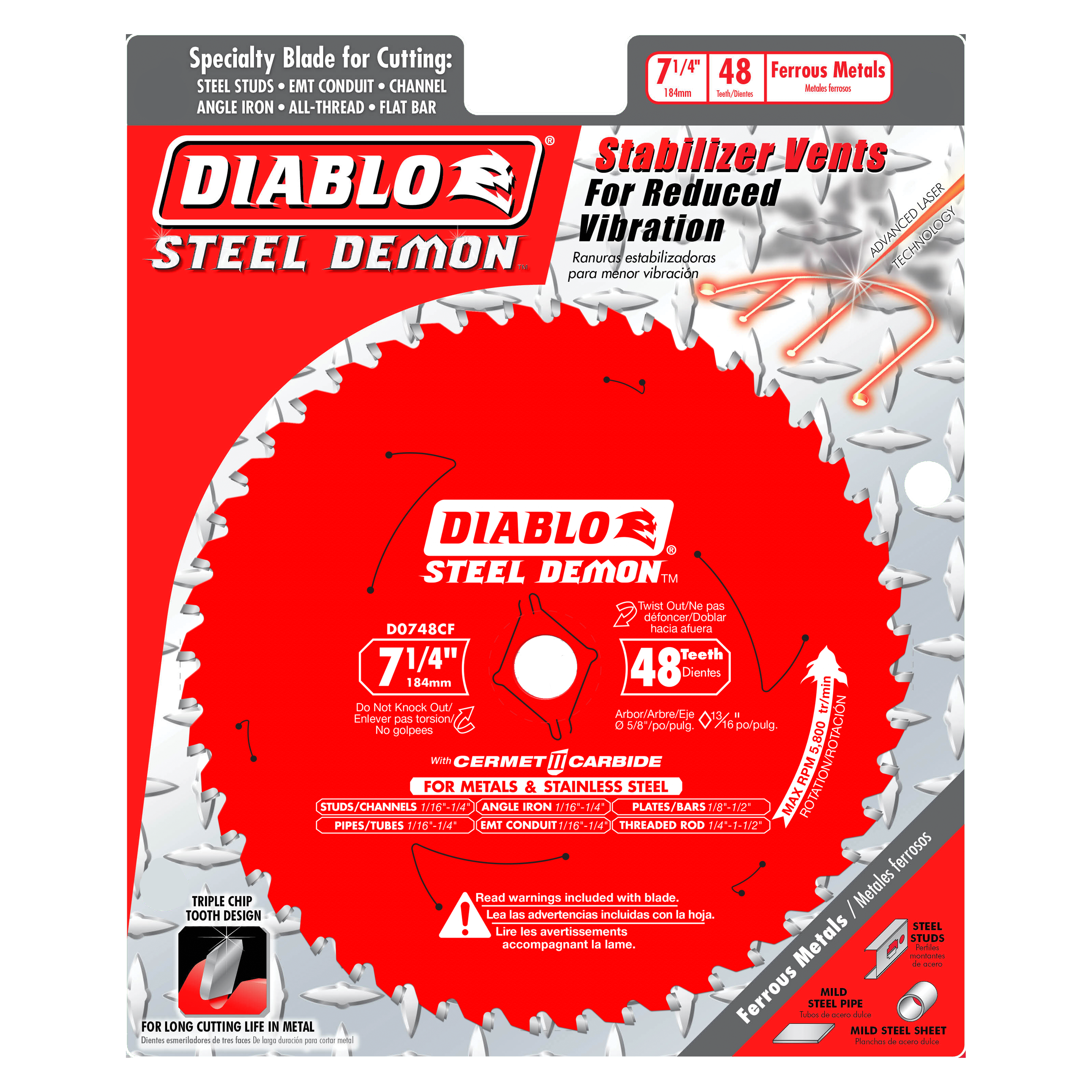

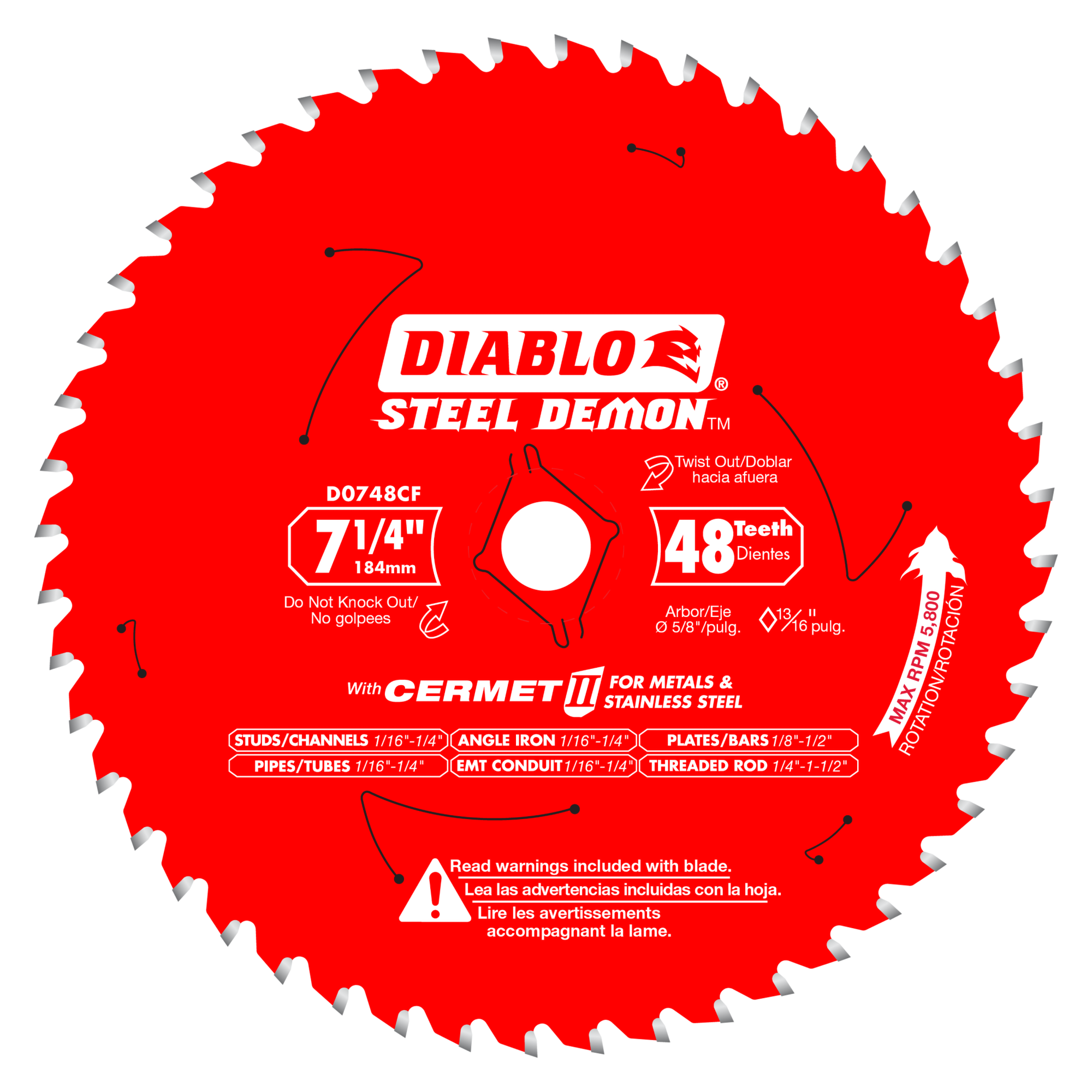

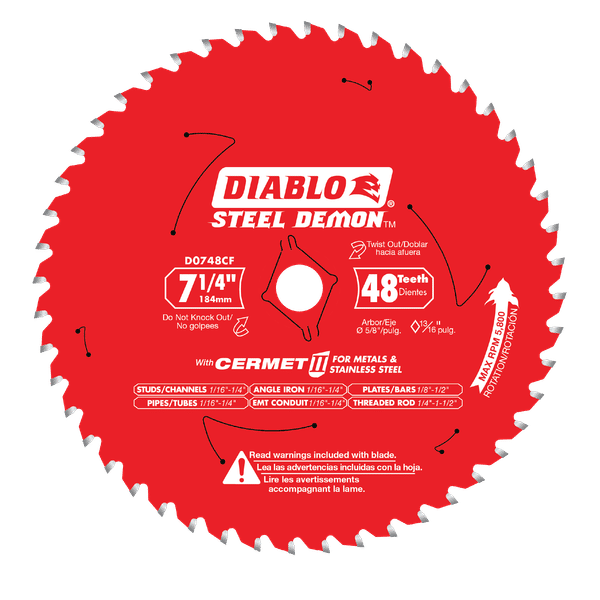

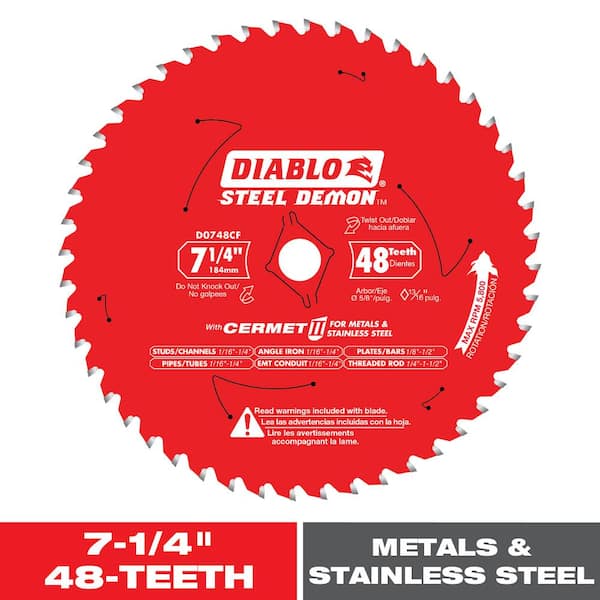

Diablo D0748CFA Cermet II 7-1/4 48T Circular Saw Blade for Metals and Stainless Steel

Product Description

The Diablo D0748CFA 7-1/4 inch x 48 Tooth Steel Demon Cermet II Saw Blade is designed for cutting metals and stainless steel. The Cermet II teeth provide high heat tolerance and increased hardness for superior wear and life. It features a Triple Chip Grind and Perma-SHIELD coating for precise, burr-free cuts with less sparks.

• Cermet II teeth provide high heat tolerance and increased hardness.
• Triple Chip Tooth design provides less sparks and burr-free finishes.
• Perma-SHIELD coating resists heat build-up by protecting against gumming and corrosion.

Product Highlights

The Diablo Steel Demon Cermet II saw blade offers a one-blade solution for ultimate metal cutting performance.

Product Information

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: D0748CFA
• Country of Origin: Italy

Technical Specifications

• Diameter: 7-1/4"
• Tooth Count: 48
• Grind Type: Triple Chip Grind (TCG)
• Maximum Rpm: 5800
• Material Cut: Medium Metal
• Saw Blade Type: Miter Saw and Circular Saw
• Arbor Hole Size: 5/8 in
• Expansion Slots: Yes
• Individual | Set: Individual
• Kickback Limiters: Yes
• Non-Stick Coating: Yes
• Blade Diameter (In): 7 1/4
• Tooth Configuration: Modified Triple Chip Grind (M-TCG)
• Blade Tooth Material: Carbide
• Plate Thickness (In): 0.063
• Blade Manufacturing Method: Laser-Cut
• Vibration Dampening Technology: Yes
• Arbor: 5/8"
• Category: Saw Blades
• Material Compatibility: Cermet Metal and Stainless Steel
• MPN: D0748CFA
• Make: FREUD TOOLS/DIABLO TOOLS
• Brand: DIABLO
• ManufacturerName: FREUD TOOLS/DIABLO TOOLS
• Hook Angle: 2 Degrees
• Application: Metal Cutting
• For Use With: Steel Studs/Channel, Angle Iron, EMT Conduit, All-Thread with thicknesses of Studs & Tubing (Wall thickness 1/16" (16 gauge) min 1/4" max); Plates & Bars (Thickness 1/8" (11 gauge) min 1/2" max); RODS (Diameter 1/4" min 1-1/2" max)
• Bore Size: 5/8 Inch
• Blade Thickness: 0.063 Inch
• Cutting Width: 0.075 Inch
• Material: Steel Demon
• Cut Material: Metal, Ferrous Metal
• Speed Rating: 5800 RPM
• Product Type: Cermet II Saw Blade
• Category1: Tools
• Category2: Power Tools
• Category3: Power Saws & Blades
• Category4: Power Saw Blades
• Metal Cutting: Metal Cutting
• Teeth: 48 TCG
• Plate: .063"
• Arbor Size: 5/8 in
• Cutting Edge Material: Cermet
• Applicable Materials: Angle Iron, Lumber
