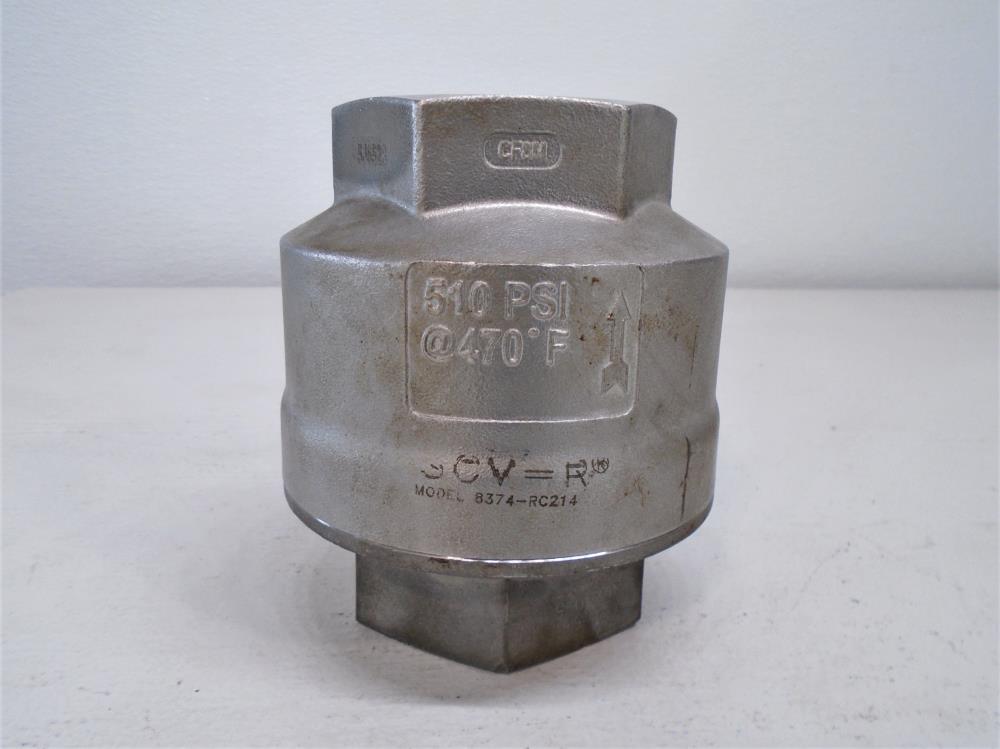

DFT 8374 SCV In-Line Check Valve

Product Description

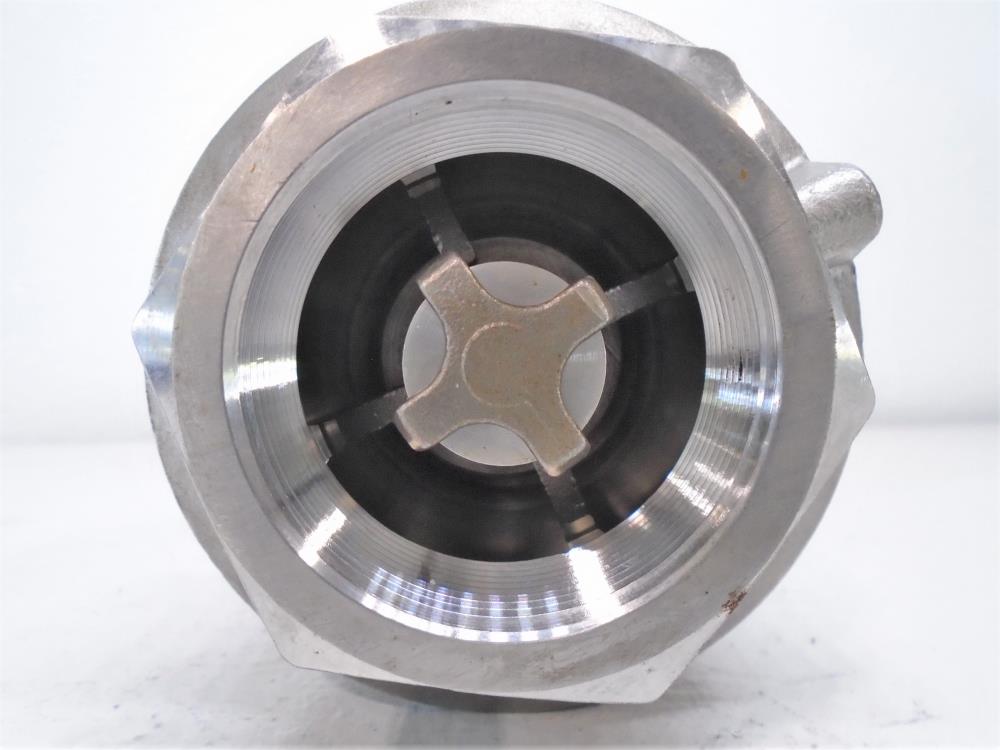

The DFT 8374 SCV In-Line Check Valve is engineered for reliable performance in liquid, gas, or steam applications. The valve's spring-assisted mechanism ensures tight shut-off, helping to protect system components from issues like water hammer. Constructed with a durable 316 stainless steel body, it features an Inconel X-750 spring and a Zelon body seal for enhanced longevity. This valve is adaptable for both horizontal and vertical installations.

• Nominal size: 2 inch NPT
• Maximum cold working pressure: 750 psi
• Operating temperature range: 37 to 470 degrees Fahrenheit

Product Highlights

The DFT 8374 is suitable for various industrial applications and provides excellent sealing capabilities.

Product Information

Standard Information

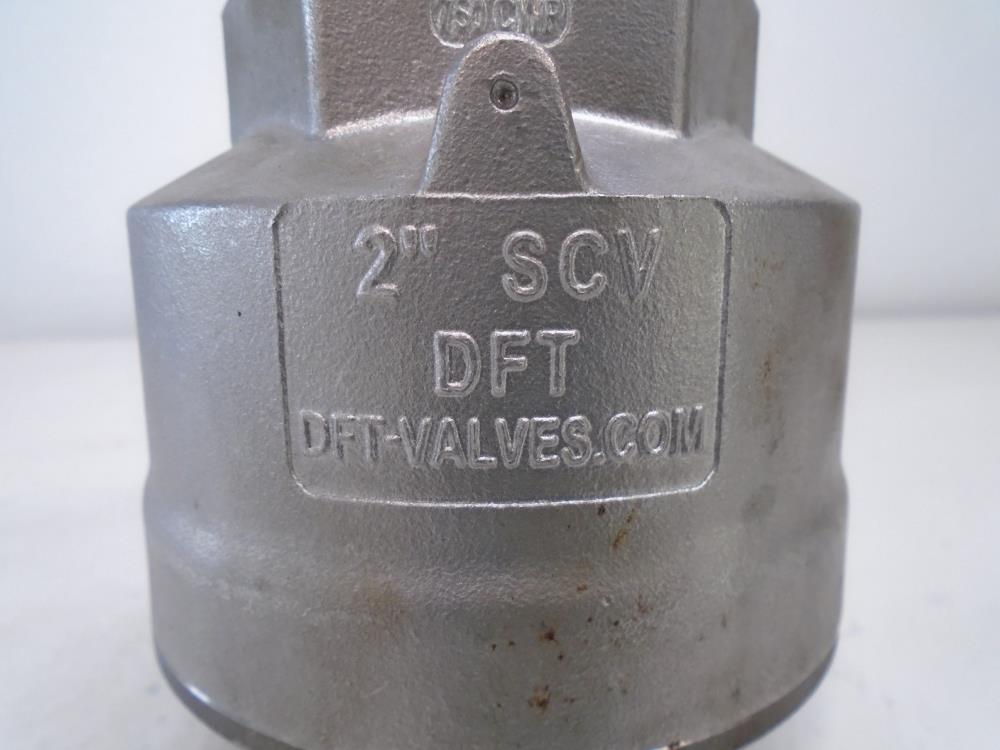

• Series: SCV
• Nominal Size: 2 inches

Technical Specifications

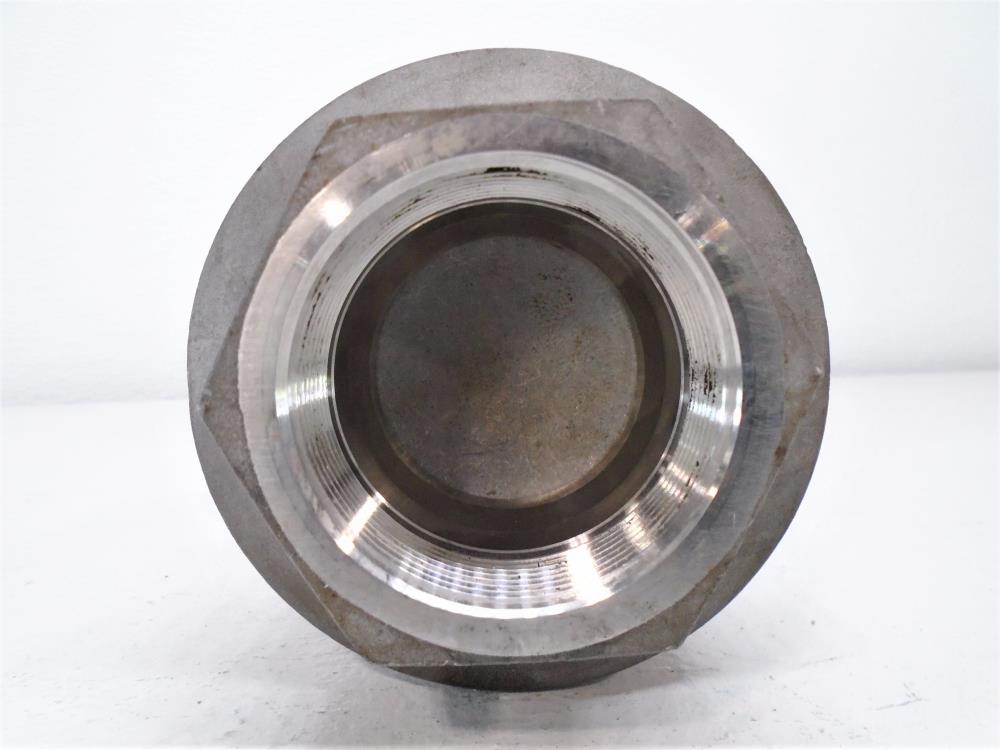

• Connection Type: NPT (Threaded)
• Cold Working Pressure: 750 psig

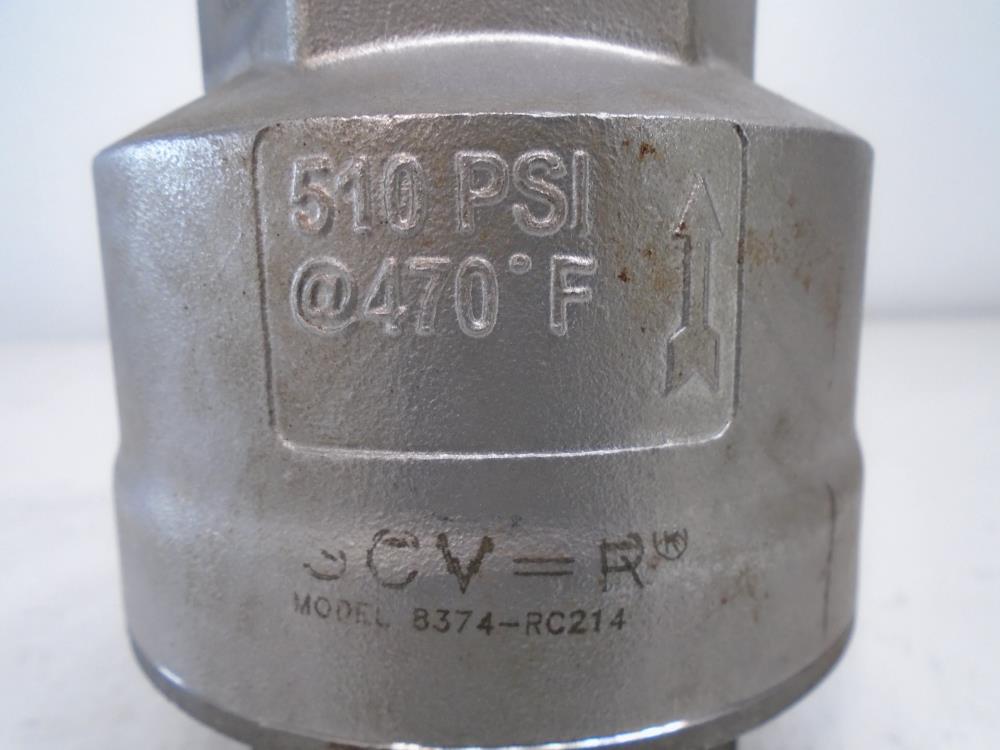

• Working Steam Pressure: 510 psig
• Temperature Rating: 37 to 470 degrees Fahrenheit
• Inlet to Outlet Length: 5 inches
• Body Material: 316 Stainless Steel
• Spring Material: Inconel X-750
• Diameter: 4.4 inches
• Weight: 7.7 pounds
• Cracking Pressure: 0.42 psig
• Cv: 93
• Valve Type: Check Valve
