DFT 8317 DFT SCV 8317 Stainless Steel In-Line Check Valve

Product Description

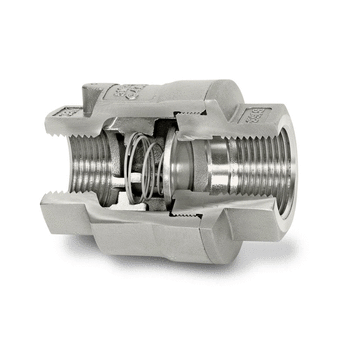

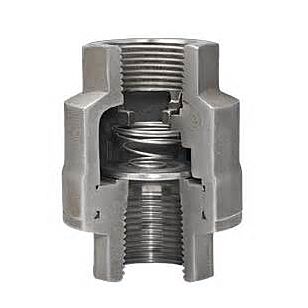

The DFT SCV 8317 is a spring-assisted, in-line check valve from DFT. This valve is suitable for various applications, including liquid, gas, or steam services. It offers reliable shut-off and protection against water hammer, making it essential for maintaining system integrity.

• Nominal size: half inch
• Connection type: FNPT
• Stainless steel construction

Product Highlights

This valve provides ease of installation in both horizontal and vertical orientations. Its simplified construction consists of fewer parts, which contributes to reliability and ease of maintenance.

Product Information

Standard Information

• Sub Brand: SCV®
• Item Name: In-Line Check Valve

Technical Specifications

• Nominal Size: half inch
• Connection Type: FNPT
• Pressure Rating: 750 PSI (CWP), 500 PSI (WSP)
• Temperature Rating: 37 to 470 degrees Fahrenheit
• Body Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Disc
• Seat Material: A351 CF8M
• Seal Material: Zelon®
• Flow Coefficient: 7
• Weight: 1.1 lbs
• Installation: Horizontal or vertical
• Valve Type: Check Valve
• Ends: NPT (Threaded)
• Cold Working Pressure: 750 psig
• Working Steam Pressure: 510 psig
