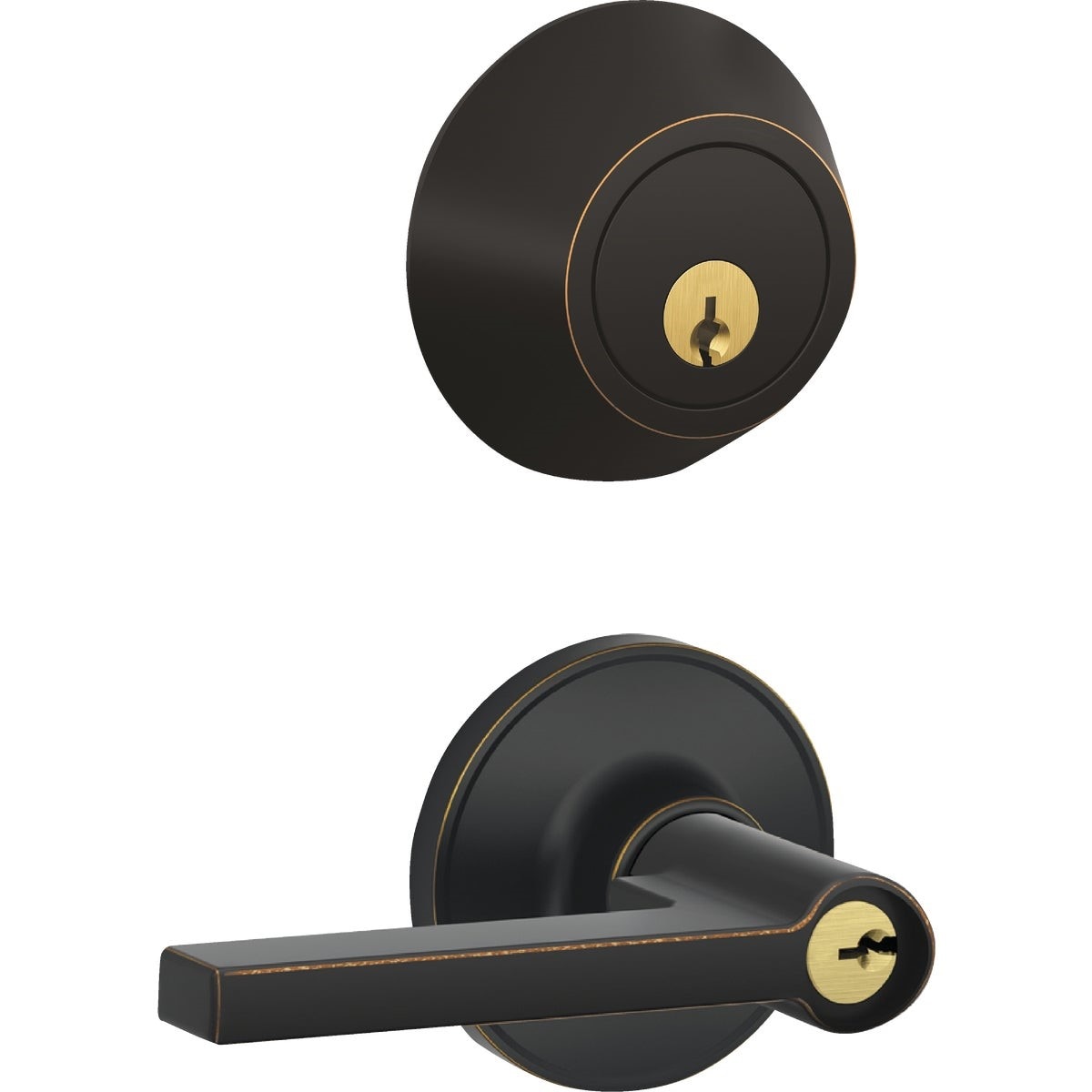

Dexter JC60VSOL716 Single Cylinder Deadbolt Lever Combo

Product Description

The DEXTER JC60VSOL716 is a single cylinder deadbolt and lever combination set designed for exterior door applications. The set includes both a keyed deadbolt and a lever handle, allowing entry from the outside with a key and unlocking from the inside by turning the thumb turn. The Aged Bronze finish suits residential exterior door installations. The adjustable backset accommodates 2-3/8 inches or 2-3/4 inches, and the hardware fits standard door thicknesses from 1-3/8 inches to 1-3/4 inches. This combo set is rated ANSI Grade 3 for security and performance and is typically installed by locksmiths, general contractors, or experienced DIYers.

This deadbolt and lever combo is suited for residential exterior doors where a matching keyed entry lever and deadbolt are required in a single package. The single cylinder configuration uses a key on the exterior side and a thumb turn on the interior side, making it appropriate for exterior doors where glass panels are not a security concern. The Aged Bronze finish coordinates with the Solstice product line. The adjustable backset and standard door thickness range make it compatible with most pre-hung residential exterior door assemblies without modification.

Key Features

• Single cylinder deadbolt with matching lever handle in one combo set
• Adjustable backset: 2-3/8 inches or 2-3/4 inches
• Fits door thickness range of 1-3/8 inches to 1-3/4 inches
• ANSI Grade 3 security and performance rating
• Aged Bronze finish with lifetime mechanical warranty and 5-year finish warranty
• Interior thumb turn releases deadbolt without a key from inside

Compatibility

Designed as a replacement or new-installation combo set for standard residential exterior doors with a 2-3/8 inch or 2-3/4 inch backset and door thickness between 1-3/8 inches and 1-3/4 inches.

Installation Notes

Installation is typically performed by a licensed locksmith or general contractor, though the adjustable backset design supports straightforward field installation with standard hand tools. Power down any electric strike or access control hardware associated with the door before beginning work. Verify door prep hole diameter and backset measurement before installation to confirm fitment. Follow local building code requirements for exterior door hardware on egress doors.

Technical Specifications

• Backset: 2-3/8 inches or 2-3/4 inches (adjustable)
• Door Thickness Range: 1-3/8 inches to 1-3/4 inches
• Security Rating: ANSI Grade 3
• Finish: Aged Bronze
• Cylinder Type: Single cylinder
• Mechanical Warranty: Lifetime
• Finish Warranty: 5 years
• Weight: 3.095 pounds
• Sold As: Each

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: JC60VSOL716
