Dexter JC60VSOL619 Single Cylinder Deadbolt Lever Combo

Product Description

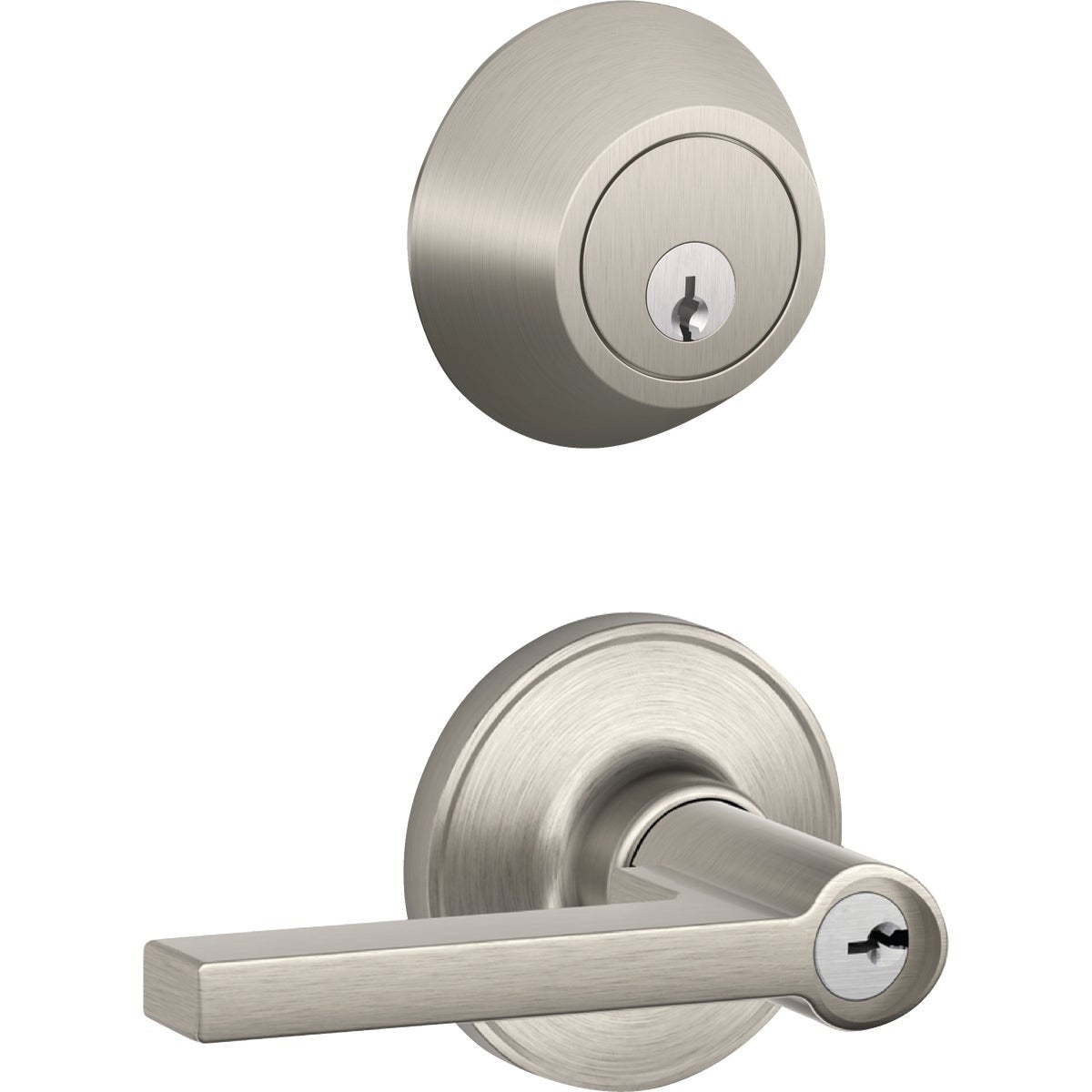

The DEXTER JC60VSOL619 is a single cylinder deadbolt and lever combo designed for exterior door applications. The deadbolt locks with a key from the outside and releases from the inside when the door is opened, providing standard residential entry security. The lever handle is included as part of the combo set. Finish is satin nickel. Backset is adjustable to either 2-3/8 inches or 2-3/4 inches to fit common door prep configurations. Door thickness compatibility ranges from 1-3/8 inches to 1-3/4 inches, covering the majority of standard residential door slabs. This unit meets ANSI Grade 3 security and performance standards.

Intended for residential exterior doors where a matching deadbolt and lever set is required in a single installation. The satin nickel finish suits a wide range of door hardware aesthetics. The adjustable backset makes this combo compatible with doors prepped for either standard backset dimension without additional modification. Locksmiths, general contractors, and experienced DIYers install this type of hardware as part of new construction, remodel, or replacement projects.

Key Features

• Single cylinder deadbolt locks by key from exterior and releases from interior when door is opened
• Adjustable backset fits 2-3/8 inch or 2-3/4 inch door prep
• Fits standard door thickness from 1-3/8 inches to 1-3/4 inches
• Satin nickel finish
• ANSI Grade 3 security and performance rating
• Lifetime mechanical warranty and 5-year finish warranty

Compatibility

Designed as an OEM-style replacement or new-installation combo set for standard residential exterior doors with a 2-3/8 inch or 2-3/4 inch backset and door thickness between 1-3/8 inches and 1-3/4 inches.

Installation Notes

Installation is typically performed by a locksmith, finish carpenter, or general contractor. Before installation, confirm the existing door bore diameter and backset measurement match the hardware requirements. A standard door installation kit with hole saw, chisel, and screwdrivers is generally required. Always follow local building codes regarding exterior entry hardware for residential occupancies.

Technical Specifications

• Finish: Satin Nickel
• Cylinder Type: Single Cylinder
• Adjustable Backset: 2-3/8 inches or 2-3/4 inches
• Door Thickness Range: 1-3/8 inches to 1-3/4 inches
• Security Rating: ANSI Grade 3
• Mechanical Warranty: Lifetime
• Finish Warranty: 5 years
• Weight: 3.097 pounds

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: JC60VSOL619
