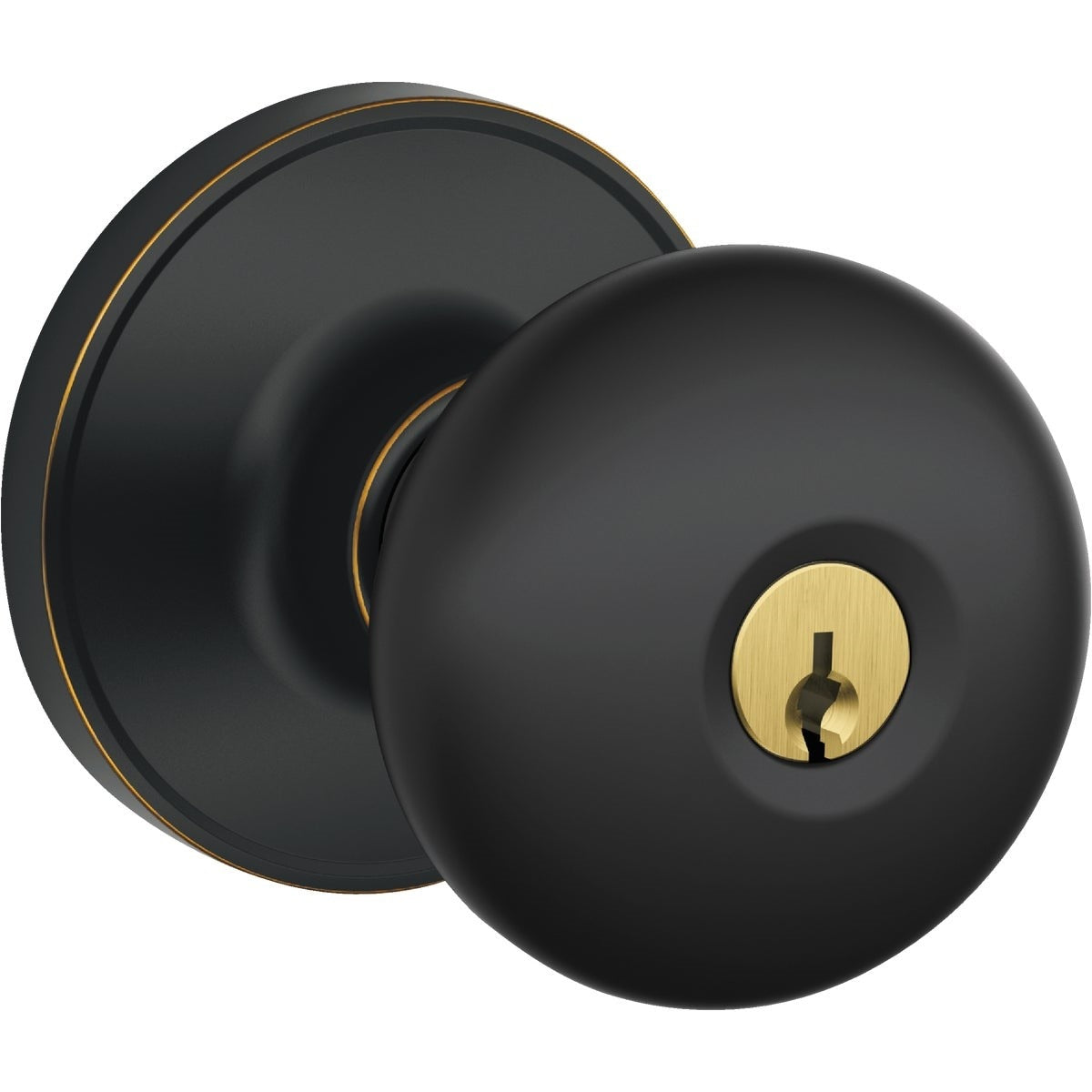

Dexter J54VSTR716 Keyed Entry Door Knob Lockset Aged Bronze

Product Description

The DEXTER J54VSTR716 is a keyed entry door knob lockset in an aged bronze finish, part of the J-Series Stratus line. It operates with a key on the exterior and a turn button on the interior, making it suited for standard residential entry door applications. The backset is field-adjustable to either 2-3/8 inches or 2-3/4 inches, and the lockset fits door thicknesses ranging from 1-3/8 inches to 1-3/4 inches. It carries an ANSI Grade 3 security and performance rating. Installation and rekeying are straightforward, making it a practical choice for locksmiths and general contractors handling residential door hardware.

This lockset is designed for standard residential entry doors. The adjustable backset accommodates the two most common door prep dimensions, reducing the need for additional boring or modification on typical pre-hung and slab door installations. The Stratus style in aged bronze suits a range of exterior door aesthetics common in residential construction and renovation work. The unit can be rekeyed to match existing locks or other locks in the same keying system, which is useful on multi-unit or whole-home rekey jobs.

Key Features

• Keyed entry function: key unlocks from outside, turn button from inside
• Adjustable backset fits 2-3/8 inch or 2-3/4 inch door prep
• Compatible with door thicknesses from 1-3/8 inches to 1-3/4 inches
• Rekeyable to match existing or other locks in the same system
• ANSI Grade 3 security and performance rating
• Lifetime mechanical warranty and 5-year finish warranty

Compatibility

Designed as a replacement or new-installation keyed entry lockset for standard residential doors with 1-3/8 inch to 1-3/4 inch thickness and either 2-3/8 inch or 2-3/4 inch backset preparation.

Installation Notes

Installation is typically performed by a locksmith, general contractor, or experienced finish carpenter. Verify door thickness and existing backset measurement before installation to select the correct backset setting. No special tools beyond a standard screwdriver are required for most installations. Follow local building codes for residential entry door hardware requirements.

Technical Specifications

• Finish: Aged Bronze
• Backset: Adjustable 2-3/8 inches or 2-3/4 inches
• Door Thickness: 1-3/8 inches to 1-3/4 inches
• Security Rating: ANSI Grade 3
• Mechanical Warranty: Lifetime
• Finish Warranty: 5 years
• Weight: 1.323 pounds

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: J54VSTR716
