Dexter J54VSTR619 Entry Door Knob Satin Nickel

Product Description

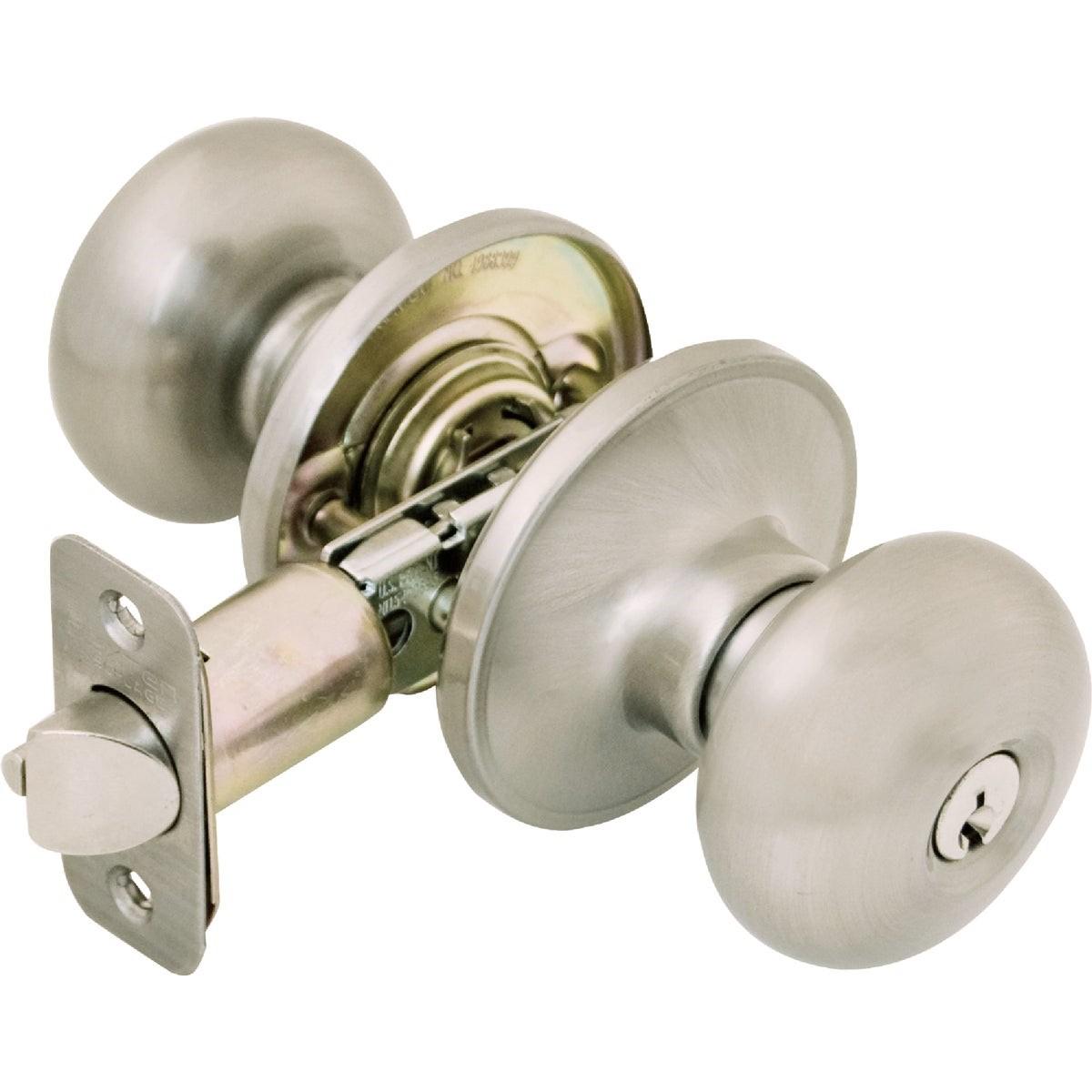

The DEXTER J54VSTR619 is a keyed entry door knob designed for exterior doors that require controlled access. The outer knob locks via a turn-button on the inner knob and unlocks with a key from the outside. A triple-action spring latch ships standard and accepts drive-in, square, and radius face plates, giving installers flexibility on the job. The backset adjusts from 2-3/8 inches to 2-3/4 inches to fit the most common door preparations. Finish is satin nickel (619). The hardware meets ANSI Grade 3 securing requirements and carries a 25-year mechanical warranty plus a 5-year finish warranty.

This knob set is intended for residential exterior entry doors where a keyed lockset is required. It fits standard door preps without modification in most cases. The keyway is compatible with Schlage keyways, making it a practical choice on projects where technicians need to key multiple locksets alike. When ordered as a full case of 4 units, all knobs can be keyed alike, which simplifies key management on multi-unit or new-construction installs. The 1/4-inch radius full-lip strike is included.

Key Features

• Triple-action spring latch accepts drive-in, square, and radius face plates
• Adjustable backset: 2-3/8 inches to 2-3/4 inches fits standard door preps
• Turn-button inner knob locks outer knob; keyed entry from exterior
• Keyable to Schlage keyways for cross-compatibility on multi-lock projects
• Keyed alike when full case of 4 is ordered
• ANSI Grade 3 securing; 25-year mechanical and 5-year finish warranty

Compatibility

Fits standard residential exterior door preparations with a backset ranging from 2-3/8 inches to 2-3/4 inches. Keyway is compatible with Schlage keyways.

Installation Notes

Installation is typically performed by a licensed locksmith or finish carpenter working to local building code requirements. Before beginning, confirm the door thickness and bore dimensions match the hardware specification. Remove all existing hardware and verify the latch bore and cross-bore are clear before seating the latch assembly. Do not force the backset adjustment mechanism; set the correct backset position before inserting the latch into the door.

Technical Specifications

• Finish: Satin Nickel (619)
• Backset: Adjustable 2-3/8 inches to 2-3/4 inches
• Strike: 1/4 inch radius full-lip
• Latch Type: Triple-action spring latch (drive-in, square, and radius face plates)
• ANSI Grade: Grade 3
• Mechanical Warranty: 25 years
• Finish Warranty: 5 years
• Weight: 1.312 pounds
• UPC: 00043156179862

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: J54VSTR619
