Dexter J54VSOL619 Keyed Entry Door Lever Lockset

Product Description

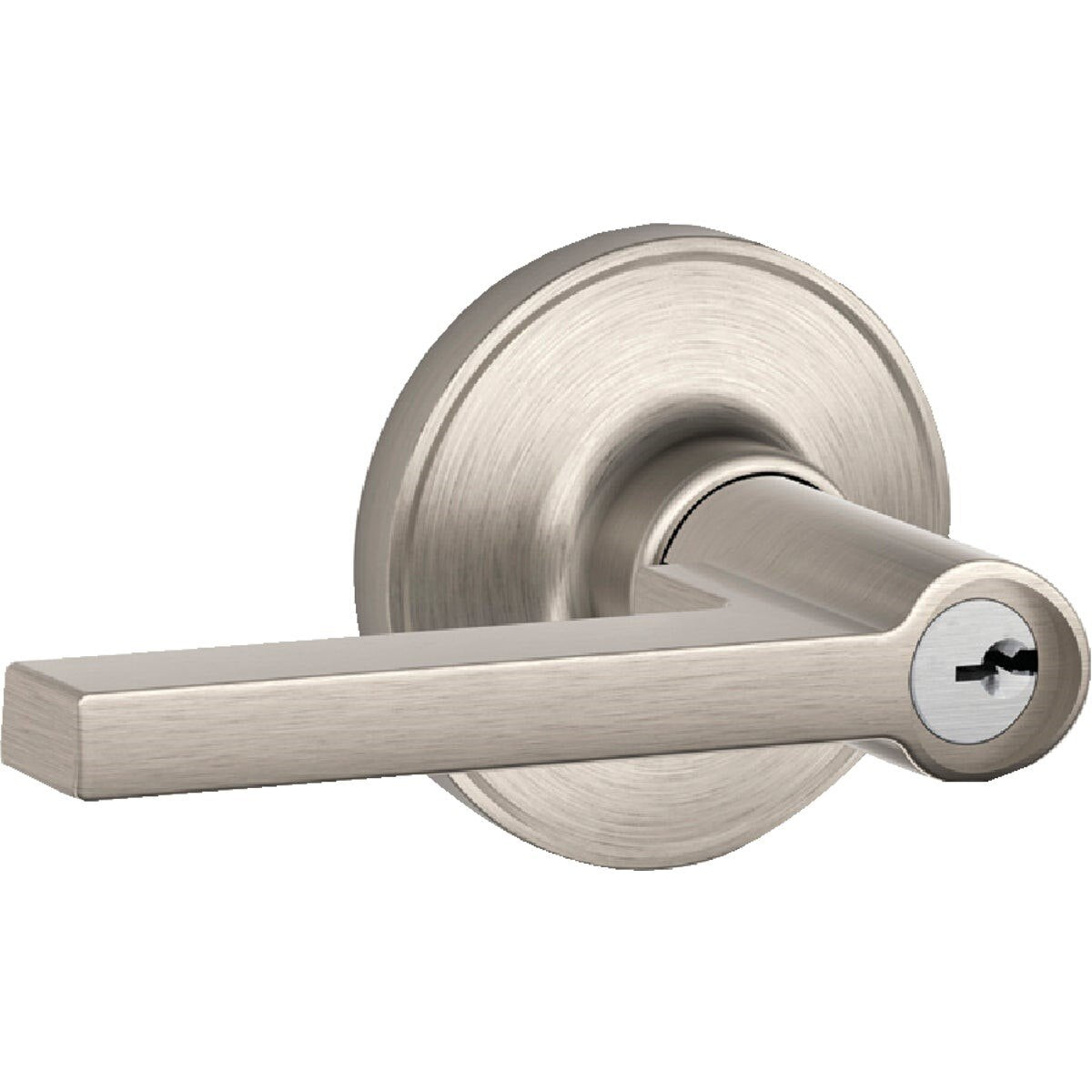

The DEXTER J54VSOL619 is a keyed entry door lever lockset in the Solstice style, finished in satin nickel. Part of the J-Series lineup, it operates as a standard keyed entry lockset: the exterior lever unlocks by key and the interior lever unlocks by a turn button. The lock ships with a 5-pin tumbler cylinder on a C keyway and includes 2 keys. It supports an adjustable backset of 2-3/8 inches or 2-3/4 inches and fits door thicknesses from 1-3/8 inches to 1-3/4 inches. Installed by locksmiths or general contractors on residential entry doors.

The J54VSOL619 is suited for residential entry door applications where a keyed lockset with a lever handle is preferred over a knob. The adjustable backset accommodates the two most common residential door prep configurations. The cylinder is rekeyable, allowing the installer to match this lock to existing keyways on the same property without replacing hardware. The satin nickel finish is appropriate for both new construction and retrofit installations.

Key Features

• Keyed entry function: exterior unlocks by key, interior unlocks by turn button
• Adjustable backset fits 2-3/8 inch or 2-3/4 inch door prep
• Fits door thicknesses from 1-3/8 inches to 1-3/4 inches
• 5-pin cylinder on C keyway, includes 2 keys
• Rekeyable to match existing locks on the property
• ANSI Grade 3 security and performance rating
• Lifetime mechanical warranty and 5-year finish warranty

Compatibility

Designed as an OEM-style keyed entry lever lockset for standard residential doors with a 2-3/8 inch or 2-3/4 inch backset and door thickness between 1-3/8 inches and 1-3/4 inches.

Installation Notes

Installation is performed by a licensed locksmith or qualified contractor following the manufacturer template and local building code requirements. Power tools are not required; a screwdriver and hole saw are typical. Confirm door prep hole diameter and backset measurement before installation to select the correct backset setting. Rekeying should be performed using the appropriate C keyway rekey kit and a plug follower tool.

Technical Specifications

• Function: Keyed Entry
• Finish: Satin Nickel
• Style: Solstice
• Backset: Adjustable 2-3/8 inches or 2-3/4 inches
• Door Thickness: 1-3/8 inches to 1-3/4 inches
• Cylinder: 5-pin, C keyway
• Keys Included: 2
• Security Rating: ANSI Grade 3
• Mechanical Warranty: Lifetime
• Finish Warranty: 5 years
• Weight: 1.954 pounds

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: J54VSOL619
