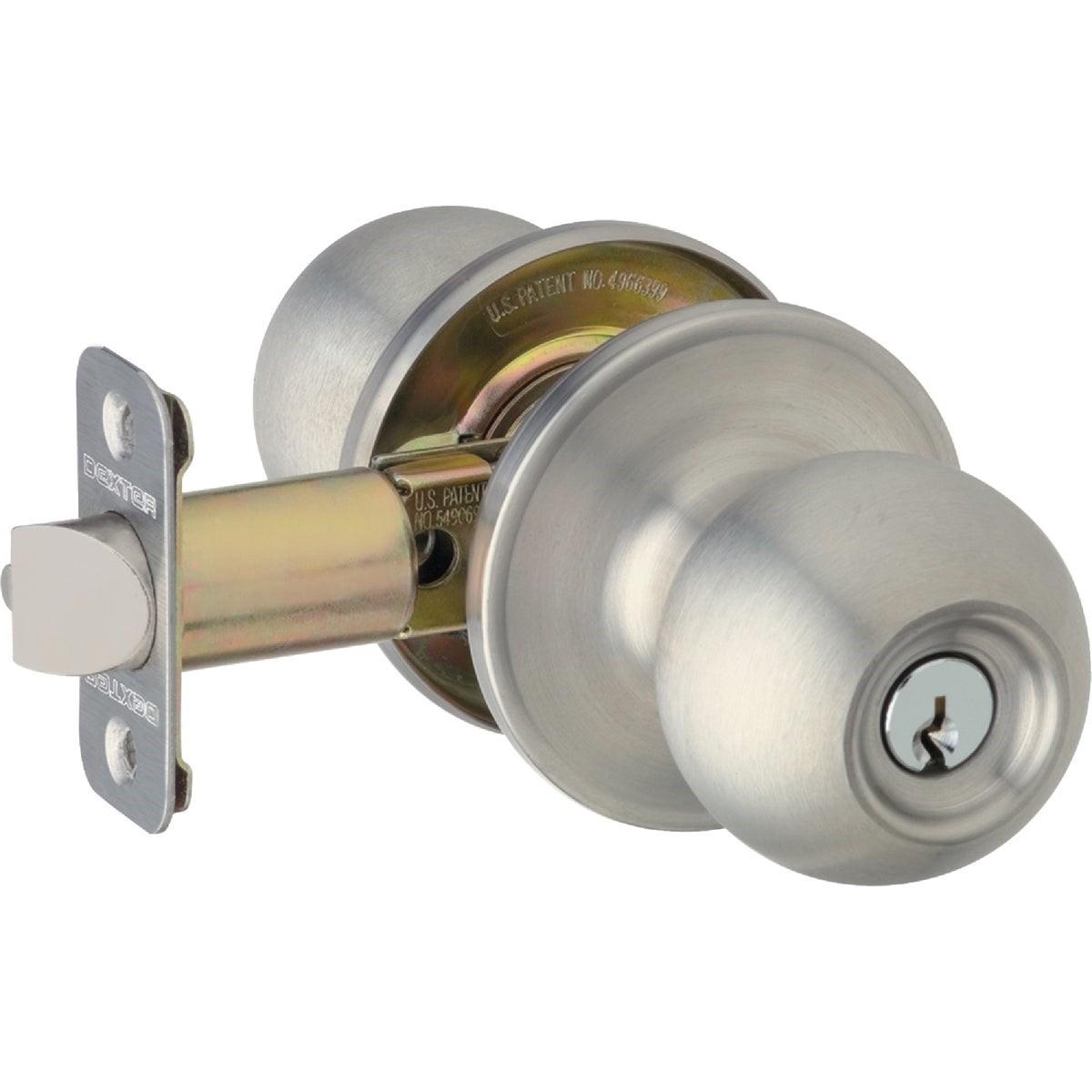

Dexter J54VCNA619 Satin Nickel Entry Door Knob

Product Description

The DEXTER J54VCNA619 is a satin nickel entry door knob designed for keyed exterior doors in residential applications. The outer knob locks via a turn-button on the inner knob and is unlocked from outside by key. It ships as a visual pack and includes a triple-option spring latch compatible with drive-in, square, and radius face plates. The backset is adjustable from 2-3/8 inches to 2-3/4 inches to accommodate standard door preparations. A 1/4-inch radius full-lip strike is included. The knob is keyable to other Schlage keyways, offering flexibility on job sites where keying systems are already established.

This entry knob is suited for residential exterior door installations where a keyed entry function is required. It fits standard door preps, making it a straightforward replacement or new-installation option for entry doors on single-family homes and light commercial applications. When a full case of 4 units is ordered, knobs arrive keyed alike, which simplifies multi-door installations on the same property. The satin nickel finish provides a clean, neutral appearance compatible with a wide range of door hardware styles.

Key Features

• Keyed entry function: outer knob locks by turn-button, unlocked from outside by key
• Triple-option spring latch accepts drive-in, square, and radius face plates
• Adjustable backset from 2-3/8 inches to 2-3/4 inches
• Keyable to Schlage keyways for job-site keying flexibility
• Keyed alike when ordered as a full case of 4
• ANSI Grade 3 security and performance rating
• 25-year mechanical warranty and 5-year finish warranty

Compatibility

Fits standard door preparations with adjustable backset from 2-3/8 inches to 2-3/4 inches. Keyable to other Schlage keyways.

Installation Notes

Installation is typically performed by a licensed locksmith, carpenter, or general contractor. Before installation, confirm the door prep (bore hole diameter and backset) matches the hardware specifications. Ensure the door is properly supported and stationary before drilling or mortising. Follow all applicable local building codes for exterior door hardware on occupied structures.

Technical Specifications

• Function: Keyed Entry
• Finish: Satin Nickel
• Backset: Adjustable 2-3/8 inches to 2-3/4 inches
• Strike: 1/4-inch radius full-lip strike included
• Latch Options: Triple-option spring latch (drive-in, square, radius face plates)
• Security Rating: ANSI Grade 3
• Mechanical Warranty: 25 years
• Finish Warranty: 5 years
• Weight: 1.317 pounds
• Sold As: Each
• UPC: 00043156818716

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: J54VCNA619
