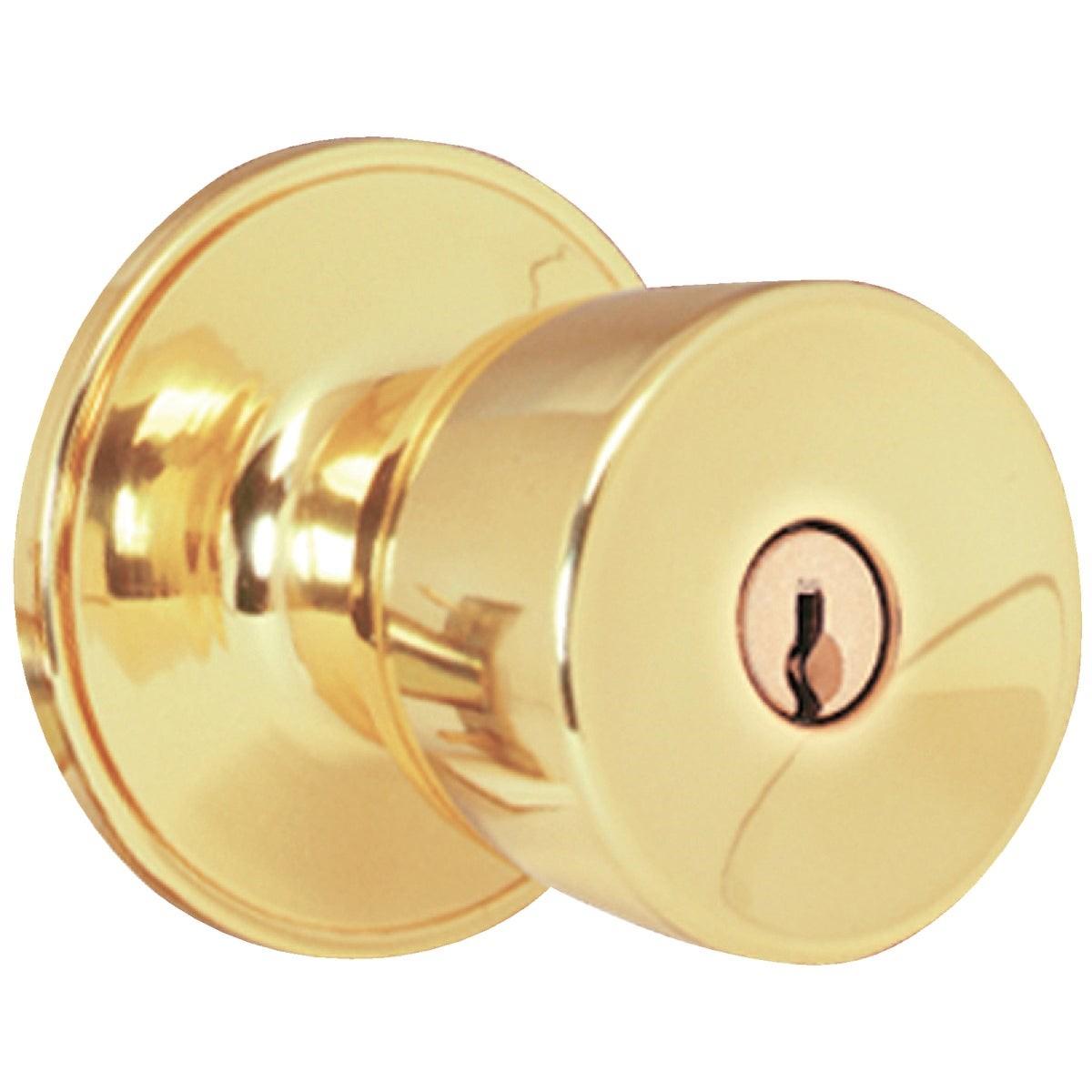

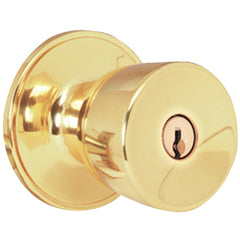

Dexter J54VBYR605 Bright Brass Entry Door Knob

Product Description

The DEXTER J54VBYR605 is a bright brass entry door knob designed for keyed exterior door applications. The outer knob locks via a turn-button in the inner knob and is unlocked from outside by key, making it a standard entry-function lockset. The triple-option spring latch accepts drive-in, square, and radius face plates for flexible installation. A 1/4-inch radius full-lip strike is included. The adjustable backset spans 2-3/8 inches to 2-3/4 inches, covering the two most common door prep dimensions. Finish is bright brass, classified as 605. Sold individually, with keyed-alike availability when a full case of 4 units is ordered.

This entry knob fits standard residential door preparations and is suited for exterior entry doors requiring keyed access control. The keyway is compatible with Schlage keyways, allowing integration into existing Schlage-keyed systems without re-keying the entire property. The 605 bright brass finish suits both new construction and replacement installations. Typical installers are residential locksmiths, carpenters, and general contractors. The ANSI Grade 3 rating establishes minimum baseline security and cycle performance for light-duty residential use.

Key Features

• Entry function: outer knob locks by turn-button, unlocks from outside by key
• Triple-option spring latch accepts drive-in, square, and radius face plates
• Adjustable backset from 2-3/8 inches to 2-3/4 inches
• Bright brass (605) finish with 5-year finish warranty
• ANSI Grade 3 security and performance rating
• Keyable to Schlage keyways; keyed alike when full case of 4 is ordered
• 25-year mechanical warranty

Compatibility

Fits standard door preparations with adjustable backset between 2-3/8 inches and 2-3/4 inches. Keyable to Schlage keyways for integration with existing keyed systems.

Installation Notes

Installation is performed by a licensed locksmith, finish carpenter, or qualified general contractor. Power tools are not required, but a door-prep kit may be needed if the door is not pre-bored to standard dimensions. Confirm backset measurement before installation and set the latch accordingly. Verify door edge preparation is compatible with the selected face plate option before driving the latch assembly.

Technical Specifications

• Function: Entry, keyed exterior
• Backset: Adjustable, 2-3/8 inches to 2-3/4 inches
• Face Plate Options: Drive-in, square, and radius
• Strike: 1/4-inch radius full-lip
• Finish: Bright Brass (605)
• ANSI Grade: Grade 3
• Mechanical Warranty: 25 years
• Finish Warranty: 5 years
• Weight: 1.224 pounds
• UPC: 00043156742394

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: J54VBYR605
