Dexter J10VSTR716 Passage Door Knob Aged Bronze

Product Description

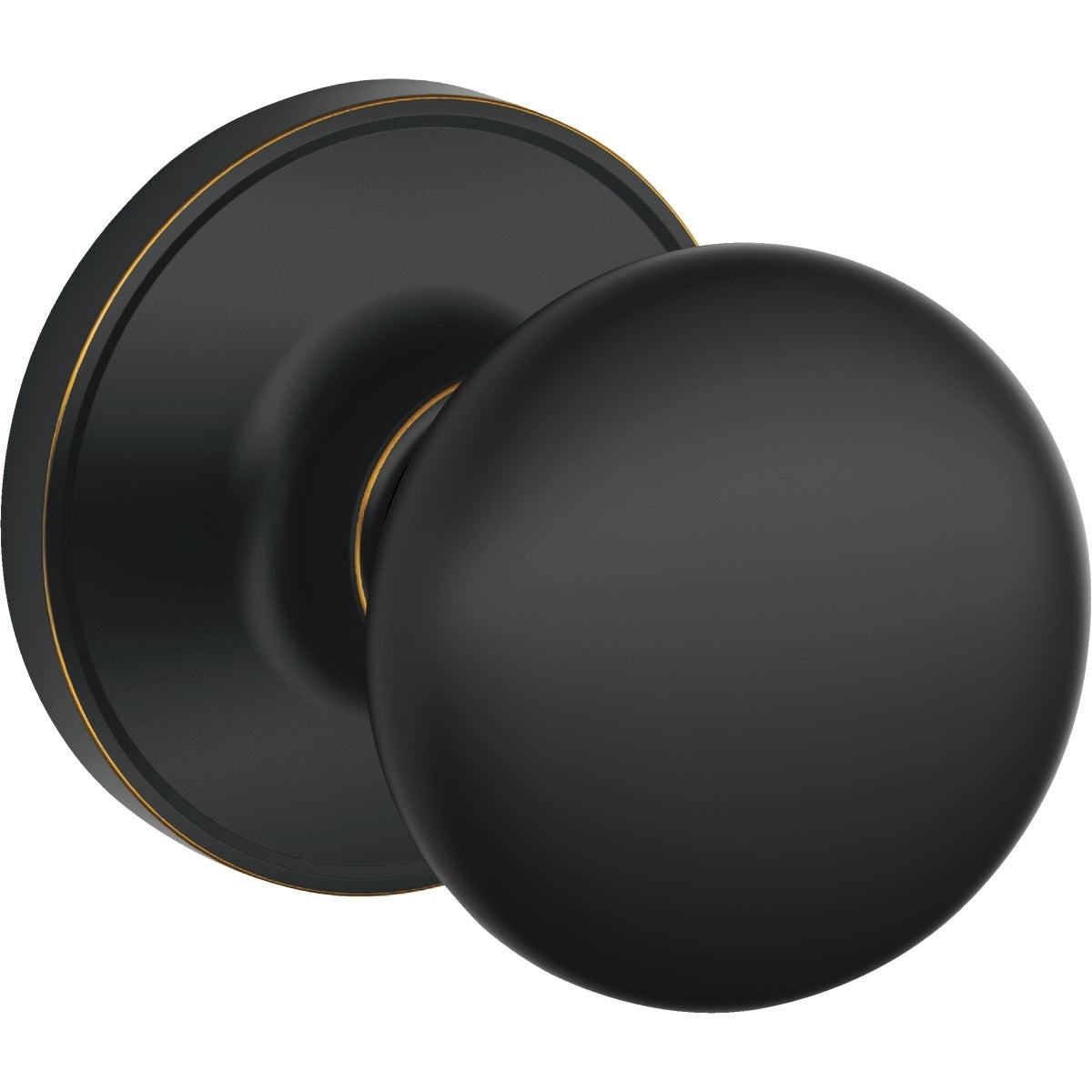

The DEXTER J10VSTR716 is a non-locking passage door knob in the Stratus style with an Aged Bronze finish, designed for interior doors that do not require a latch or lock function. Both knobs remain unlocked at all times, making this hardware appropriate for hallways, closets, and other interior passages. The adjustable backset accepts either 2-3/8 inches or 2-3/4 inches, and the unit fits standard door thicknesses from 1-3/8 inches to 1-3/4 inches. Licensed contractors and experienced finish carpenters are the typical installers. ANSI Grade 3 security and performance certification applies. The Lifetime mechanical warranty and 5-year finish warranty cover long-term serviceability.

This passage knob is suited for residential interior applications where a locking function is not needed. Common installations include hallway doors, pantry doors, and bedroom closet doors. The Aged Bronze finish integrates with traditional and transitional interior design schemes. Because no key or privacy mechanism is involved, installation is straightforward and falls within standard residential door hardware scope.

Key Features

• Non-locking passage function — both knobs always unlocked
• Adjustable backset: 2-3/8 inches or 2-3/4 inches
• Fits door thicknesses from 1-3/8 inches to 1-3/4 inches
• ANSI Grade 3 certified for security and performance
• Lifetime mechanical warranty and 5-year finish warranty
• Aged Bronze finish for traditional and transitional interiors

Compatibility

Designed as an OEM-style replacement or new-installation passage knob for standard residential interior doors with a 2-3/8 inch or 2-3/4 inch backset and thickness between 1-3/8 inches and 1-3/4 inches.

Installation Notes

Installation is performed by finish carpenters or skilled general contractors following standard door hardware procedures. Power tools are not required, though a screwdriver and a door bore template may be needed for new installations. Confirm the existing door bore diameter and backset measurement before installation. No electrical shutoff is required for this mechanical hardware.

Technical Specifications

• Function: Passage (non-locking)
• Finish: Aged Bronze
• Adjustable Backset: 2-3/8 inches or 2-3/4 inches
• Door Thickness Range: 1-3/8 inches to 1-3/4 inches
• Security Grade: ANSI Grade 3
• Mechanical Warranty: Lifetime
• Finish Warranty: 5 years
• Weight: 1.098 pounds

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: J10VSTR716
