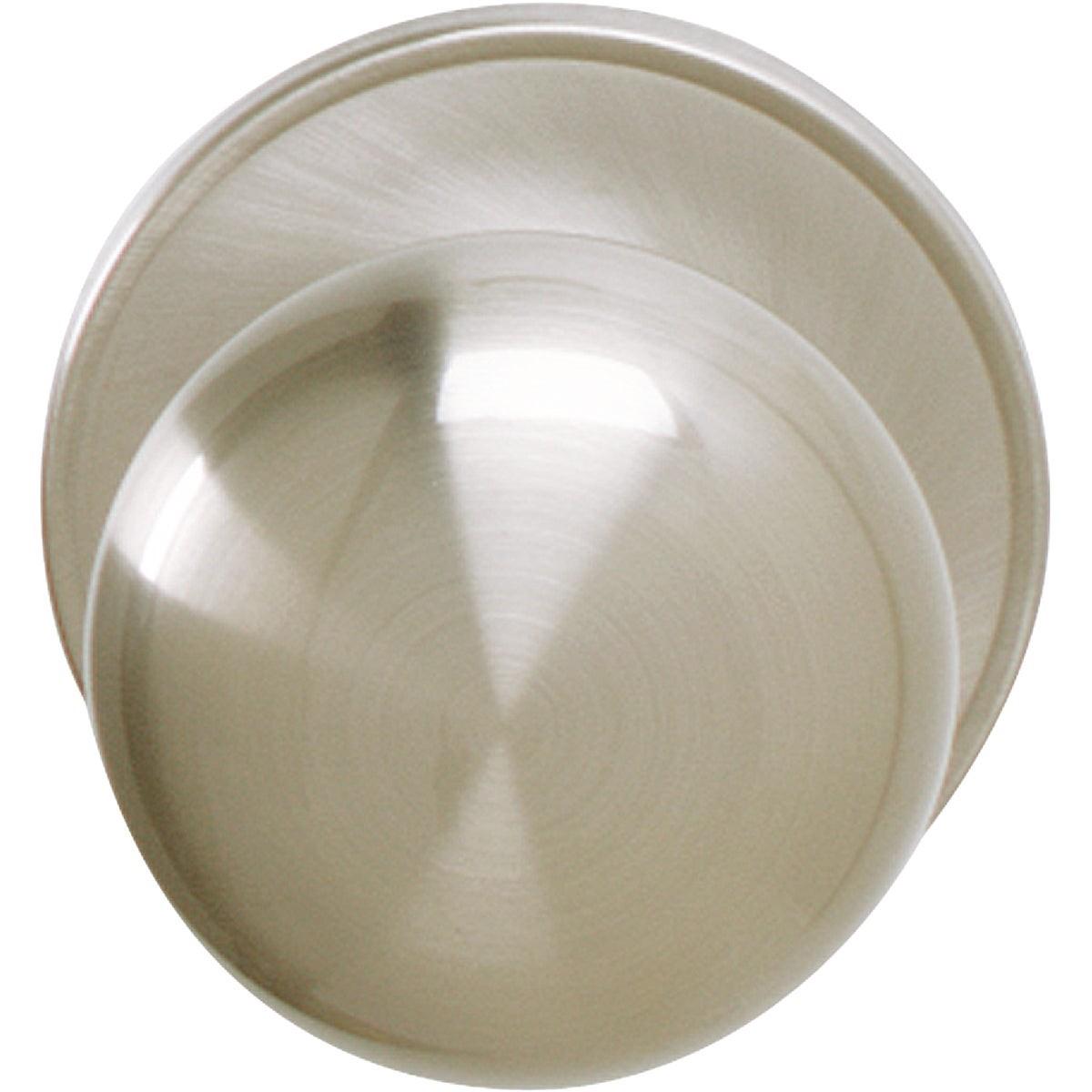

Dexter J10VSTR619 Passage Door Knob Satin Nickel

Product Description

The DEXTER J10VSTR619 is a passage knobset designed for interior hall and closet doors where a latch is needed but a lock is not. The knob operates a spring latch that retracts from either side at all times, allowing free passage without a keyed or privacy function. The unit ships with a dual-option spring latch that accepts both drive-in and radius faceplates, giving installers flexibility on door prep. The adjustable backset accommodates 2-3/8 inches or 2-3/4 inches to fit standard pre-bored door preparations. Finish is satin nickel, identified by manufacturer color code 619.

This passage knob is suited for residential interior applications including hallways, closets, and utility rooms where access control is not required. The adjustable backset and dual faceplate options make it compatible with most standard residential door preps without additional modification. The included 1/4 inch radius full-lip strike plate works with common door frame mortises. This hardware is typically installed by general contractors, finish carpenters, or experienced DIYers during new construction or renovation projects.

Key Features

• Passage function — spring latch retracts from either knob at all times, no locking mechanism
• Dual-option spring latch accepts drive-in and radius faceplates for flexible door prep compatibility
• Adjustable backset fits 2-3/8 inches and 2-3/4 inches standard door preparations
• Includes 1/4 inch radius full-lip strike plate
• Satin nickel finish (619) for corrosion resistance and a clean interior appearance
• ANSI Grade 3 rated for security and performance
• 25-year mechanical warranty and 5-year finish warranty

Compatibility

Designed as an OEM-style replacement or new-installation passage knob for standard residential interior doors with pre-bored 2-3/8 inch or 2-3/4 inch backset preparations and a standard cross-bore diameter.

Installation Notes

Installation is performed by finish carpenters or general contractors using standard door hardware tools including a cross-bore hole saw and latch bore chisel. Verify door thickness and backset measurement before installation to select the correct adjustment setting. Ensure the latch faceplate option — drive-in or radius — matches the existing door preparation to achieve a flush fit. No electrical shutoff or special trade licensing is required for this mechanical hardware.

Technical Specifications

• Function: Passage (no lock)
• Finish: Satin Nickel (619)
• Backset: Adjustable 2-3/8 inches to 2-3/4 inches
• Faceplate Options: Drive-in and radius (dual-option)
• Strike Plate: 1/4 inch radius full-lip
• Security Rating: ANSI Grade 3
• Mechanical Warranty: 25 years
• Finish Warranty: 5 years
• Weight: 1.06 pounds
• Sold As: Each

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: J10VSTR619
