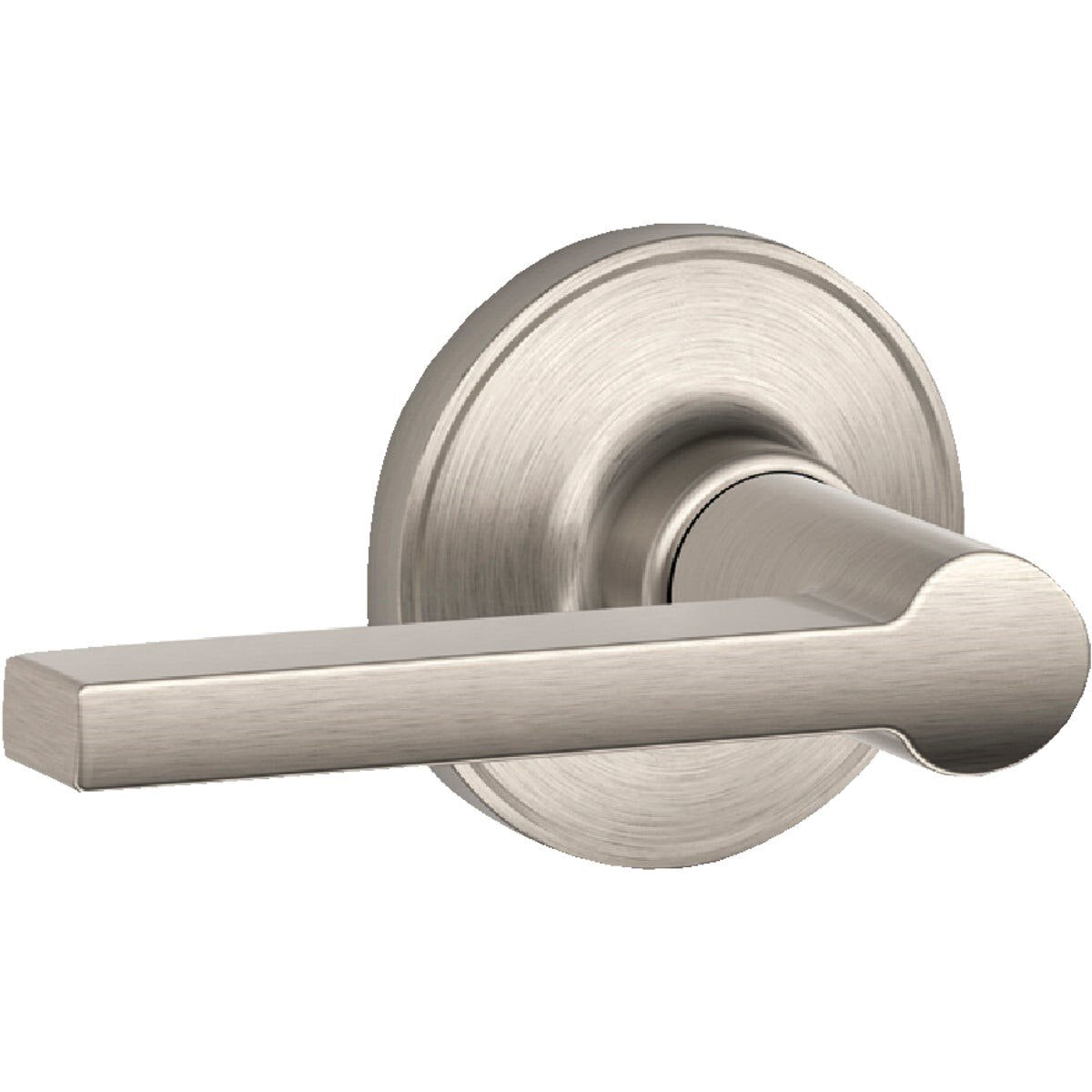

Dexter J10VSOL619 Solstice Passage Door Lever Satin Nickel

Product Description

The DEXTER J10VSOL619 is a Solstice series passage door lever designed for hall and closet applications where a locking function is not required. Both lever handles remain unlocked at all times, and turning either lever retracts the latch bolt to open the door. The lever fits standard doors ranging from 1-3/8 inches to 1-3/4 inches thick and features an adjustable backset that accommodates either 2-3/8 inches or 2-3/4 inches. Finished in satin nickel, it is installed by residential door hardware contractors and general contractors during new construction or renovation work.

This passage lever is suited for interior residential doors where security hardware is not needed, such as hallways, closets, and open-flow living spaces. The adjustable backset and broad door thickness range make it compatible with most standard residential door preparations without additional modification. The satin nickel finish provides a neutral tone that coordinates with a wide range of interior hardware finishes.

Key Features

• Passage function — both levers remain unlocked at all times, no key or turn button required
• Adjustable backset fits 2-3/8 inches or 2-3/4 inches door prep
• Fits standard doors from 1-3/8 inches to 1-3/4 inches thick
• Satin nickel finish with 5-year finish warranty
• Lifetime mechanical warranty
• ANSI Grade 3 security and performance rating

Compatibility

Designed as an OEM-style replacement or new-installation passage lever for standard residential interior doors with a 2-3/8 inch or 2-3/4 inch backset and door thickness between 1-3/8 inches and 1-3/4 inches.

Installation Notes

Installation is performed by a carpenter, general contractor, or experienced DIYer using a standard screwdriver and door hardware template. Power tools are not required for lever installation, but a hole saw and chisel may be needed if the door is not pre-bored. Verify door thickness and backset measurement before installation to select the correct latch position. Remove all door hardware and ensure the door is stable before beginning work.

Technical Specifications

• Function: Passage (Hall and Closet)
• Finish: Satin Nickel
• Backset: Adjustable — 2-3/8 inches or 2-3/4 inches
• Door Thickness: 1-3/8 inches to 1-3/4 inches
• ANSI Grade: Grade 3
• Mechanical Warranty: Lifetime
• Finish Warranty: 5 years
• Weight: 1.792 pounds

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: J10VSOL619
