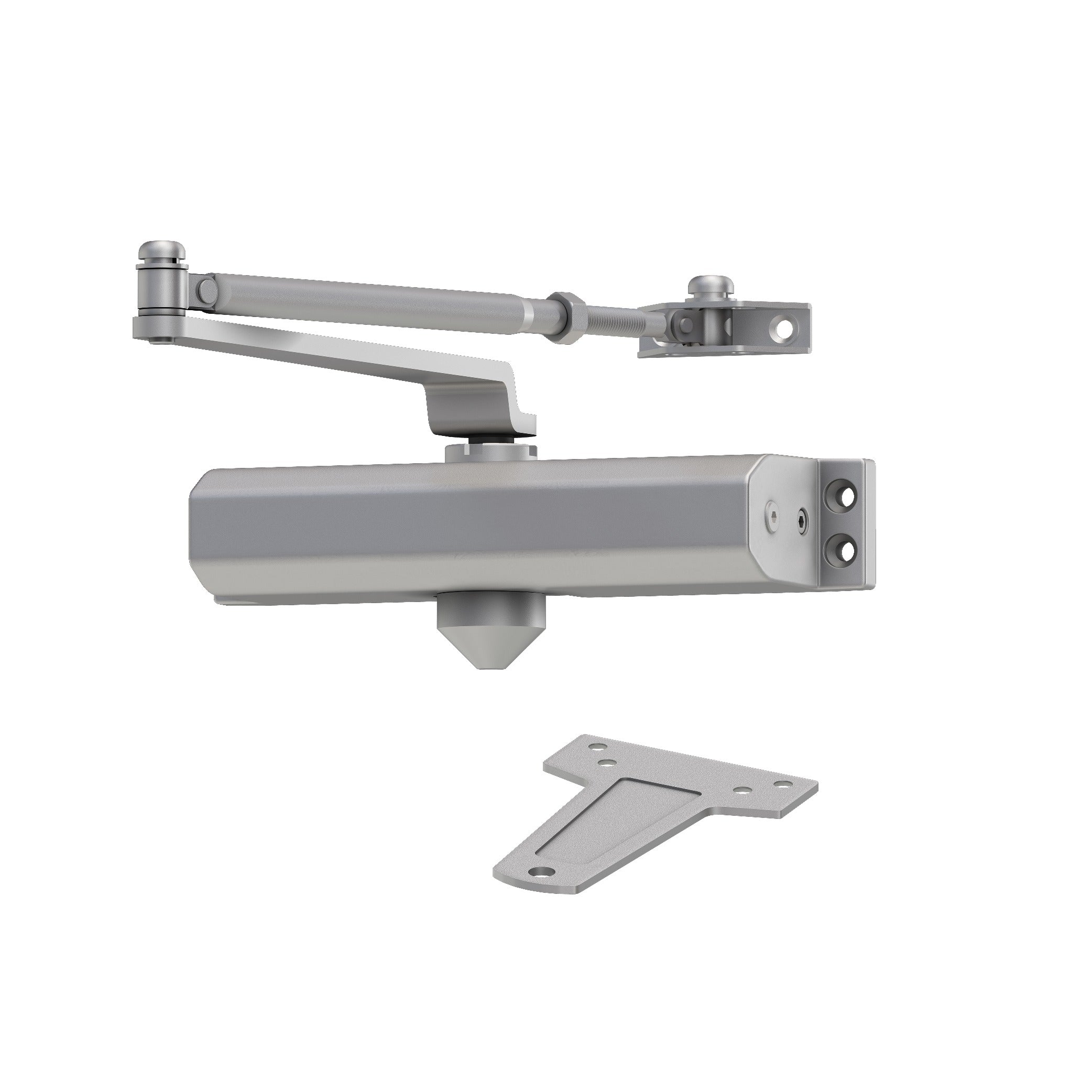

Dexter Commercial DCR8000STDLCRWPA689 Door Closer Regular Arm

Product Description

The DEXTER COMMERCIAL DCR8000STDLCRWPA689 is a residential-duty, surface-mount door closer designed for light commercial and residential entry door applications. It mounts directly to the door face and frame without a separate cover, keeping the installation straightforward for locksmiths and door hardware technicians. The unit ships with a regular arm configuration and an aluminum finish. At 6.2 pounds and measuring 12.3 inches in length, it is a compact, manageable unit suited for single-door installations where a clean, functional closer is required without premium architectural finishes.

This door closer is intended for residential-duty use, making it appropriate for interior and light-use exterior doors in residential buildings or low-traffic commercial settings. The surface-mount design eliminates the need for mortising or concealed pocket routing, reducing installation time. The regular arm configuration suits standard parallel applications where the closer body mounts on the pull side of the door. Locksmiths and door hardware installers handling basic, cost-sensitive jobs will find this unit a straightforward fit for Grade 2 or residential-grade specifications.

Key Features

• Surface-mount installation — no cover plate required, reduces hardware count
• Regular arm configuration for standard parallel-arm or top-jamb mounting
• Aluminum finish suitable for common residential and light commercial door frames
• Residential-duty rating appropriate for low-to-moderate cycle count doors
• Compact footprint at 12.3 inches long, 5.1 inches wide, and 3.6 inches tall
• Sold individually; case quantity of 4 available for multi-door projects

Compatibility

Designed as an OEM-style surface-mount replacement or new-installation closer for residential-duty single doors. No specific model or system compatibility data was provided in the product input.

Installation Notes

Installation is performed by a licensed locksmith or qualified door hardware technician. Before mounting, ensure the door and frame are plumb and the door swing is confirmed to match the arm configuration. Use appropriate fasteners for the door and frame substrate — hollow metal, wood, and aluminum frames each require different anchor types. Follow the door closer manufacturer template for hole placement to ensure correct geometry between the closer body and arm pivot points.
