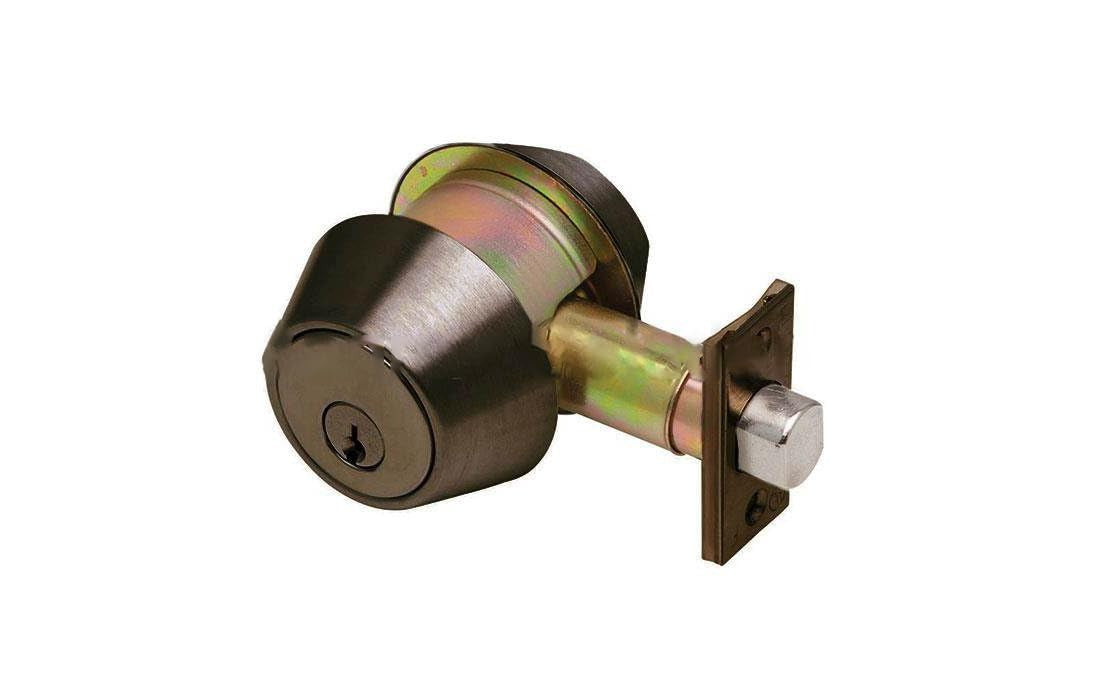

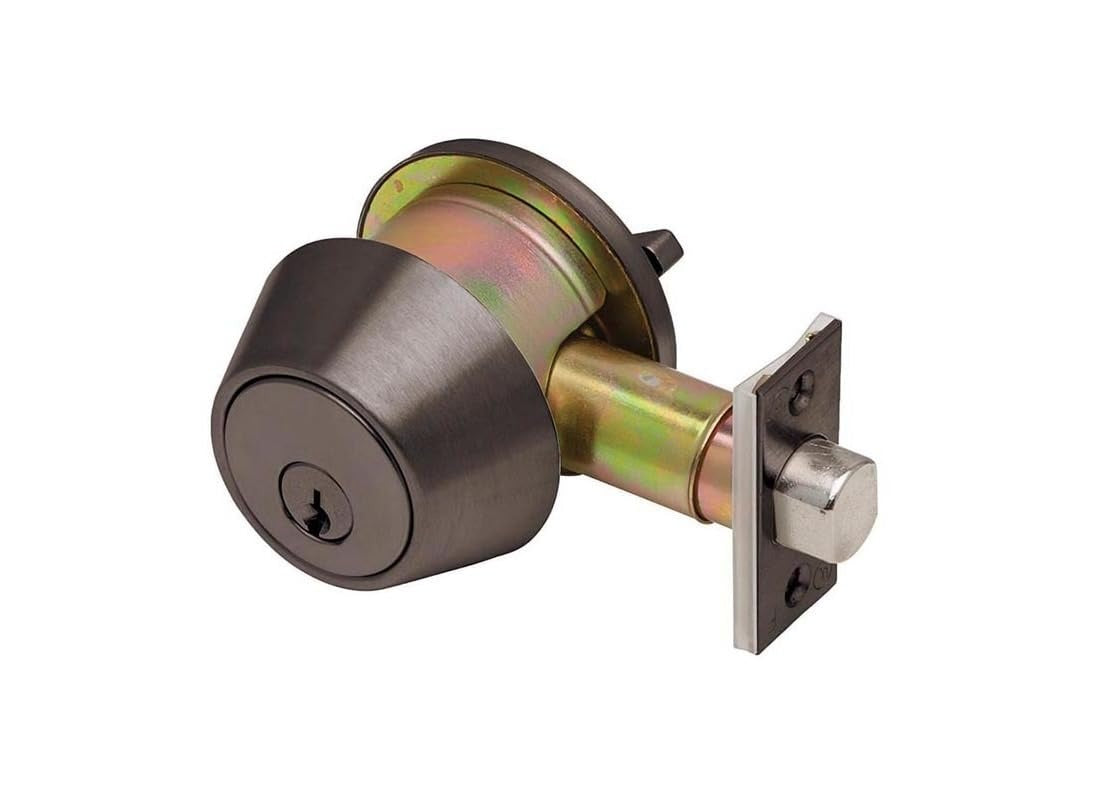

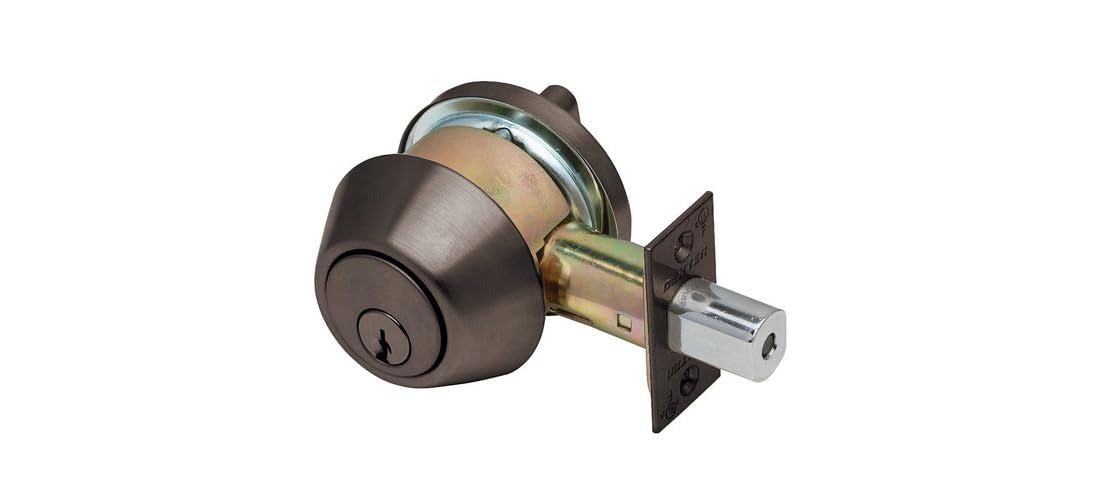

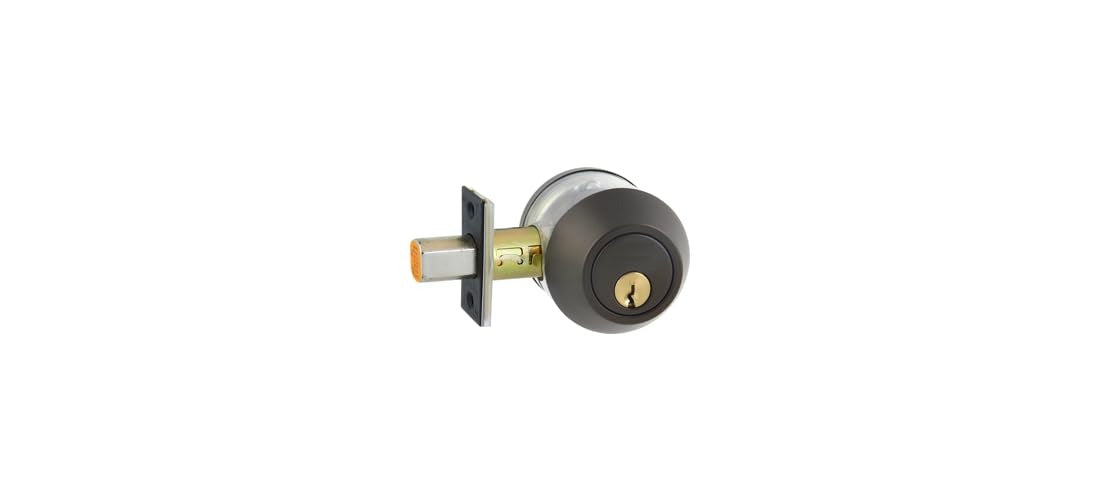

Dexter Commercial DB2000SCT613KDC Grade 2 Deadbolt

Product Description

The DEXTER COMMERCIAL DB2000SCT613KDC is a Grade 2 single cylinder turn deadbolt finished in oil rubbed dark bronze, designed for standard commercial and light-duty door applications. It features a universal 2 3/8 inches to 2 3/4 inches square corner latch and a 1 1/8 inches x 2 3/4 inches square corner lipless strike included in the package. The cylinder door range covers 1 3/8 inches to 1 7/8 inches for standard applications and 1 5/8 inches to 2 3/4 inches for SFIC door prep. Weighing 1.85 pounds, this deadbolt is installed by locksmiths, commercial door hardware contractors, and experienced general contractors working on cost-constrained projects requiring reliable door security.

This deadbolt is suited for commercial and residential door applications where a Grade 2 rated single cylinder deadbolt is specified. The non-UL listed 3-hour rating positions it for standard door applications rather than fire-rated assemblies. The unit accommodates SFIC cores to accept both 6-pin and 7-pin configurations, making it flexible for facilities using small format interchangeable core key systems. Schlage C keyway cylinders are 6-pin, keyed differently from the factory. It is a practical choice for property managers, contractors, and facility maintenance professionals handling volume hardware replacements or new construction on a budget.

Key Features

• Grade 2 rated single cylinder x turn deadbolt construction
• Standard cylinder door range: 1 3/8 inches to 1 7/8 inches; SFIC door range: 1 5/8 inches to 2 3/4 inches
• Universal square corner latch (2 3/8 inches to 2 3/4 inches) and lipless strike included
• Accommodates SFIC cores for 6-pin or 7-pin configurations
• Schlage C cylinders are 6-pin, keyed different from factory
• Oil rubbed dark bronze finish (613) for a consistent, low-sheen appearance

Compatibility

Designed as an OEM-style Grade 2 replacement or new-installation deadbolt for standard commercial and residential door preps. Compatible with SFIC core systems accepting 6-pin and 7-pin cores. Includes universal latch part number 30-253 compatible with standard square corner door preps.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician in accordance with applicable building codes and the door manufacturer's specifications. Verify the door thickness and backset before installation to confirm the correct cylinder and latch configuration. Ensure the door is in a closed and secure position during hardware replacement, and confirm proper latch and deadbolt alignment with the strike before finalizing fasteners. SFIC core insertion and keying should be completed by a credentialed locksmith familiar with small format interchangeable core systems.
