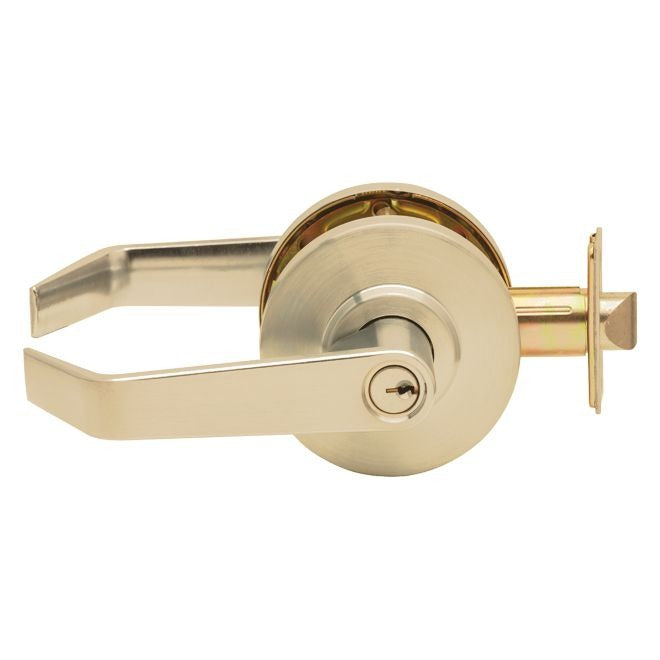

Dexter Commercial C2000STRMR605KDC Grade 2 Cylindrical Lock

Product Description

The DEXTER COMMERCIAL C2000STRMR605KDC is a Grade 2 storeroom-function cylindrical lock designed for commercial door hardware applications. It features a non-clutching regular lever trim and a C keyway cylinder. The lock ships with a 2-3/4 inch backset and an ANSI-standard strike plate in a Bright Brass finish. It is intended for interior storeroom doors where the exterior lever requires a key to retract the latchbolt and the interior lever remains fixed. Installation is performed by licensed locksmiths or commercial door hardware technicians on standard cylindrical prep doors.

This lock is suited for light-to-medium commercial interiors such as storerooms, supply closets, and similar controlled-access spaces. The storeroom function means the outside lever is always locked and operable only by key, while the inside lever is always free for egress. The non-clutching lever design provides straightforward mechanical operation without a torque-release mechanism, keeping the hardware profile simple and cost-effective for budget-conscious commercial jobs.

Key Features

• Storeroom function: outside lever locked at all times, key required for entry
• Non-clutching regular lever trim for simplified mechanical operation
• C keyway cylinder for keying compatibility with common commercial keyways
• 2-3/4 inch backset accommodates standard commercial door prep
• ANSI strike included in Bright Brass (605) finish
• ANSI/BHMA Grade 2 rated for light-to-medium commercial duty

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical lock for commercial interior doors prepped to standard cylindrical bore specifications with a 2-3/4 inch backset.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Verify the door prep matches the standard cylindrical bore diameter and cross-bore dimensions before installation. Ensure the door is in a closed, unlatched position and all related access control wiring is de-energized before beginning work. Follow local building codes and ADA lever clearance requirements when selecting mounting height.
