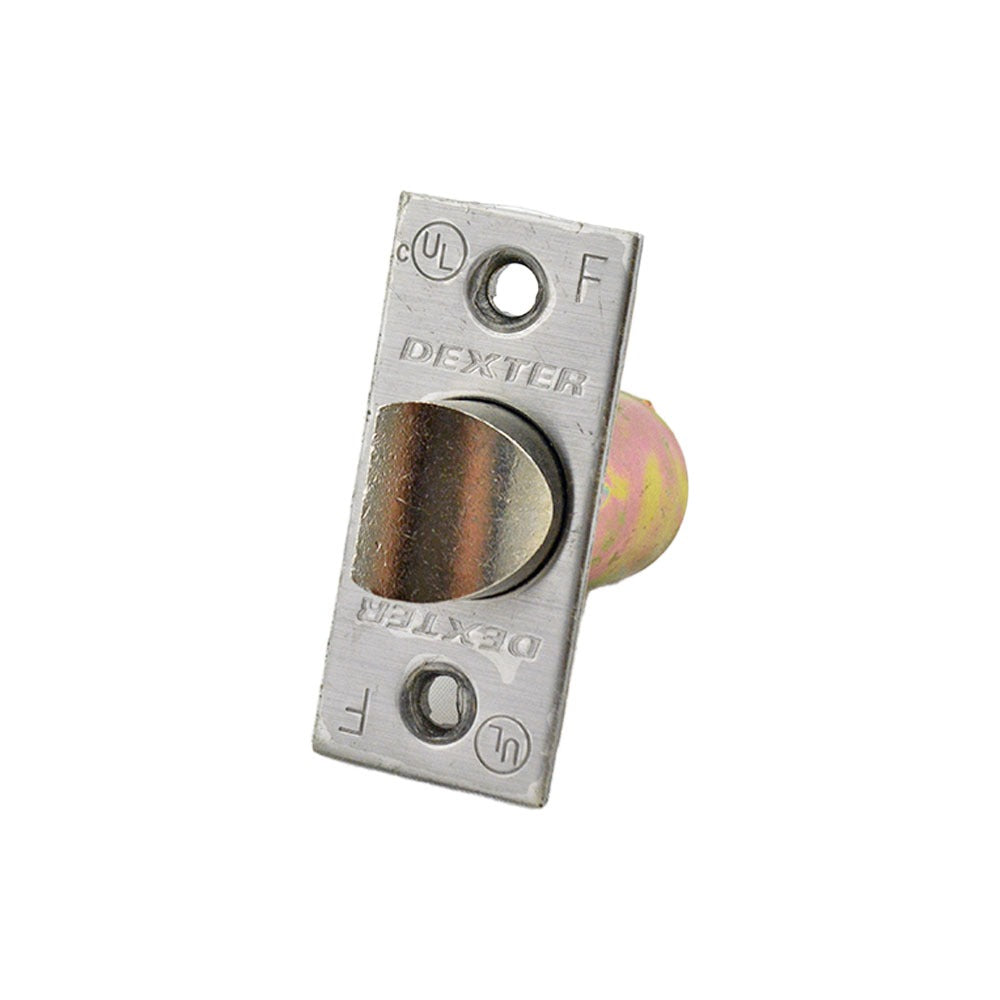

Dexter Commercial C2000SL630 Spring Latch 2-3/8 in Backset

Product Description

The DEXTER COMMERCIAL C2000SL630 is a spring latch designed for passage and privacy door applications in the C2000 Series product line. It features a 2-3/8 inch backset and a satin stainless steel (630) finish. The latch mechanism operates without a keyed cylinder, making it appropriate for interior doors where locking is not required or where a privacy turn-button is used. At 0.3 pounds, this is a compact, lightweight component measuring 2.5 inches in length and 1.5 inches in both width and height. Locksmiths and commercial door hardware installers are the primary trade for this product.

This spring latch is built for use within the DEXTER COMMERCIAL C2000 Series, targeting commercial and light commercial interior door applications. Typical installations include office corridors, restroom doors, and other spaces requiring passage or privacy function. The satin stainless steel finish provides corrosion resistance suited to high-traffic environments. It is sold as an individual unit and is available in case quantities of 20 for larger project needs.

Key Features

• 2-3/8 inch backset for standard door prep compatibility
• Spring latch mechanism supports passage and privacy functions
• Satin stainless steel (630) finish for durability and corrosion resistance
• Compact form factor: 2.5 inches long, 1.5 inches wide, 1.5 inches tall
• Lightweight at 0.3 pounds for easy handling during installation
• Part of the DEXTER COMMERCIAL C2000 Series hardware platform

Compatibility

Designed for use with the DEXTER COMMERCIAL C2000 Series locksets configured for passage or privacy door functions with a 2-3/8 inch backset.

Installation Notes

This latch is typically installed by a licensed locksmith or commercial door hardware technician. Before servicing or replacing a door latch, ensure the door is secured in an open position and all tension on the latch mechanism is relieved. Follow ANSI door prep standards for backset alignment and face bore dimensions. Verify that the strike plate on the door frame is properly aligned with the latch bolt to ensure smooth operation after installation.
