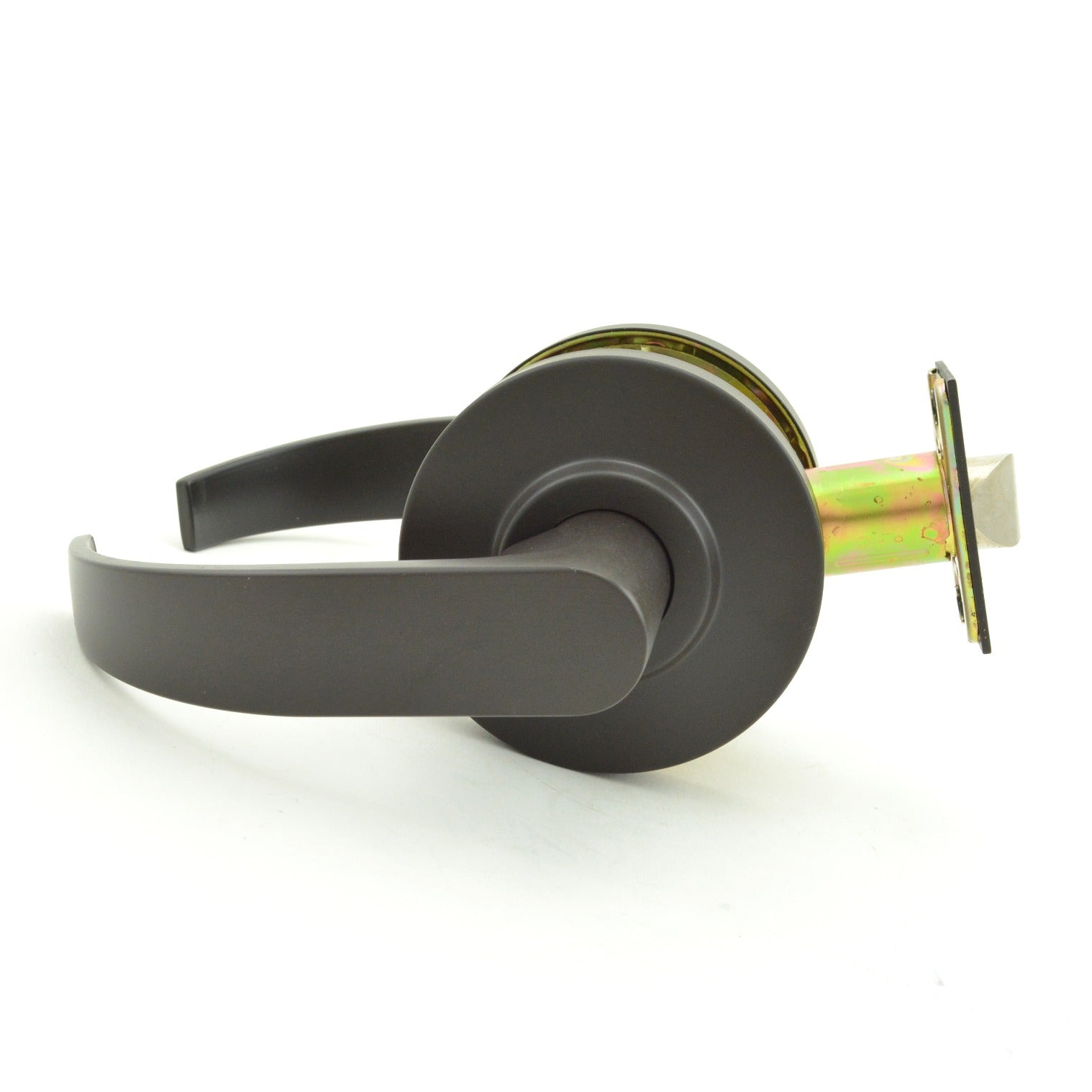

Dexter Commercial C2000PASSC613 Passage Cylindrical Lock

Product Description

The DEXTER COMMERCIAL C2000PASSC613 is a Grade 2 passage cylindrical lock designed for commercial door hardware applications. It features a curved lever in an Oil Rubbed Bronze finish and is built as a non-clutching unit, meaning the lever does not lock — making it appropriate for interior passage doors where free passage is required at all times. The lock ships with a 2-3/4 inch backset and an ANSI strike plate included. It weighs 3.4 pounds and is sold as a single unit. Installation is handled by licensed locksmiths or commercial door hardware technicians.

This lock is suited for interior passage applications in commercial and light commercial buildings — common locations include hallway doors, storeroom corridors, and office interior doors where no locking function is needed. The Grade 2 rating places it in the mid-tier commercial category, appropriate for standard-traffic interior openings. It is sold individually and packaged in cases of 4 for larger orders. The Oil Rubbed Bronze finish suits period-style or darker hardware schemes common in hospitality, retail, and office renovation projects.

Key Features

• Grade 2 cylindrical lock — meets ANSI/BHMA Grade 2 durability standards for commercial interior applications
• Passage function — non-clutching lever provides free passage with no locking mechanism
• Curved lever trim — Oil Rubbed Bronze finish for consistent aesthetic with coordinating hardware
• 2-3/4 inch backset — standard commercial door prep dimension
• ANSI strike included — no separate strike purchase required
• Sold as a single unit (EA) with a case quantity of 4

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical lock for standard commercial interior doors prepped for cylindrical locksets with a 2-3/4 inch backset.

Installation Notes

Installation is performed by a licensed locksmith or qualified commercial door hardware technician. Power down or isolate any electrified hardware in the opening before beginning work. Verify door prep dimensions — backset, cross-bore diameter, and edge-bore diameter — match the lock requirements before installation. Follow ANSI/BHMA and applicable local building code requirements for hardware selection on rated or accessible-route openings.
