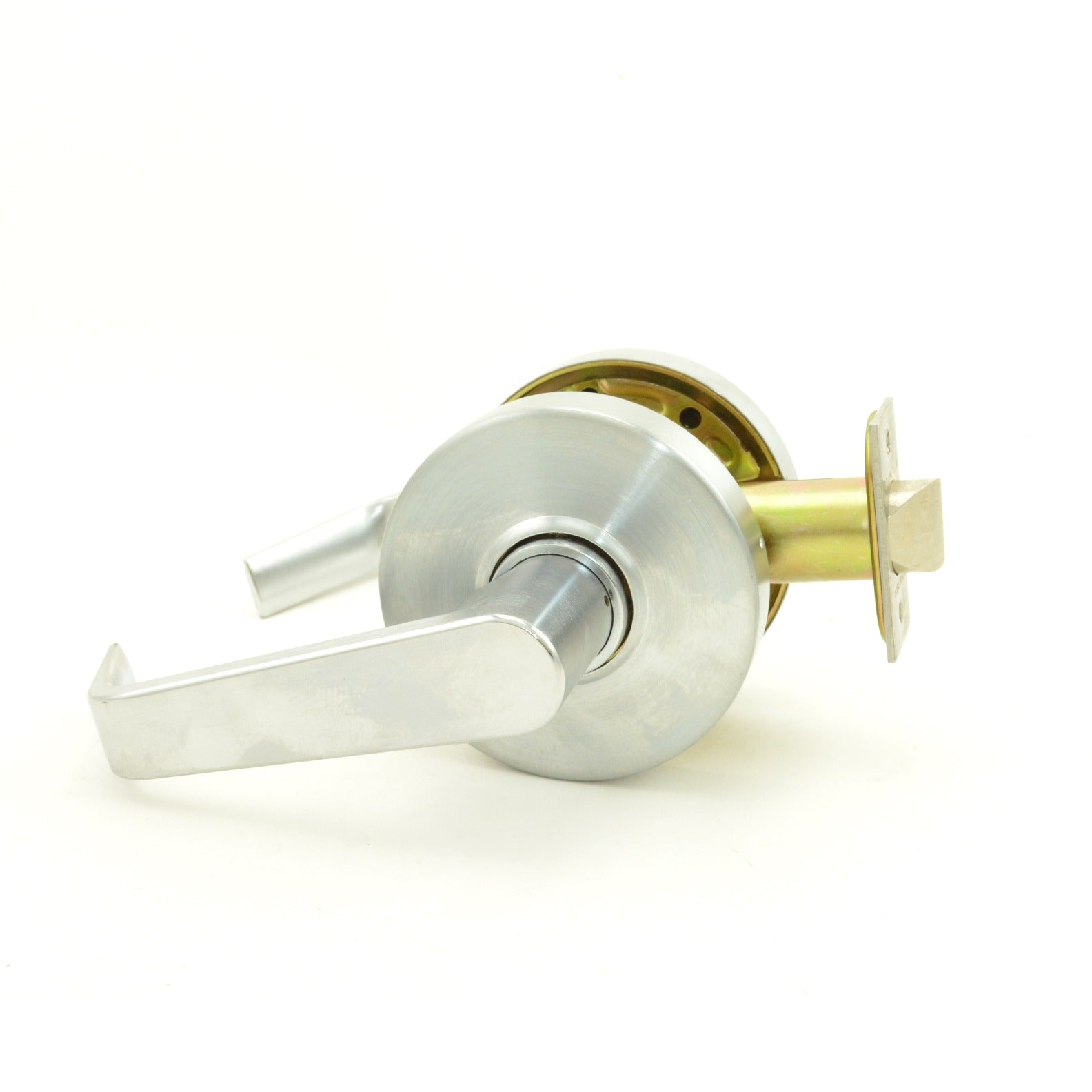

Dexter Commercial C1000PASSR626 Passage Grade 1 Cylindrical Lock

Product Description

The DEXTER COMMERCIAL C1000PASSR626 is a Grade 1 passage cylindrical lock designed for commercial door hardware applications. It features a clutching lever mechanism and ships with a 2-3/4 inch backset and a 1-1/8 inch face plate. The lock is finished in satin chrome and includes an ANSI-standard strike plate. Grade 1 rating meets the highest ANSI/BHMA performance classification for commercial cylindrical locksets, making it appropriate for high-cycle, high-traffic door applications. Licensed locksmiths and commercial door hardware installers are the primary trade handling this product.

This passage lock is suited for interior commercial doors where latching without locking is required, such as hallways, corridors, and common-area doors in commercial and light industrial facilities. The clutching lever design provides added durability under heavy use conditions. The included ANSI strike and standard backset dimension make it compatible with typical commercial door prep specifications found in new construction and retrofit projects.

Key Features

• Grade 1 ANSI/BHMA rating for high-cycle commercial performance
• Passage function with clutching lever mechanism
• 2-3/4 inch backset fits standard commercial door preparations
• 1-1/8 inch face plate included
• ANSI strike plate included
• Satin chrome finish for a clean, professional appearance

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical lockset for commercial doors with standard ANSI prep and 2-3/4 inch backset configurations.

Installation Notes

Installation is performed by licensed locksmiths or commercial door hardware technicians. Verify door thickness and bore diameter comply with the lock manufacturer specifications before installation. Ensure the door is held open and secured before beginning hardware removal or installation. Consult local building codes and applicable ANSI/BHMA standards for commercial door hardware requirements in your jurisdiction.
