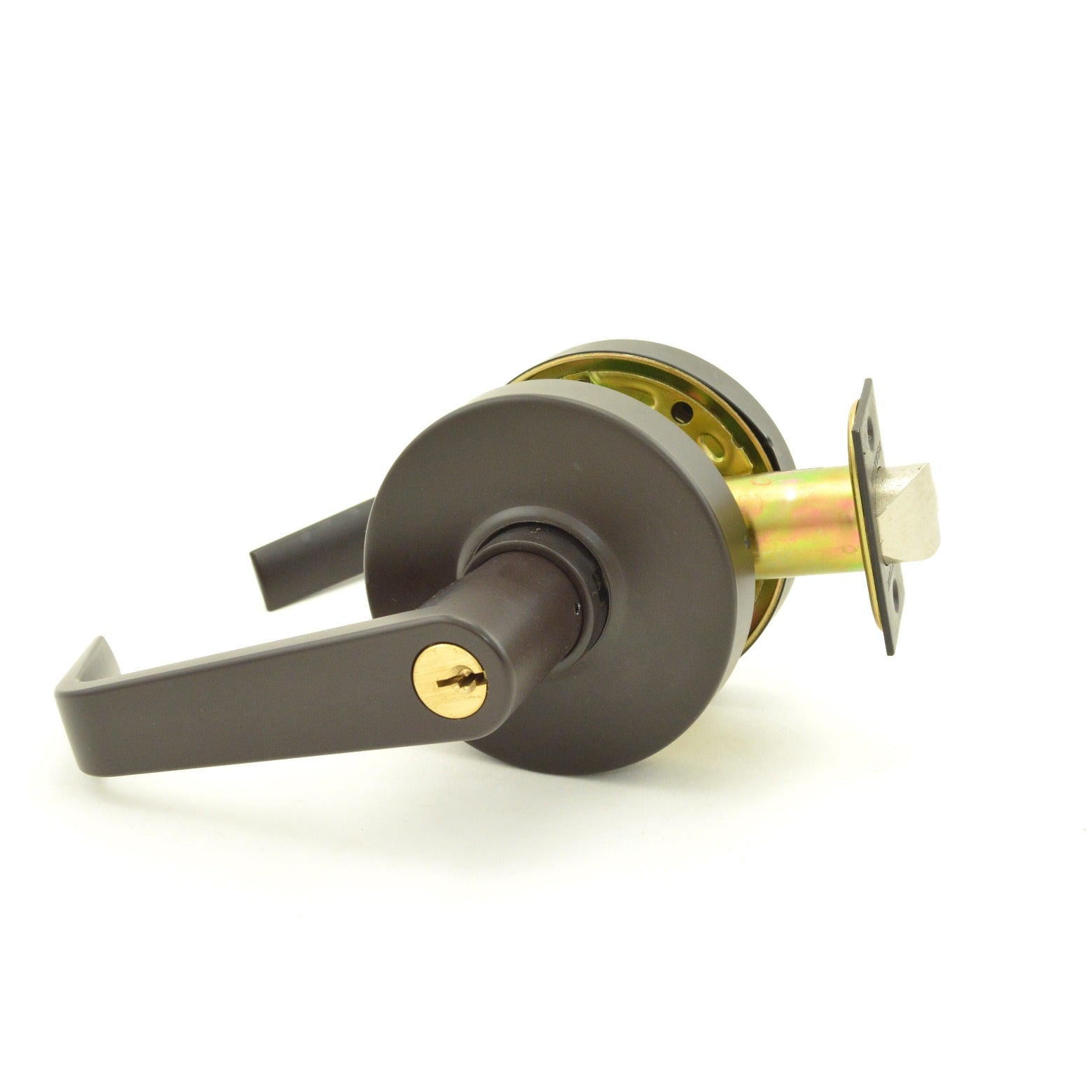

Dexter Commercial C1000ENTRR613KDC Grade 1 Cylindrical Lock

Product Description

The DEXTER COMMERCIAL C1000ENTRR613KDC is a Grade 1 cylindrical lock designed for entry and office door applications. It features a regular lever with a clutching mechanism, which allows the outside lever to rotate freely under forced torque — a key anti-ligature and forced-entry resistance feature. The lock ships with a 2-3/4 inch backset, a 1-1/8 inch face, and an ANSI strike in an Oil Rubbed Bronze finish. The C keyway provides controlled key duplication compatibility. Licensed locksmiths and commercial door hardware installers are the primary trade for this product.

This lock is suited for commercial interior and exterior entry doors and private office doors in light to medium commercial environments. The Grade 1 rating meets ANSI/BHMA A156.2 heavy-duty commercial performance standards, making it appropriate for high-cycle, high-traffic doors. The clutching lever function protects internal components from damage during misuse or vandalism, extending service life in demanding installations. The Oil Rubbed Bronze finish suits commercial renovation and tenant improvement projects where consistent hardware aesthetics are specified.

Key Features

• ANSI Grade 1 cylindrical lock — meets heavy-duty commercial performance requirements
• Clutching lever mechanism — outside lever disengages under forced torque to protect internal components
• 2-3/4 inch backset — standard commercial door prep dimension
• 1-1/8 inch face with included ANSI strike — ready for standard commercial door frame cutouts
• C keyway — compatible with standard C keyway key blanks for controlled duplication
• Oil Rubbed Bronze finish — suited for commercial renovation and tenant improvement specifications

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical lock for commercial entry and office doors prepared to standard ANSI cylindrical lock boring specifications with a 2-3/4 inch backset.

Installation Notes

Installation is performed by a licensed locksmith or qualified commercial door hardware technician. Verify door prep dimensions — bore diameter, cross-bore location, and backset — match the lock specifications before installation. Ensure the door is in a closed, unlatched position and that any existing hardware is fully removed before fitting the new lock body. Follow local building codes and the door manufacturer's hardware specifications for proper function and warranty compliance.
