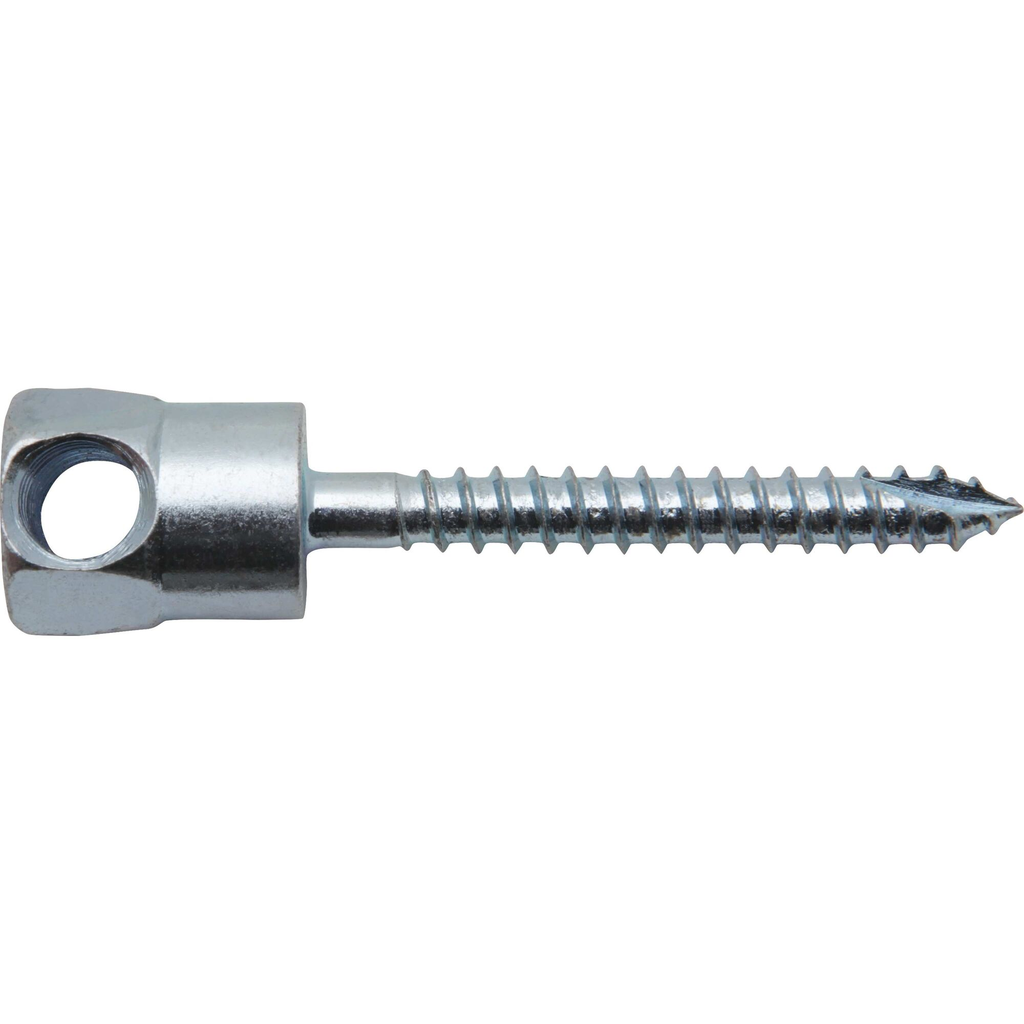

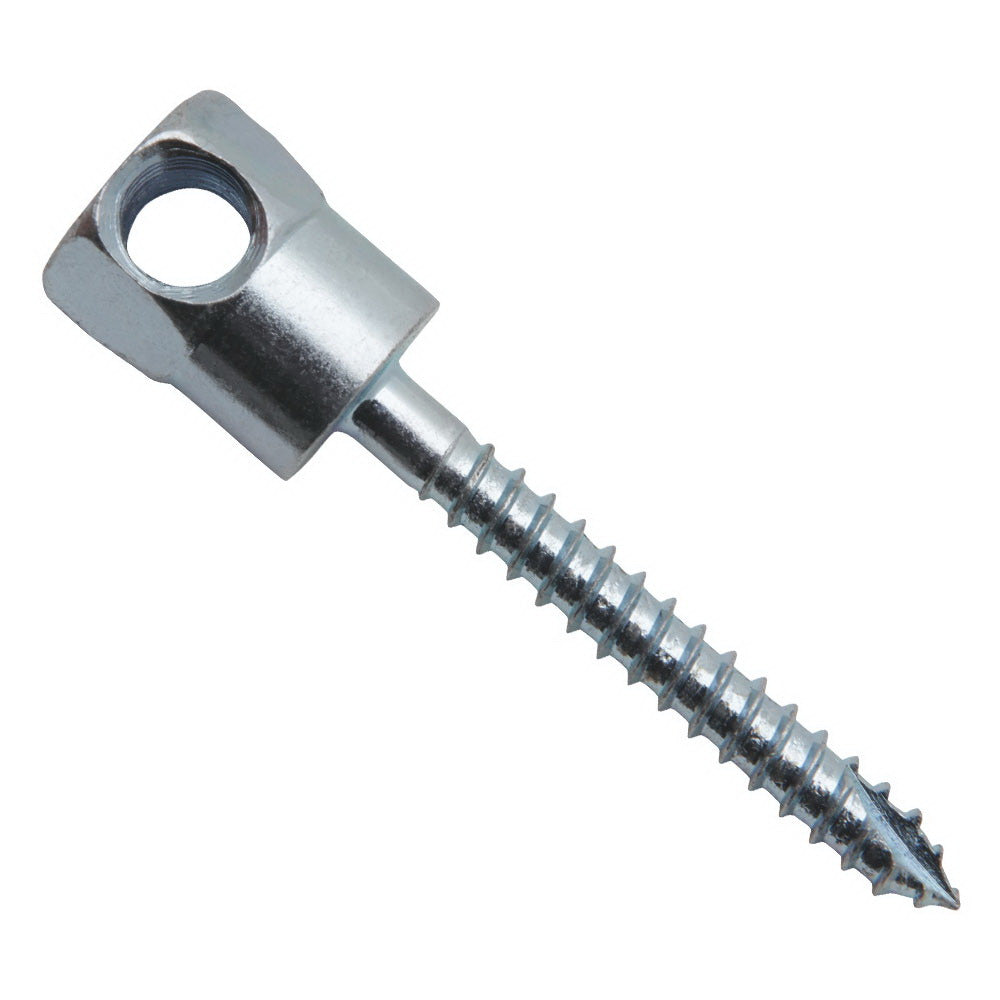

DeWalt PFM2261150 5/16 x 2-1/2 Hangermate Rod Hanging Anchor for Wood, Horizontal, 3/8 Rod (25/Box)

Product Description

The DeWalt PFM2261150 is a steel threaded fastening system designed for vertical suspension of steel threaded rods overhead. Suitable for pipe hanging, fire protection, electrical conduit, and cable-tray applications, this anchor is versatile and can be installed in various base materials.

• Compatible with steel purlins, bar joists, beams, wood frame columns, and concrete.
• Allows vertical suspension of threaded rods in quarter inch and three-eighths inch sizes, with half inch also available for wood.
• Includes side mount style for lateral installation on overhead members.

Product Highlights

This product facilitates ease and speed of installation with a drill screw gun for wood and steel surfaces. A Hangermate Socket Driver is recommended for optimal performance. Concrete installations benefit from using a powered impact tool with a clutch for secure fastening.

Product Information

Standard Information

• Brand: DeWalt
• MPN: PFM2261150

Technical Specifications

• Size: 5/16 inch
• Length: 2-1/2 inches
• Diameter: 3/8 inch
• Shipping Weight: 3.000 lbs
• Country of Origin: Taiwan
• Product UPC: 07535230441
• Maximum Load: 1450 lbs
• Drill Bit Size: 1/8 inch
