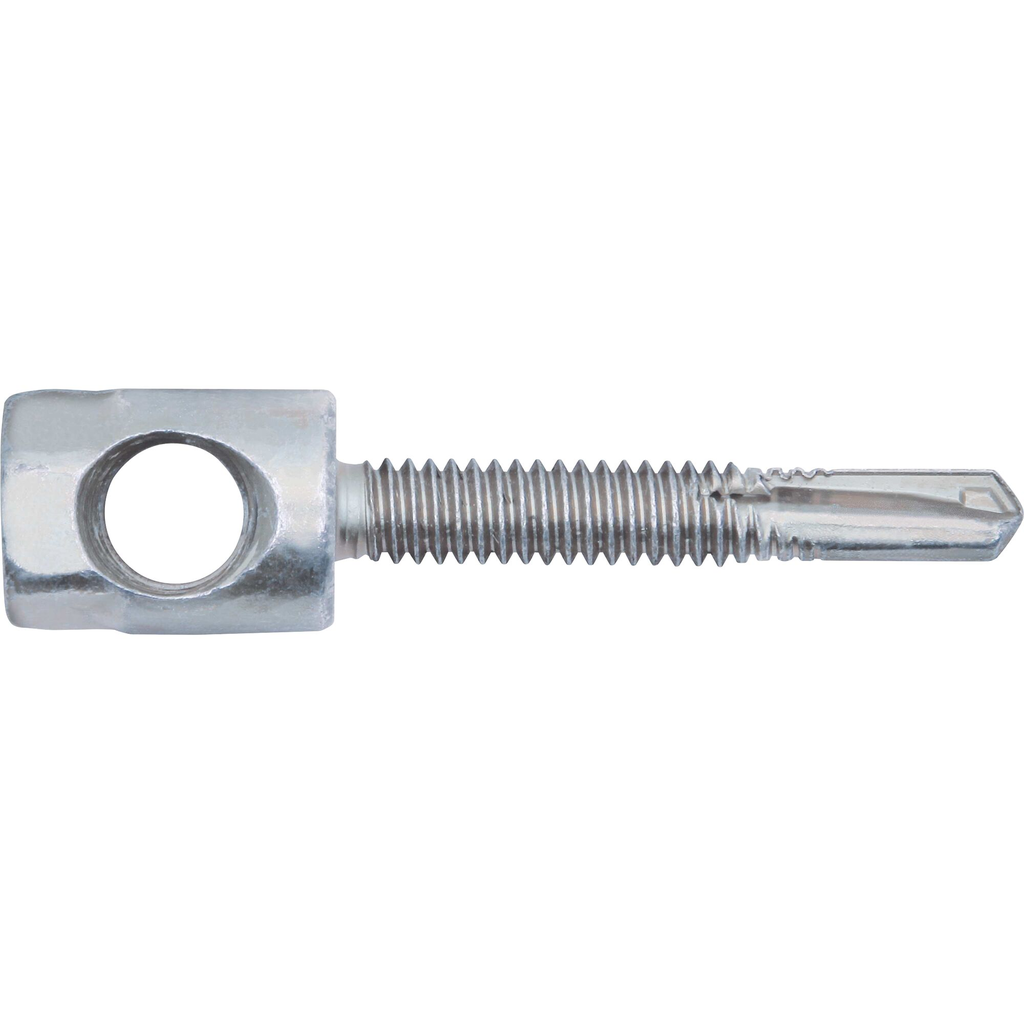

Dewalt PFM224115N 1/4-20 x 1-1/2 inches #3/Nut Hangermate Rod Hanging Anchor for Steel, Horizontal, 3/8 inches Rod (25/Box)

Product Description

The DeWalt PFM224115N Hangermate is an all steel threaded fastening system for suspending steel threaded rod vertically overhead in pipe hanging, fire protection, electrical conduit and cable-tray applications. These anchors are designed for installation in steel purlins, bar joists and beams, wood frame columns and beams, as well as concrete ceilings, beams and columns.

• Ease and speed of overhead installation
• Lower in-place cost, when compared to beam clamps, lag bolts and drop-ins
• Steel and wood Hangermate can be installed with a drill screw gun

Product Highlights

The DeWalt Hangermate provides a reliable method for securely hanging pipes, conduit, ductwork, and other equipment in construction, electrical, HVAC, and plumbing installations.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: PFM224115N
• Country of Origin: Taiwan

Technical Specifications

• Brand: DeWalt
• Manufacturer Part Number: PFM224115N
• Manufacturer: Stanley Black & Decker™
• Product Line: HangerMate
• Product Type: Rod Hanging Anchor w/ Nut
• Material: Zinc Plated Carbon Steel
• Application: Steel
• Mount: Horizontal
• Size: 1/4 in.-20 x 1-1/2 in.
• Rod Diameter: 3/8 in. Rod
• Quantity: Box of 25
• Coupling Thread Size (UNC): 3/8-16
• Coupling Thread Depth (in.): 3/8 in.
• Coupling Height (in.): 3/4 in.
• Socket Driver Size (in.): 1/2 in.
• Load lbs.: See Datasheet
