Dewalt PFM2241100 Hangermate Rod Hanging Anchor 1/4-20 x 1 inches (25/Box)

Product Description

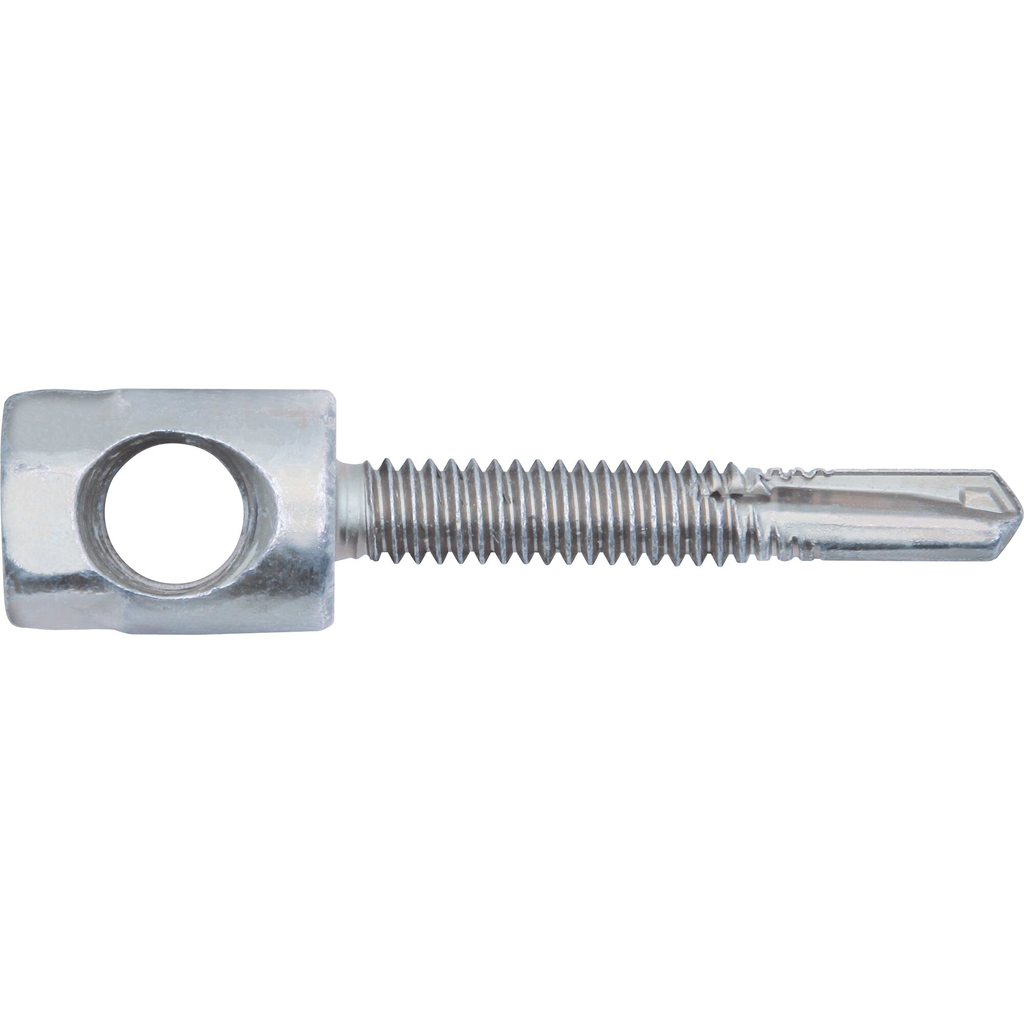

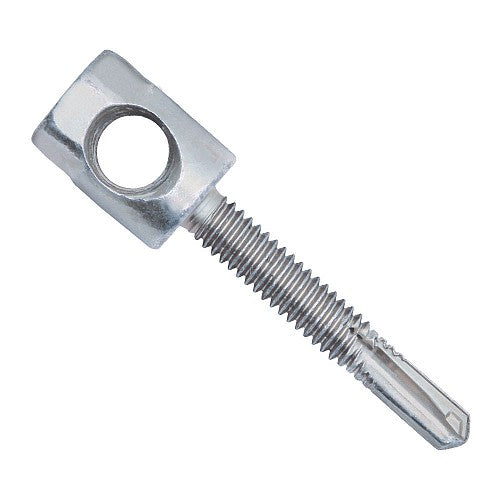

The DEWALT PFM2241100 Hangermate is an all-steel threaded fastening system designed for suspending steel threaded rods vertically overhead. It is suitable for pipe hanging, fire protection, electrical conduit, and cable-tray applications. The Hangermate can be installed in steel purlins, bar joists, wood frame columns, and concrete ceilings. It accommodates steel threaded rods in 1/4" and 3/8" diameters.

• Offers ease and speed of overhead installation.
• Provides a lower in-place cost compared to beam clamps, lag bolts, and drop-ins.
• Can be installed with a drill screw gun.

Product Highlights

All steel threaded fastening system for suspending steel threaded rods. Suitable for various base materials and applications.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: PFM2241100
• Country of Origin: Taiwan

Technical Specifications

• Brand: DeWalt
• Width: 0.240 in
• Height: 0.747 Inch
• Length: 0.971 Inch
• Product Type: Rod Hanging Anchors
• Size: 3/8-1/4-20IN
• Head Type: TEK 3
• Item [Specifications]: Horizontal Rod Hanger Anchor
• Type [Specifications]: Screw Anchor
• Finish [Specifications]: Zinc Plated
• Material: Steel
• Rod Size [Specifications]: 3/8"-16
• Head Dia. [Specifications]: 1/2 in
• Drill Size: 1/4 in
• Point type [Specifications]: #3
• Screw Size [Specifications]: 1/4"-20
• Application [Specifications]: For Installation In Steel Purlins
• Shank Length [Specifications]: 1 in
• Anchor Material [Specifications]: Steel
• Fastener Finish [Specifications]: Zinc Plated
• Rod Hanger Type [Specifications]: Horizontal
• Rod Size - Hangers [Specifications]: 3/8"-16
• Material Application [Specifications]: Steel
• Max. Load Capacity (Lb.) [Specifications]: 2,570 lb
• Catalog Number: PFM2241100
• Description: 1/4-20 x 1" #3
• Rod Diameter: 3/8"
• Mount: Side
• Pack Qty: 25
• Diameter: 1/4"
• Diameter-Thread Size: 1/4"-20
• Measurement Type: Inch
• Package Quantity: 25
• Package Size: Package
• Point: #3
